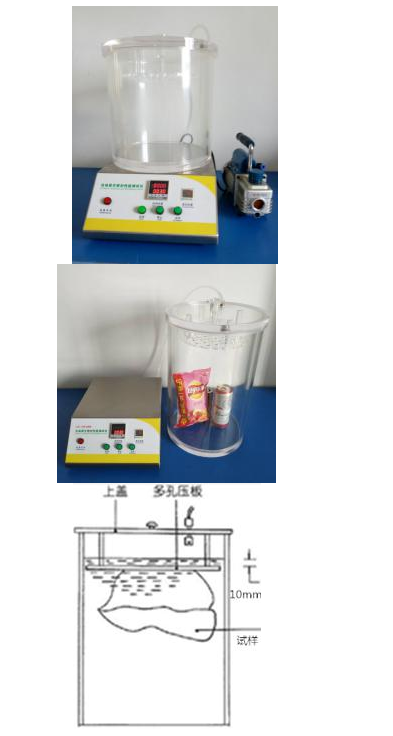

GX-MF1000 Full Automatic Vacuum Sealing Performance Tester

The GX-MF Vacuum Sealing Performance Tester is a high-performance, cost-effective sealing performance tester with an elegant appearance. The housing is made of high-quality stainless steel, and all air sealing components are imported from Germany. The automatic control components are from Japan, offering superior sealing performance compared to domestic models. It features automatic disconnection of vacuum extraction, automatic pressure compensation, automatic prompt for test setting time, and long-term maintenance of the set vacuum value. The vacuum indicator control gauge is a genuine Japanese product, and the timer controller is a brand from an imported joint venture, providing high vacuum and timing accuracy with superior performance. It conforms to standards such as GB/T 15171 "Test Methods for Sealability of Flexible Packaging" and ISO.





High-quality products must have: clear barrel body, reinforced lid, no photo editing, reliable viewing with videos! Fully automatic machine

System Parameters: (See video operation, welcome to request the video)

Fully Automatic Digital Display Sealing Gauge, arrives at set pressure, automatically stops, no operation required, automatic air replenishment, automatic timing, automatic backflush

Devotedly checking for any leaks in the product, it's currently the most cost-effective choice available!

Vacuum Drum Indicator Range: 0 to -100 kPa, Display Resolution: 0.1 kPa. Accuracy: 1%.

Vacuum extraction with automatic disconnection, automatic pressure compensation, and automatic prompt for test setting time.

Timing control range: 0~9999 seconds, adjustable at will, with a resolution of 1 second.

Test Setup: Any setting, factory-set to 30 seconds at initial shipment.

Power: 220V/50Hz

Exhaust pipe: 8mm high-quality imported Taiwan TPU tube

Power Safety Protection: Equipped with power safety protection measures.

Sealing Performance Standards: Compliant with national and international standards: ISO, GB/T 15171, ASTM D3078

Effective Vacuum Chamber Size: 300mm x 300mm (H) (Standard) / 300mm x 350mm (H) (Standard)

300mm x 360mm (H) (Standard) / 300mm x 400mm (H) (Optional)

400mm x 300mm (H) (optional) 500mm x 400mm (H) (optional)

600mm x 300mm (H) (optional) | 600mm x 500mm (H) (optional)

Main unit dimensions: 490*300*250

Note: Other heights for the 600mm vacuum chamber and other special shapes, as well as special sizes, can be customized according to customer requirements.

Net Weight: 19kg

Configuration: Host unit, waterproof sticker, sealing bucket, sealing ring, sealing cap, wire, rubber cup, instruction manual, certificate of conformity, warranty card. Each item included: 1 piece.

Tubes, 2 pieces.
