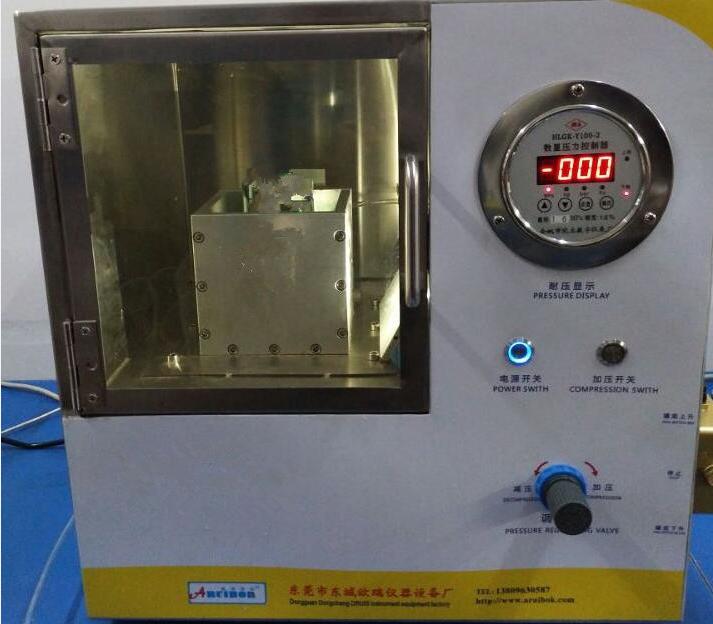

GGDY-2000 Bottle Burst Pressure Tester (Tester)



Product Applications

Overall burst and crack resistance test suitable for glass bottles, tubes, cans, and PET (plastic) bottles

Comprehensive testing for plastic bottles, tubes, cans, boxes, and bags

Integrative testing for metal bottles, tubes, cans, and boxes

Also suitable for testing paper-plastic composite bags, boxes, tubes, and other products requiring burst pressure tests.

Product Features

The testing machine boasts reliable performance, durability, high accuracy of test values, cost-effectiveness, ease of use, and other features.

The testing machine is suitable for pressure burst tests on various bottles and cans.

The monitor uses high-quality red light display, with units such as mpa, kg, pa, etc., defaulting to mpa. Generally, a display unit is chosen based on the unit of use requirement (this unit is set to Mpa).

Pneumatic components are made with internationally renowned imported parts, ensuring stable and reliable performance.

Technical Specifications

1. High Test Force: 2.5 Mpa, higher pressure available upon request.

2. Machine's measurement range: 3.0 Mpa

3. Test Force Accuracy: ±1.5%

4. Measuring Resolution: 0.05 Mpa

6. Appearance: Meets the requirements of GB/T2611

7. Standard Requirements: This series of testing machines conforms to national, European, and American standards and can be tested by a third-party.

8. Testing Machine Dimensions: 570mm x 405mm x 520mm (height varies according to bottle height)

9. Power Supply: 220V, 50Hz

10. Net Weight: 53.5 kg

The GGDY-2000 bottle burst pressure tester features a microcomputer-based automatic controller with automatic test time control and automatic shutdown upon reaching the required test pressure. It has functions for automatic timing and test termination, as well as recording burst pressure and automatically completing the test timing. This ensures the accuracy of test data.
