GX-GH-200

Integrated罐front-end dimension inspection instrument (Customer can customize the optional accessories according to their own requirements)



Applicable Standards: GB/T 9106.1-2009, GB/T 17590-2008

GX-GH-200 can front and rear comprehensive dimension tester, measures the flange width, inner diameter of the can mouth, height, diameter, bottom diameter, inner diameter of the bottom, lid diameter, wall thickness, bottom arch depth, and more for 2 to 3 cans. High precision, no adjustment required. It is an essential measurement instrument for scientific research institutions, testing agencies, can manufacturers, food and beverage, seafood can industries, superior to other testing methods, and currently the most comprehensive measurement instrument for can front and rear measurement projects globally.

No adjustment needed, fits samples cans of various heights and diameters.

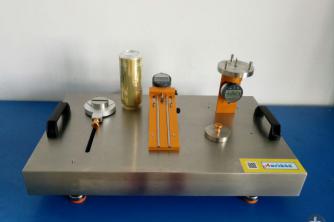

Front-end Can Comprehensive Dimension Tester

Technical Specifications:

Cylinder height range: 0-300mm (expandable)

Internal diameter range of the can: 50-200mm (expandable)

Bottle diameter range: 0-200mm (expandable)

Bottom arch depth: 0-25mm

Can size thickness, flange width: 0-10mm

Bottom diameter, Lid outer diameter, Bottom inner diameter range: 0-200mm (extendable)

Other size measurements; all meet national standards and ISO, international standards.

Resolution: 0.005mm / 0.01mm

Accuracy: ±0.01 mm ± 1 digit
