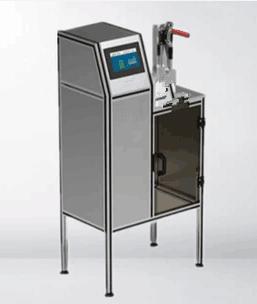

Glass Bottle Internal Pressure Resistance Tester

The equipment is equipped with comprehensive testing functions, allowing for both pressure increase and pressure maintenance tests as required by national standards. This facilitates users in selecting testing methods. The testing accuracy is high, with a wide measurement range, and pressure readings can reach 0.01Mpa, with a testable pressure up to 6.00Mpa, meeting users' higher testing requirements. The testing speed is fast, with the inflation time for each bottle not exceeding 10 seconds, averaging around 4 seconds for routine tests (with an endpoint pressure of 1.60Mpa). This helps users enhance their testing work efficiency. The equipment has a high degree of automation, featuring automatic pressure increase, pressure maintenance, automatic pressure release upon test completion, and automatic alarm prompts for equipment operation failures. All critical components are imported, ensuring high reliability and significantly extending the equipment's service life.


The instrument complies with the national standards: GB/T 4546-2008 ISO/CD7458



Technical Specifications





Index

Parameters

Determine pressure range

0.50-6Mpa

Pressure Resolution

0.01Mpa

Pressure Test Error

Less than 1.5% F.S.

Bottles measured per minute

Approximately 8-10 pieces

Rise Rate Error

Less than 5%

Bottle Neck Clamp Diameter

24-26 (standard beer bottle size; other sizes available upon customization)

Ambient Temperature Range

0～40℃

Relative Humidity Range

Less than 95% relative humidity

Power Voltage Range

220 VAC ±5% (ground must be good)

Product Configuration





Standard Configuration: Main Unit, Bottle Clamp for Φ24～26 Neck, Plastic Flexible Hoses
