GXVMS-V8A Automatic Edge Wrapping Projector (Double Sealing Inspection Device) (Welcome to Watch the Video for Usage Instructions)

This product owns independent intellectual property rights and holds software copyrights/patents.

Our products are manufactured in accordance with national standards, possess complete independent intellectual property rights, and the company assumes full legal responsibility.





GXVMS-V8A Auto-Edge Wrapping Projector is designed for measuring the quality of drum edge wrapping. It completes measurements automatically, ensuring high efficiency, accuracy, and ease of use, thereby avoiding human errors. Equipped with an advanced optical system and high-quality imported lenses, it achieves image clarity at world-class levels, making it an efficient, accurate, and high-quality edge wrapping projector. The external data collection system allows for the automatic transmission of real edge thickness and other measurement data to the computer.

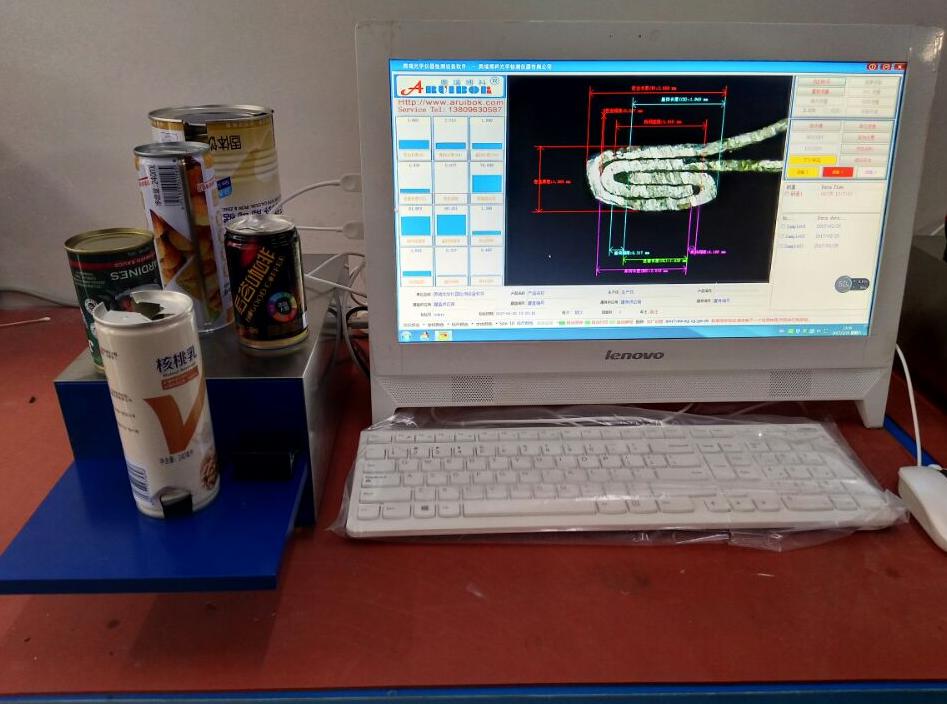

Equipped with a microcomputer processor, a color LCD display, measurement lens, measurement board, keyboard, mouse, and calibration block, etc.

The GXQ-2 ultra-quiet rolled edge cutting machine can be paired to handle both cutting and measurement.

Technical Specifications:

Resolution: 0.001mm, Accuracy: 0.003mm

2. Voltage: 220V (V) 50Hz

3. Dimensions: 500*320*150 (mm)

4. Magnification: --60×; Spot Magnification: --180×

5. Utilizing imported brand lenses, the image clarity reaches world-class standards (refer to the software interface's rolled cover image).

6. Inspection Items: Complementary to test 16 corresponding items -- edge length, can body hook length, can lid hook length, overlap length, edge gap length, overlap rate, can body hook overlap percentage, lid hook overlap percentage, image edge thickness, actual edge thickness*, actual countersink depth*, tightness*; etc., plus: measurement of iron can welding seams

7. Software integrated SPC functionality, automatic calculations, robust database with 5-year data retention, accurate edge thickness, and real埋头 depth; the database saves each cross-sectional measurement result and image for easy retrieval, offering a variety of statistical charts for automatic quality analysis of products; users can customize report formats to match their company's style and specifications; previously saved edge sealing images can be retrieved at any time for re-measurement; each measurement can automatically save results to an Excel spreadsheet.

8. Save and print edge images and data for easy communication with the production department or can factory, eliminating the need to keep sample cans.

9. Provide calibration blocks for on-demand instrument calibration to ensure measurement accuracy; utilize the durable monochromatic light source, which is more long-lasting than comparable products.

10. Add: Iron Can Weld Seam Measurement
