GX-ZZ-10-S Standard Version Vertical Deviation Measuring Instrument (Can measure both square and circular shapes)

Product Application:

GX-ZZ-10-S Standard Version Vertical Axis Deviation Measurer is a professional instrument developed by our company for measuring the vertical axis deviation of glass bottles, PET bottles, and bottle blanks. It is designed to measure the vertical and vertical deviations of products such as bottles, cans, drums, round, and square items, in accordance with GB12415-90, GB2641-90, GB2640-90, GB2639-90, etc.

Custom-designed testing equipment. The GX-ZZ-10-S Vertical Axis Deviation Measuring Instrument is equipped with precise fixtures and a specialized precise digital indicator (displaying to the thousandth place), featuring a simple yet practical structure and accurate, reliable measurement values. It is the ideal testing instrument for bottle manufacturing companies and beverage and food processing enterprises.

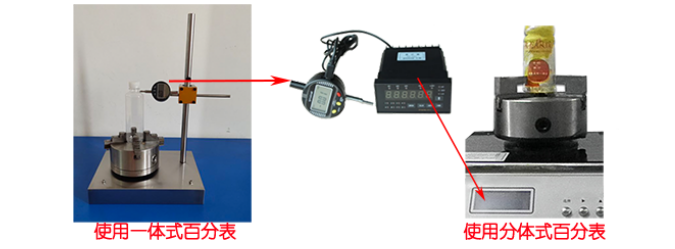

Advantages and disadvantages of integrated and split-type percentage gauges:

Advantages of the Split-Type Dial Indicator:Looks upscale.Disadvantages:It's not convenient to observe the bottleneck and the contact point with the dial gauge.Advantages of Integrated Dial Indicator:Easier to observe the contact between the measuring head and the neck of the bottle, and to read the measurement data without having to bend down.Shortcomings:It doesn't look upscale.

Features of this unit:

1. Crafted with stainless steel countertops, easy to clean and rust-resistant. Superior to other painted spray processes.

2. Height adjustment at test bottlenecks, with free rotation for easy and convenient use.

3. Our company employs an advanced rotary adjustment method, without regard to cost. It outperforms the outdated method of manual height adjustment using a single or double rod, which requires constant up and down movement. (This feature is available in the luxury version.)

4. Rotating height adjustment for easy selection of any point, flexible and convenient to use. (Feature available in the Luxury version.)

5. The test sheet is presented numerically. The numbers are clear and easy to read.

6. Offer installation, debugging, and training services for instruments.

After-sales Service:Our instruments come with a one-year warranty and lifetime maintenance.

Meets Standards:

GB12415-90, GB2641-90, GB2640-90, GB2639-90, GB/T8452-2008, ISO9008:1991

Technical Specifications:

All-digital LCD display, Digital display

Digital Gauge Range: 0-12.7mm (Instrument Probe Displacement Range)

Digital graduation value: 0.01mm (0.001mm available upon request)

GX-ZZ-10-S Basic Version (Measurement for Bottles and Bottles Preforms Under 600mL)

Bottle height range: 15-400mm (extendable)

Bottle Diameter: 5-120mmAvailable in larger diameter sizes, the luxury version is the GX-ZZ-10+.)

Measure drum height: Any height
