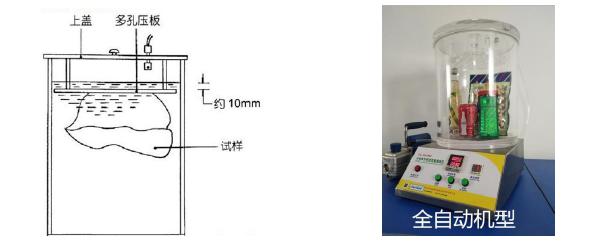

GX-MF1000 Automatic Vacuum Sealing Performance Tester (Welcome to watch the video for usage instructions)


The GX-MF300 Vacuum Sealing Performance Tester is a highly superior and cost-effective sealing performance tester, with an elegant overall appearance and a shell made of high-quality 316 stainless steel. All air sealing through parts are made of German imports, and the automatic control components are from Japanese imports. Its sealing performance exceeds domestic models, featuring automatic vacuum extraction cutoff, pressure automatic compensation, automatic prompt for test setup time, and long-term maintenance of the set vacuum value. The vacuum indicator control gauge is a genuine Japanese product, and the timer controller is from an imported joint venture brand, with high vacuum and timing accuracy, and excellent performance.






System Parameters:


Vacuum Indication Range: 0 to -100 kPa, Display Resolution: 0.1 kPa.


The vacuum pump installed in this unit can, in principle, pull vacuum to over -85kPa, -90kPa. For machines capable of -85 kPa vacuum extraction, a professional kit from our company is required! Vacuum extraction automatically disconnects, pressure compensation is automatic, and test setup time is automatically prompted.


Timing Control Range: 0~9999 seconds, adjustable at will, display resolution 1 second.


The test setup takes 10 to 3 minutes. The machine is factory-set to 30 seconds.


Power Supply: 220V/50Hz, Exhaust Pipe: Φ8mm Taiwan Imported High-Quality Polyester TPU Tube


Power Safety Protection: Equipped with power safety protection measures.


Sealing Performance Standards: Compliant with national and international standards: ISO, GB/T 15171, ASTM D3078


Effective Vacuum Chamber Dimensions:


300mm x 200mm (H) (Standard) | 300mm x 250mm (H) (Standard)


300mm x 300mm (H) (standard) / 300mm x 380mm (H) (optional)


400mm x 300mm (H) (Optional) | 400mm x 400mm (H) (Optional)


600mm x 300mm (H) (optional) 600mm x 500mm (H) (optional)


Note: Other heights for the 600mm vacuum chamber and other special shapes, as well as special sizes, can be customized according to customer requirements.


Power Source: 220V/50Hz


Exhaust pipe: 8mm high-quality imported Taiwan TPU (Thermoplastic Polyurethane) tube


Power Safety Protection: Equipped with power safety protection measures.


Net Weight: 19 kg
