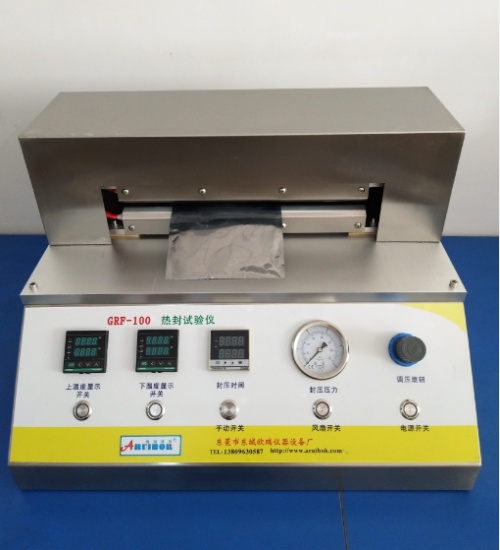

GRP-100 (HFT-H3) Heat Seal Tester


This product utilizes hot-press sealing methods to measure parameters such as sealing temperature, sealing time, and sealing pressure for plastic film substrates, composite soft packaging films, coated papers, and other heat-sealed composite films. Different sealing materials with varying melting points, thermal stability, fluidity, and thickness exhibit distinct sealing properties, and their sealing process parameters may differ significantly. The heat-sealing tester, with its standardized design and regulated operation, enables the acquisition of heat-sealing test indicators.


Product Features of Heat Sealing Tester:


Brand new design, crafted from premium stainless steel, durable and long-lasting.


2. Microcomputer control, liquid crystal display


3. Menu-driven interface, PVC operating panel


4. Digital P.I.D. temperature control, high temperature accuracy


5. Manual and pedal dual test start modes


6. Top-Down Heat Seal Head with Independent Temperature Control


7. Specialized stainless steel uniform temperature heating tubes, long service life


8. Quick disconnect heating tube power connector


9. Burn-Proof Safety Design


Hot Sealing Tester Technical Parameters:


1. Heat Sealing Temperature: Room temperature to 300°C, Accuracy (±0.1°C)


2. Heat Sealing Time: 0.01s - 99.9s


3. Heat-seal Pressure: 0.05 MPa to 0.7 MPa


4. Heat-seal Area: 300mm x 10mm (Other sizes available upon request)


5. Heat Sealing Heating Type: Double Heating (can heat separately up and down)


6. Gas Source Pressure: ≤0.7 MPa


7. Dimensions: 530(L)mm x 400(W)mm x 350(H)mm


8. Power: AC 220V 50Hz


9. Weight: Approximately 32 kg


Heat Sealer Tester Standard Configuration: Main Unit, Foot Switch


Standard: QB/T 2358(ZBY 28004), ASTM F2029, YBB 00122003


National Standard for Heat Sealing Tester: QB/T 2358 "Test Methods for Heat Sealing Strength of Plastic Film Packaging Bags"


Heat Sealing Tester: QB/T 2358, Heat Sealing Tester, Heat Sealing Apparatus, Heat Sealing Machine, Bilateral Heat Sealing Machine, Heat Sealing Tester, Three-Point Heat Sealing Tester
