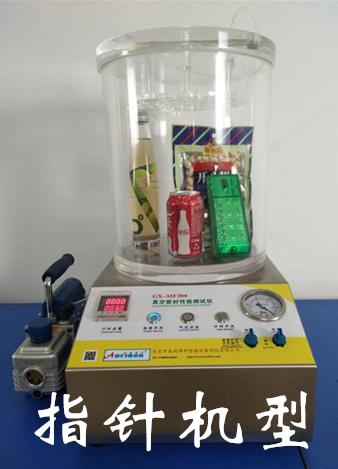

GX-MF300 Pointer-Type Vacuum Sealing Performance Tester


This product owns independent intellectual property rights and holds software copyrights/patents.


The GX-MF Vacuum Sealing Performance Tester is an excellent sealing performance tester with superior performance and cost-effectiveness. The整机 has an elegant appearance, with the housing made of high-quality stainless steel. All air-sealed components are imported from Germany, ensuring superior sealing performance compared to domestic models. It features test setup time prompts and maintains the set vacuum value for extended periods. The timing controller utilizes an imported joint venture brand, offering high vacuum and timing accuracy with superior performance. It complies with GB/T 15171 "Test Methods for Sealing Performance of Flexible Packaging," ISO, and other standards.


(See video instructions, videos available upon request)


High-quality products must have: Clear barrel body, reinforced lid, no photo editing, reliable viewing through video! This machine is a manual pointer sealing gauge, does not have pressure settings, requires manual operation, beware of scams, our original product.


System Parameters:


Vacuum gauge measurement range: 0～-100 kPa, display resolution: 0.1 kPa, accuracy: 1%.


Timing control range: 0-9999 seconds, adjustable at will, with a display resolution of 1 second.


Test Setup: Any setting, factory-set to 30 seconds on this unit.


Power: 220V/50Hz


Exhaust pipe: 8mm high-quality imported Taiwan TPU (Thermoplastic Polyurethane) tube


Power Safety Protection: Equipped with power safety protection measures.


Sealing Performance Standard: Meets National and International Standards: ISO, GB/T 15171, ASTM D3078


Effective Vacuum Chamber Dimensions:


300mm x 300mm (H) (Standard) 300mm x 350mm (H) (Standard)


300mm x 360mm (H) (standard)  300mm x 400mm (H) (optional)


400mm x 300mm (H) (Optional) 500mm x 400mm (H) (Optional)


600mm x 300mm (H) (optional)  600mm x 500mm (H) (optional)


Mainframe dimensions: 490*300*250


Note: Other heights for the 600mm vacuum chamber and other special shapes, as well as special sizes, can be customized according to customer requirements.


Net Weight: 19 kg


Configuration: Host unit, waterproof sticker, sealing drum, sealing ring, sealing lid, wire, rubber cup, instruction manual, certificate of conformity, warranty card. Each item included: 1 piece;气管: 2 tubes.
