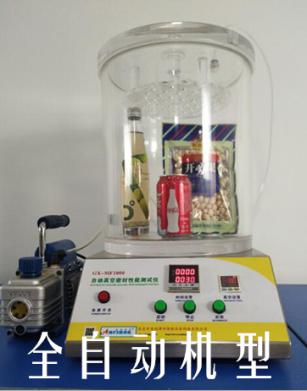

GX-MF2000 Mobile Automatic Vacuum Sealing Performance Tester


This product owns proprietary intellectual property and holds a software copyright patent certificate.


GX-MF2000 is available in sizes of 300mm, 400mm, 500mm, 600mm, etc., representing the diameter of the sealed drum or square.


The GX-MF series vacuum sealing performance tester is a highly efficient and cost-effective sealing performance tester, with an elegant appearance and a shell made of high-quality stainless steel. All air-sealed components are imported from Germany, and the automatic control components are from Japan, ensuring superior sealing performance. The vacuum extraction automatically disconnects, pressure is automatically compensated, test settings are automatically prompted, and the vacuum value is maintained for extended periods. The vacuum indicator control gauge is a genuine Japanese product, and the timer controller uses an imported joint venture brand, with high vacuum and timing accuracy, and excellent performance.


Meets GBT 15171 "Test Methods for Sealability of Soft Packaging" and ISO standards.


Portable automatic model, clear barrel body, reinforced lid, video inspection reliable! Our company produces!


System Parameters: Fully Automatic Mobile (See video operation, video available upon request)


Fully automatic digital sealed gauge, arrives at set pressure, automatically stops, no operation required, automatic gas replenishment, automatic timing, automatic reverse blowing.


Dedicated to checking for any leaks in the product, it's currently the most cost-effective choice among high-quality options!


Vacuum gauge range: 0～-100 kPa, display resolution: 0.1 kPa. Accuracy: 1%.


The machine can extract down to -90 kPa.


Vacuum extraction automatically disconnects, air pressure is automatically compensated, and test setting time is automatically prompted. (See video for details.)


Timing control range: 0~9999 seconds, adjustable at will, with a display resolution of 1 second. The unit is factory-set to 30 seconds.


Power: 220V, 50Hz


Exhaust pipe - 8mm high-quality imported Taiwan TPU (Thermoplastic Polyurethane) tubing


Power Safety Protection: Equipped with power safety protection measures.


Sealing Performance Standards: Complies with national and international standards: ISO, GBT 15171, ASTM D3078...


300mm vacuum chamber effective size: 300mm x 300mm (H) (standard); 300mm x available for any height (H) (optional)


300mm main unit size, 580x650x900mm; ergonomic design for comfortable human operation; weight: approximately 40kg


400mm vacuum chamber effective size: 400mm x 300mm (H) (Standard) | 400mm x customizable height (H) available in stock (Optional)


400mm main unit size, 580x800x1050mm - ergonomically designed for comfortable human operation, Weight: approx. 47kg


500mm vacuum chamber effective size: 500mm x 300mm (H) (standard) | 500mm x available for custom height (H) (optional)


500mm main unit size, 580x650x900mm, ergonomic design for human comfort, Weight: approx. 58kg


600mm vacuum chamber effective size: 600mm x 300mm (H) (standard); 600mm x customizable height (H) upon availability (optional)


600mm main unit size, 580x650x900mm; ergonomic design for human comfort; weight: approx. 70kg


Other heights for the vacuum chamber and special shapes such as square vacuum drums, as well as custom sizes, are available upon customer request.


Net Weight: See above vacuum chamber size categories


Configuration: Host unit, waterproof tape, sealing drum, sealing ring, sealing lid, vacuum pump and oil, wires, rubber cup, instruction manual, quality certificate.


Warranty Certificate. One each. Tracheas, 2 pieces. Etc.
