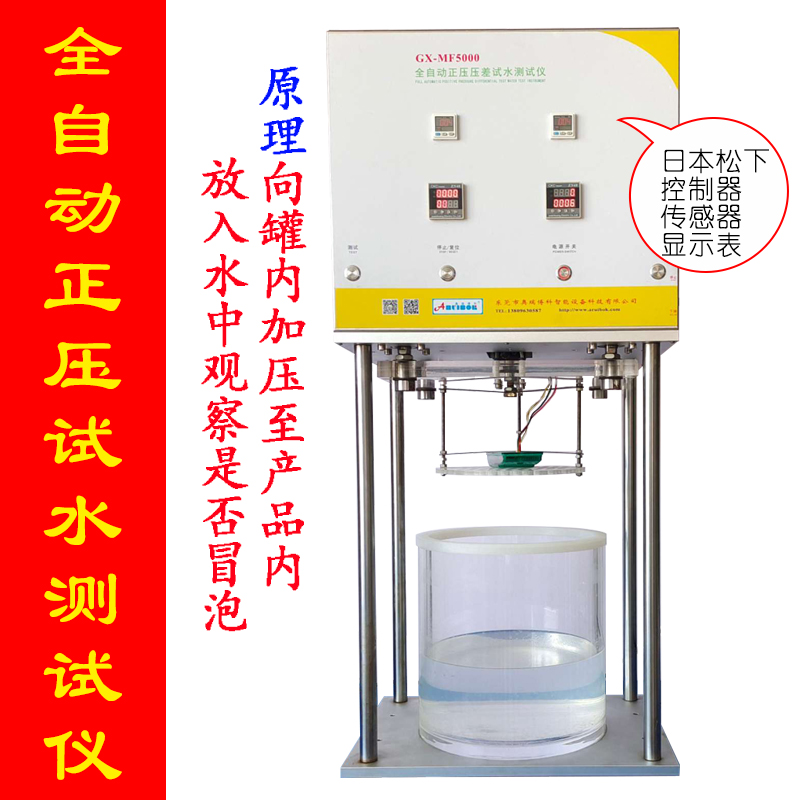

The GX-MF500 Automatic Positive Pressure Leakproof Tester is an all-in-one waterproof testing machine for electronic products or other goods, such as smartphones, watches, lenses, electric toothbrushes, and electronic and valuable items. It boasts superior performance, intuitive testing, and does not damage the products. The product design complies with national and international standards, making it an essential professional testing instrument for manufacturers, research institutions, and testing agencies.


Test Method:


By introducing positive pressure into the sealed drum, the air pressure enters the product being tested. Submerge the product in water, then release the air in the sealed drum. At this point, the air pressure inside the tested product is higher than that in the sealed drum. If bubbles appear in the tested product, it indicates that gas was introduced into the product during pressurization, suggesting poor sealing performance. If no bubbles form, it means no gas was introduced into the product during pressurization, indicating no leakage and good sealing performance.


Simulated IEC 60529 Edition 2.1:2001-02 IPX2-IPX8 samples, immersed completely in water according to the specified normal operating conditions, for direct observation of the product's waterproof performance. Fully automatic model, system parameters:


One-touch start, auto-completion of tests. Devoted to observing if the product leaks, it's the most cost-effective choice among similar products! Test pressure range: 0-1000 kPa, display resolution: 1 kPa. Pressure gauge with automatic compensation, test settings time with auto prompt. Timing control range: 0-9999 seconds, adjustable, display resolution: 1 second. Test settings: adjustable. Power supply: 220V/50Hz. Exhaust pipe: Φ8mm Taiwan imported high-quality polyester TPU pipe. Power safety protection: Equipped with power safety protection measures. Sealing performance standard: Simulated ISO, GB/T 15171, ASTM D3078, IEC 60529 Edition 2.1:2001-02. Vacuum chamber effective size: Φ300mm×350mm (H) (standard). Net weight: 42kg. Configuration: Main unit, sealing drum, sealing ring, sealing cover, wire, rubber cup, manual, certificate of conformity, warranty card. Each item included.
