Features:
1) Powered by the original Dazhe diesel engine, it has stable quality and reliable performance.
2) The arc combustion is stable, the molten pool is calm, and the weld seam is well formed.
3) Easy to arc, minimal splashing, no noise, high efficiency.
4) Adopting a magnetic induction controllable system effectively prevents the aging of electrical components and reduces the failure rate.
5) It can output high power single-phase and three-phase power, meeting the on-site construction electricity needs.

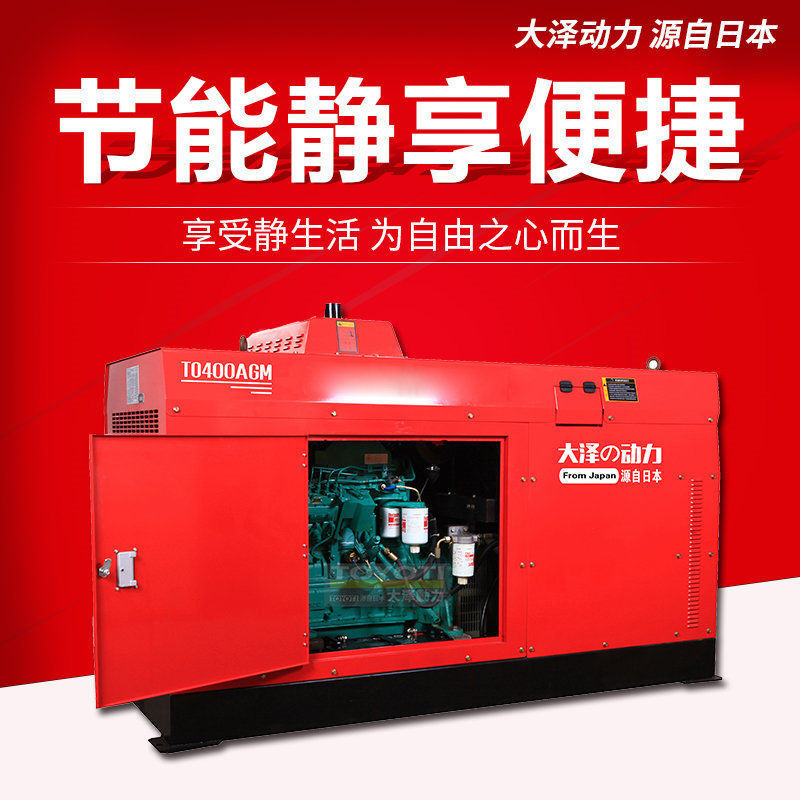

Machine structure: A machine that integrates an engine and an electric welding machine. The generator generates current through rotation to directly drive the welding machine to work. It is a new welding machine equipment that is connected to the generator and the electric welding machine, and comes with a 5 kW auxiliary power supply. It can be used for other lighting work while welding.
Product features: Strong power, extremely convenient for on-site use, AVR module, unique power generation system, light weight, small size, easy to move, suitable for municipal engineering repair, and emergency work in the field. It can be used for both welding and power generation, with multiple functions and a long service life.
Model: TO400A-J
Generator parameters
Rated power: 10KW
Backup power: 12KW
Rated frequency: 50HZ
Rated voltage: 220/380V
Power factor: 1.0
Number of phases: single-phase and three-phase
Welding machine parameters
Welding module: automatic welding module
No load voltage: 70V
Welding voltage: 22-35V
Welding rod range: 0-8.0mm
Current regulation: 0-400A
Welding machine grade: industrial grade
Welding continuity rate: 100%
Welding current: inverter DC welding machine
engine parameters
Engine model TO400
Engine type: Four cylinder water-cooled diesel engine
Piston displacement: 4L
Power speed: 33KW/3000kpm
Starting method: Electric start
Lubricating oil volume: 6L
Fuel consumption 205g/kw. h
Fuel type: diesel
Other parameters
Unit size: 1805 * 955 * 1120mm
Structure type: Open frame/Hand push
75 at a noise level of 7M
Fuel tank capacity: 60L
Battery: 12-60V-Ah
Net weight: 500/650
The standard configuration of the generator welding unit is as follows
Voltage, welding current regulation, frequency, machine operation indication, cooling fan and water tank, safety protection:
Start the battery and the battery starting connection cable;
Welding rod functions: 506, 507, ordinary welding rod, cellulose welding rod, alkaline welding rod, low hydrogen welding rod, carbon welding rod, stainless steel welding rod, etc.
Usage conditions: Environment -35-55 degrees Celsius: altitude within 2000 meters.
TO Daze diesel engine: dustproof, sand proof, shock resistant, and has good environmental adaptability!
Auxiliary power: 10KW/50HZ auxiliary output, can be equipped with lighting, handheld drill, water pump, etc.
Optional accessories (additional cost)
High frequency diesel version welding machine, high-power version TO engine
Execution standard: International standard certification ISO9001:2000 Industry execution standard GB/T2820.1997
Price: 400A diesel power generation and welding integrated machine quotation
Diesel generator welding machine promises that every machine will undergo strict debugging and testing before leaving the factory. Ensure that the machines you receive are functioning properly! If you receive the machine and do not know how to use it, please carefully read the instruction manual, or you can directly contact our customer service personnel by phone, and we will provide you with technical guidance!
Advantages of diesel generator welding machine: Welding machines use electrical energy to instantly convert electrical energy into heat energy. Electricity is very common, and welding machines are suitable for working in dry environments without too many requirements. Due to their small size, simple operation, convenient use, faster speed, and strong welding seam after welding, they are widely used in various fields, especially for parts that require high strength. They can instantly connect the same metal material (or different metals, but with different welding methods). After heat treatment, the weld seam has the same strength as the base material and is well sealed, which solves the problems of sealing and strength for the manufacturing of gas and liquid storage containers.
