Suntech's innovative leading mixed granulation technology

The main factors to measure the efficiency of a high-power mixer are evenness of mixing and time.

Qingdao Suntaike Technology Co., Ltd.'s强力Mixed Pelletizing Machine utilizes the principle of turbulent mixing for granulation, completing the mixing, kneading, and pelletizing process within a single unit. It features minimal steps, simple operation, and can rapidly and efficiently produce the required granules in the shortest possible time.

High sphericity, even particle size, good particle shape, high strength

The rotary blending drum and granulation tool set are variable frequency controlled, allowing for adjustable speed. Particle size can be controlled by adjusting the speed.

Discharging method: Tip-over discharging or bottom discharging (hydraulic control), quick and clean discharging, easy to clean

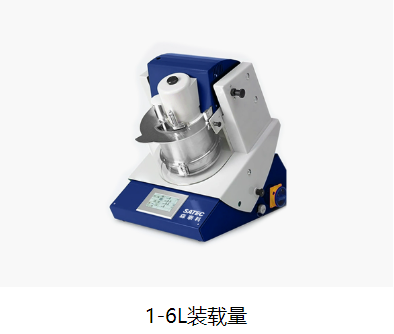

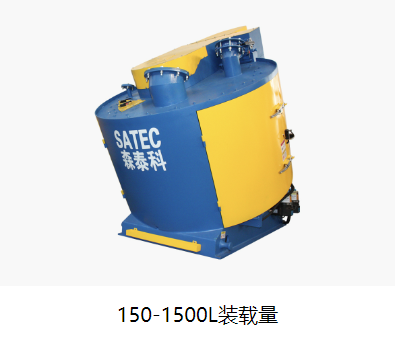

A full range of models available, from small-scale laboratory granulation to large-scale industrial pelletizing, to meet all your needs.

Wide application range, capable of meeting the blending needs of various industries and materials.

The image below displays the volume capacity of a batch processing! The average mixing time is within 1 minute, and granulation is completed within 3 minutes!

Principle of Pelletizing

Utilizing the reverse flow three-dimensional motion principle, combining rotational granulation with high-speed blending granulation, to achieve the quickest and most efficient ball and granule production.

The main functional components consist of a mixed granulation drum body, a high-speed mixed granulation tool assembly, and a fixed scraper. The mixed granulation drum is installed at a specific angle, featuring a high-speed mixed granulation tool assembly at an eccentric position, with a fixed curved scraper mounted at the bottom side of the drum.

During the granulation process, the granulation cylinder rotates clockwise at a lower speed, while the granulation tool set rotates counterclockwise at high speed. The rotating cylinder transports the material into the trajectory of the tool set, and a fixed scraper breaks up the material flow. With the combined action of the rotating cylinder, high-speed granulation tools, and the fixed scraper, a complex three-dimensional mixed granulation material flow is formed, achieving rapid and high-quality homogenization of the material, while completing the granulation process.

Features

Mixed, kneaded, and granulated all in one machine, with fewer processes, simple operation, and a short production process.

Adjusting the speed and time controls the required particle size and strength, allowing for free adjustment of particle size as needed.

The operational conditions and applicable industries are extensive, suitable for adjusting and preparing for pelletizing in various industries. High pellet forming rate, good particle shape, and high strength.

The granulation process ensures no dead angles, with all materials fully participating in granulation and completely mixed, resulting in uniform granules.

The entire granulation process is fully sealed, ensuring no dust pollution and a clean, environmentally friendly working environment.

The material is discharged using both tilt discharge (for smaller models) and hydraulic center discharge methods, ensuring quick and clean discharge with ease of cleaning.

The equipment features a compact structure, reasonable design, small footprint, and is easy to install and maintain.

The granulation tool set includes both multi-layer rotor blades and pin granulation disks, allowing for an optimized choice based on material properties and granulation objectives.

The granulating tool set and scraper are both treated with special wear-resistant processing, offering a long service life and easy replacement.

According to the material properties, the installation angle, shape, speed, and time of the granulating tool group can be adjusted as needed to produce the required granules.

Equipped with an independent control cabinet, capable of connecting to a PLC touch screen control system, enabling both automatic and manual operation modes.

Available for additional heating and vacuum features upon customer request.

According to the material properties, the installation angle, shape, rotational speed, and time of the granulating tool set can be adjusted as needed to produce the required particles.

Equipped with an independent control cabinet, it can be connected to a PLC touch screen control system, allowing for both automatic and manual operation modes.

Heating and vacuum functions can be added according to customer requirements.

Parameters:
