I. Introduction:
The ZDMS series automatic jet spray fire extinguishing device combines infrared/ultraviolet sensor technology, signal processing technology, communication control technology, computer technology, and mechanical transmission technology in an integrated manner. It can automatically monitor and protect against fires within its range 24/7. Upon detection of a fire, the device immediately activates, scanning the fire source in both horizontal and vertical dimensions. After determining the two orientations of the fire source, the central controller issues commands, triggering an alarm signal, and simultaneously starting the water pump, opening valves, and directing the extinguishing device to spray water at the fire source. Once the fire is extinguished, the central controller sends a command to stop the water spray. If a new fire source is detected, the extinguishing device will repeat the aforementioned process, returning to monitoring mode after all fire sources have been extinguished. The device's water jetting is in a cylindrical shape, with a long range and wide protection area, offering very strong fire extinguishing capabilities.
II. Product Features:
Utilizing dual-band infrared-ultraviolet composite detection technology, offers superior sensitivity to various fire sources with high accuracy; full-space coverage and no blind spots within the size range; quickly achieves precise fire source location and water spraying for extinguishing.
Utilizing 485 industrial-grade bus communication, low consumables, easy installation, and stable and reliable performance.
AdoptMilitary IndustryLevel bus video real-time transmission technology allows operators to manually control by combining on-site video.
Accurate control of the smart water cannon can be achieved through three control methods: automatic control, on-site manual control, and remote manual control center.
Seamlessly connects and is compatible with other devices through the established communication protocols.
Fire emergency SMS alert feature, allows setting notifications to relevant personnel upon detection of a fire.
(Large shopping malls, conference halls, cinemas, theaters, stadiums, and other crowded public venues, airports, train stations, bus stations, docks, and other transportation hubs, as well as large warehouses and production workshops in industrial areas.)
III. Product Description:
Due to the variety of automatic seeking column-type fire extinguishing devices produced by our company, we will take the ZDMS0.8/20S automatic tracking and positioning jet fire extinguishing device as an example to introduce its structure and working process.
⑴ Fire Extinguisher Mount
②Horizontal Rotating Joint
Level Drive Motor
Level Travel Switch
⑸ First bend pipe
Vertical rotating joint
Vertical drive motor
Vertical Travel Switch
Second bend pipe
Adjustable cannon mouth
Adjustable flower motor
The telescopic push rod assembly forms a high-performance fire lance, serving as an automated actuator.
Additionally, the cannon body is equipped with:
KDT-LD-02 Horizontal Detection and Locating Instrument
KDT-VD-03 Vertical Detection Locating Device
The KDK-PZX-A炮载中心控制 unit and the externally mounted KDT-CE-01 multi-band omni-directional infrared detector (also known as the front-end perception detector) make up a complete automated intelligent fire extinguishing mini-system.

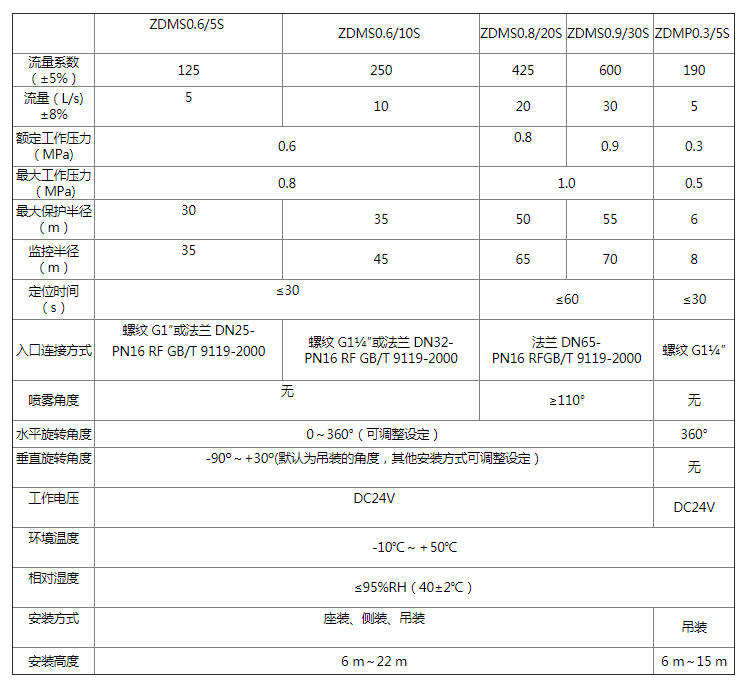

IV. Performance Parameters:
