I. Introduction:

The ZDMS series automatic jet fire extinguishing device integrates infrared/ultraviolet sensing technology, signal processing technology, communication control technology, computer technology, and mechanical transmission technology into a cohesive unit. It can automatically monitor and protect against fires within its range 24/7. Upon detection of a fire, the device immediately activates, performing a two-dimensional scan horizontally and vertically to locate the fire source. Once both directions are confirmed, the central controller issues commands, sends out a fire alarm signal, and simultaneously starts the pump, opens the valves. The fire extinguishing device then targets the fire source with water jets. After the fire is extinguished, the central controller sends a command to cease water喷射. If a new fire source is detected, the device repeats the process until all fires are extinguished, then returns to monitoring mode. This device features a columnar water jet, with a long range and wide protection area, offering exceptional fire extinguishing capabilities.

II. Product Features:

Utilizes dual-band infrared-ultraviolet composite detection technology, highly sensitive to various fire sources with high accuracy; full-space coverage and no blind spots within the size range; quickly achieves precise fire source location and water sprinkling extinguishment with multiple degrees of freedom.

Utilizing 485 industrial-grade bus communication, featuring low consumption, ease of installation, stability, and reliability.

Utilizing military-grade bus video real-time transmission technology, operators can manually control by integrating on-site video footage.

Accurate control of the intelligent water cannon can be achieved through three control methods: automatic control, on-site manual control via the control center, and remote manual control via the remote control center.

Can be seamlessly integrated and compatible with other devices through established communication protocols.

Fire emergency SMS alert feature, allows setting notifications to relevant personnel upon detection of a fire.

(Large) shopping malls, conference halls, cinemas, theaters, stadiums, and other crowded public venues, airports, train stations, bus stations, docks, and other transportation hubs, as well as large warehouses and production workshops.

III. Product Description:

Due to the variety of automatic seeking column-type water spray fire extinguishing devices produced by our company, we will take the ZDMS0.9/30S automatic tracking and positioning jet fire extinguishing device as an example to introduce its structure and working process.

⑴ Fire Extinguisher Mount

Horizontal rotating joint

Level Drive Motor

④ Horizontal travel switch

⑸ First bend pipe

Vertical rotary joint

⑺ Vertical drive motor

Vertical Travel Switch

⑼ Second bend pipe

Adjustable cannon mouth

⑾ Telescopic and Variable Pattern Motor

A telescopic push rod assembly forms a high-performance fire lance, serving as an automated actuating mechanism.

Additionally, the cannon body is equipped with:

KDT-LD-02 Horizontal Detection Locating Instrument

KDT-VD-03 Vertical Detection Locating Instrument

The KDK-PZX-A炮载Center Control Unit and the externally mounted KDT-CE-01 Multi-Band Omnidirectional Infrared Detector (also known as the Front-end Perception Detector) form a complete automated intelligent fire extinguishing mini-system.

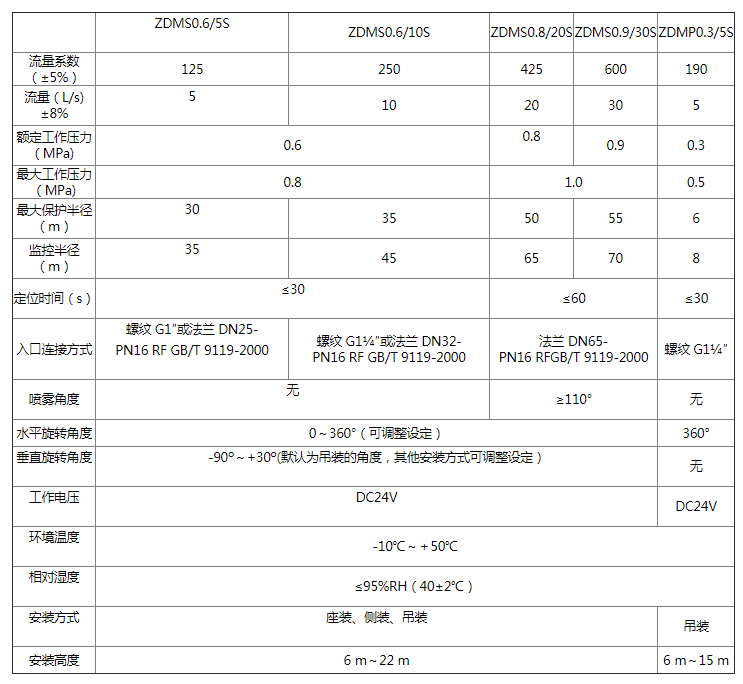

IV. Performance Parameters:
