The steel plate shield features good sealing, preventing iron shavings, coolant, and accidental tool accidents.

Robust and durable, smooth operation, low noise, and aesthetically pleasing design.

2. The steel plate guard is suitable for the protection of machine tool guideways in high-speed motion, ensuring smooth operation without vibration or noise.

3. The steel plate guard not only extends the lifespan of the protective panel but more importantly ensures the precision of the machine tool.

4. Each section of the steel plate guard can be opened and retracted simultaneously, operating smoothly.

5. The steel plate guard won't cause the shield to disengage or produce a clanging sound; it's both aesthetically pleasing and enhances the longevity of the shield.

6. An additional layer of stainless steel cover is added on top of the original sealed gasket, preventing iron filings from burning the gasket at high temperatures and scratching the rail surface, thereby damaging the guide rail. Advantages of the steel plate protective cover device:

1. Each shield can be triggered simultaneously, which is entirely different from the conventional shields that are pulled one after another, resulting in extremely low noise.

2. The protective hood of the device can extend its service life.

3. The steel plate protective hood device allows the hood to achieve a movement speed of up to 120m/min and withstand higher G-values (up to 2G).

4. The steel plate guard device allows the guard to move synchronously and parallelly (eliminating the drawback of the general shear-type guards that still exhibit a snake-like movement).

5. At high speeds, it operates more smoothly without vibration.

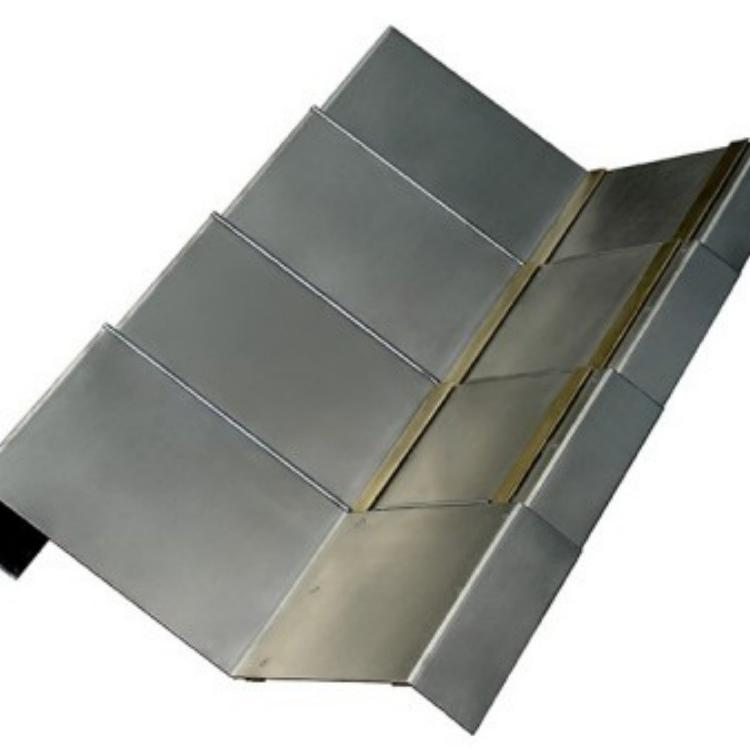

The steel telescopic guide rail cover is a traditional protective form for machine tools. In this field, the steel telescopic guide rail cover is widely used, providing effective protection against the entry of chips and other sharp objects. Through certain structural measures and appropriate chip scraper plates, it can also effectively reduce the penetration of cooling fluids. Our factory's steel telescopic guide rail cover can meet the increasingly high requirements of modern machine tools for high technology, correct installation, and high operating speed.

Technical Data

The steel telescopic guide rail cover is made from high-quality 2-3mm thick cold-rolled steel plate, and can also be made of stainless steel upon request. The special surface polishing adds extra value. We can provide the corresponding guide rail cover types for all types of machine tools (horizontal, vertical, inclined, transverse).

Our protective cover structures vary based on the operating speed and the type of guide rail. For speeds below 10m/min, we use polyamide or brass sliders. For medium speeds below 30m/min, we have roller bearings. Additionally, a cushioning system is required between the driving plate, chip scraper, and dust collection plate. The purpose of the slider cushioning system is to reduce collisions, noise, and friction.

The number of sections of the steel telescopic guide rail protector is crucial for its proportions, weight, and operational characteristics. Each individual section should be as long as possible to minimize the number of sections and reduce costs. Generally, the ratio of large stretch to small compression should be between 3:1 and 5:1.
