The steel plate guard features excellent sealing, preventing iron shavings, coolant, and accidental tool accidents.

Robust and durable, operates smoothly, low noise, and aesthetically pleasing.

2. Steel plate guards are suitable for protecting machine tool guideways in high-speed operations, ensuring smoothness and vibration-free, noiseless operation.

3. The steel plate guard not only extends the lifespan of the protective plate but more importantly ensures the precision of the machine tool.

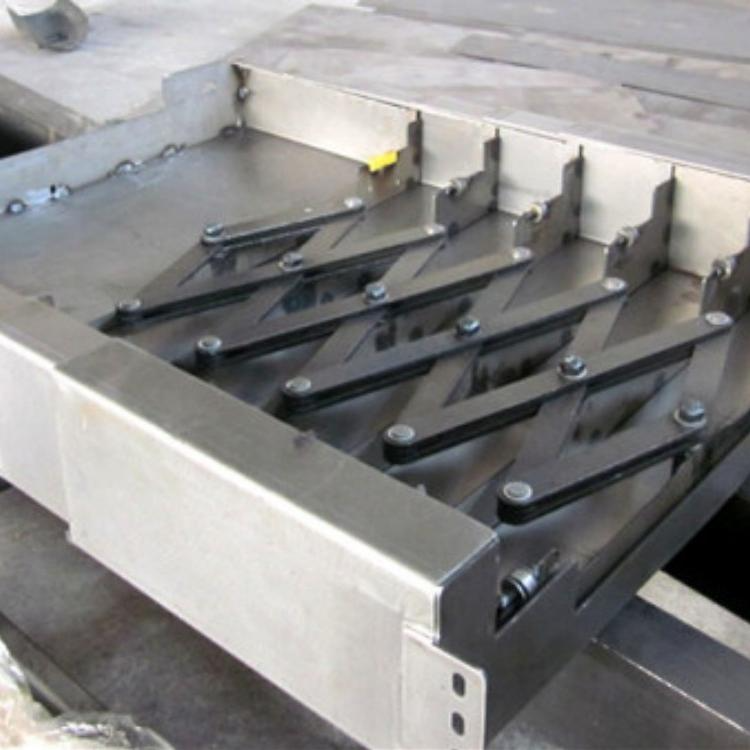

4. Each section of the steel plate protective cover can be simultaneously pulled out parallelly and retracted parallelly, operating smoothly.

5. The steel plate guard won't cause the guard to come apart, produces no impact noise, and is both aesthetically pleasing and enhances the lifespan of the guard.

6. An additional layer of stainless steel cover has been added on top of the original sealing strip to prevent iron shavings from burning the strip at high temperatures and scratching the rail surface, thereby damaging the guide rail. Advantages of the steel plate shield device:

1. Each shield can be actuated simultaneously, significantly different from the conventional shields that are pulled one after another, thus producing extremely low noise.

2. The protective cover of the device can extend its service life.

3. The steel plate protective hood device allows the hood to achieve a movement speed of up to 120m/min and withstand higher G-values (up to 2G).

4. The steel plate guard device allows the guard to move synchronously and parallelly (eliminating the drawback of the snake-like movement that is common in shear-type guards).

5. At high speeds, it operates more smoothly without any vibration.

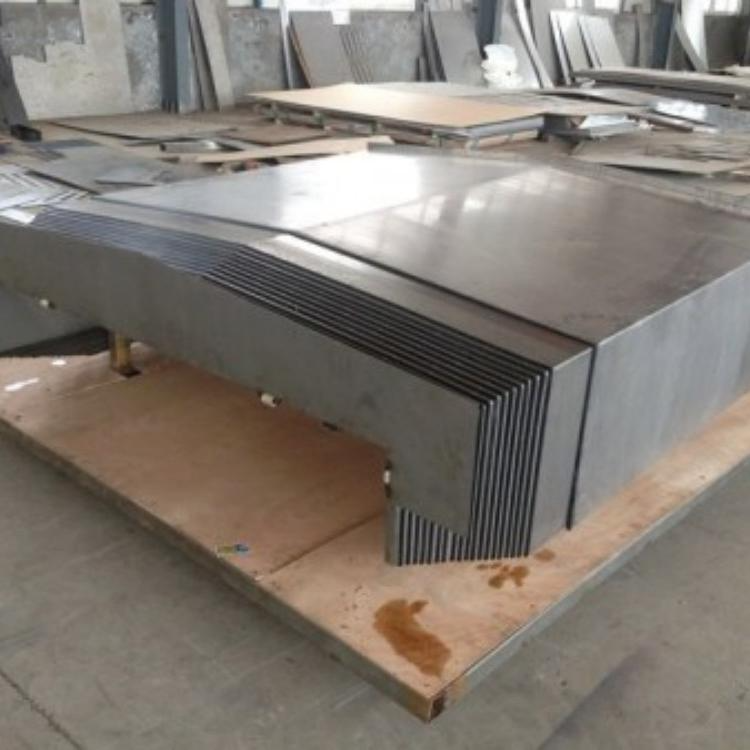

Steel telescopic guide rail guards are a traditional protective form for machine tools. In this field, steel telescopic guide rail guards are widely used, effectively preventing chips and other sharp objects from entering. Through certain structural measures and appropriate chip scrapers, the渗入of coolant can also be effectively reduced. Our factory's steel telescopic guide rail guards can meet the increasingly high requirements of modern machine tools for high technology, correct installation position, and high operating speed.

Technical Data

Steel telescopic guide rail guards are made of high-quality 2-3mm thick cold-pressed steel plates, and can also be made of stainless steel upon request. The special surface polishing adds extra value. We can provide the corresponding guide rail guard types for all machine tool types (horizontal, vertical, inclined, transverse).

Our protective cover structures vary based on operating speed and guide rail types. For speeds below 10m/min, we use polyamide or brass sliders. For medium speeds below 30m/min, we install roller bearings. Additionally, a buffer system is required between the driving plate, chip scraper, and chip absorption plate. The purpose of the slider buffer system is to reduce collisions, noise, and friction.

The number of sections for a steel telescopic guide rail protector is crucial for its proportions, weight, and operational characteristics. Each individual section should be as long as possible to minimize the number of sections and reduce costs. Generally, the ratio of large extension to small compression should be between 3:1 and 5:1.
