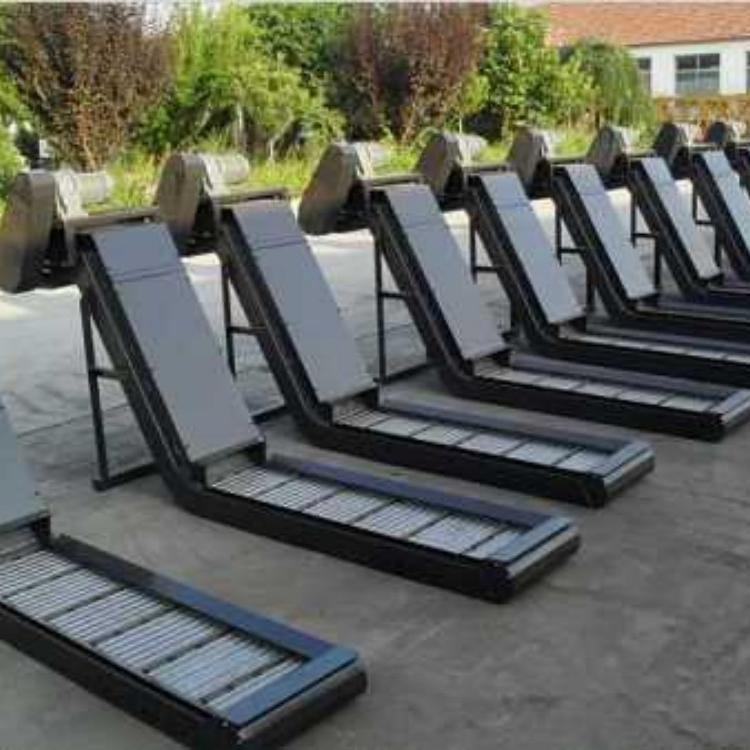

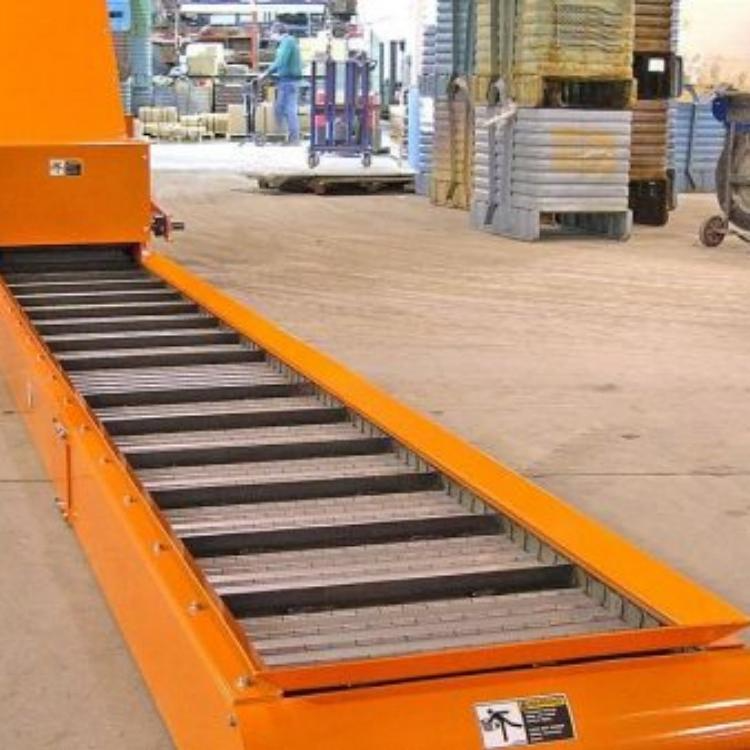

The scraper chip conveyor is divided into roller conveyor chain and die-forged detachable chain according to the chain form used. Among them, the roller conveyor chain is differentiated by pitch with 31.75 and 50.8, while the die-forged detachable chain has a pitch of 76.6, which is widely used internationally.

Key Features of Chip Conveyor:

1

2. The scraper屑 removal machine is suitable for conveying chunky crushed or powdered chips, but is not very suitable for conveying chips with fibrous long strips, as it may cause the chips to wrap around the chain.

3. The scraper chip conveyor can optionally add a timer relay to intermittently operate the reducer motor for water control during scraping chips from the water tank. A magnet can be added to the bottom of the scraper chip conveyor to accelerate the sedimentation of iron chips. Additionally, a refrigeration unit can be included to control the temperature of the coolant.

Due to the structural limitations of the chip conveyor, it is necessary to prevent a large amount of chips from entering the conveyor during machine cleaning, which could cause malfunctions by mixing the upper and lower scraper blades of the conveyor with a large number of chips.

The 5-link die forging detachable chain scraper is particularly suitable for centralized disposal of chips or powdered debris in machine processing workshops. The die forging detachable chain features a certain degree of freedom, is not prone to jamming, and is easy to install, making it widely used internationally.
