Product Specifications
Brand: YingTeng

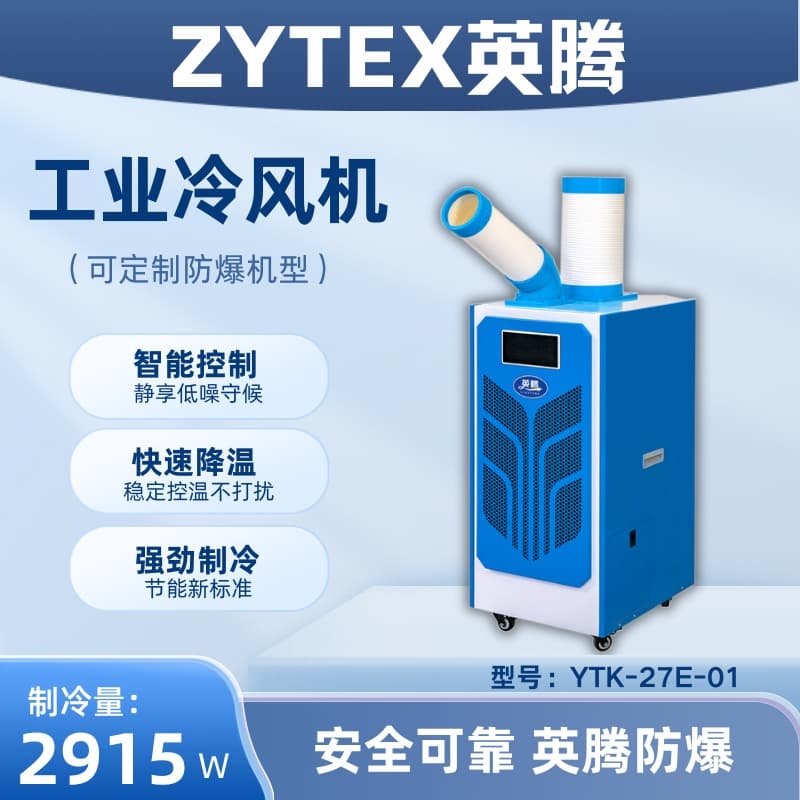

Model: YTK-27E-01
Cooling Capacity: 2915W
Units: >1 pair
Voltage/Frequency: 220V/50Hz
Power: 1150W
Control Type: Touchscreen Control
Airflow: 450 m³/h
Motor Brand: Zhongshan Hengda
Temperature Range: 16-30℃
Fan: Cold 50W x 1 / Hot 70W x 1
Timer Function: On/Off in 24-hour cycles
Wind Speed Settings: Low and High Speed
Pipe Diameter: Cold 120mm / Hot 180mm
Quantity: Single Tube (Blue & White)
Wind Distance: 6 meters
Tank Capacity: 6L
Applicable Temperature: 5-45℃
Body Dimensions: 440×500×945mm
Customizable Features: Purification, Antivirus, Tracking, Stainless Steel, Corrosion Resistance between Two Vessels
Portable Air Conditioner Usage Precautions
1. Packaging Instructions: After unpacking, remove the machine entirely. The air ducts and accessories are located on both the upper and lower trays; please note.
2. Three-minute delay: There is a 3-minute delay upon startup, and also after switching to ventilation/refrigeration mode, or after moving the water tank.
3. Plug-in Notice: It is recommended to use a 16A socket and plug it directly into the wall. *Avoid using extension cords (some extension cord wires have insufficient current, which can overheat during use and pose a safety hazard).
4. Power Voltage: For unstable or insufficient voltage below 220V, a voltage stabilizer must be added, or a unit with a 1P, 1.5P, 2P, or higher compressor (the machine shows refrigeration, but no cold air is emitted, or the refrigeration stops after a few minutes of vibration, which is also a power voltage issue) should be selected. The power cable needs to be 2.5 square millimeters.
5. Normal Operation Check: Blue and white lines moving on the screen indicate the compressor is on and the refrigeration has started, which is normal operation. If the lines are not moving, please check if the ventilation mode is enabled or if the water level indicator shows full.
6. Customized Selection: Press "+" to toggle between cooling/ventilation modes, and press "-" to switch between high and low wind speeds.
7. Water Full: Indicates water is full, please check the water tank and pour out the excess; if there is no water or it's not full, the position may be incorrect, just adjust it (sometimes, even if it doesn't show water full, if the blue and white line doesn't move and the cooling doesn't start, it's also because the water tank is not properly placed).
8. Watering: You'll need to refill the water after about a day, recommended to do so before leaving work or before starting the machine in the morning; directly draining the water through an external pipe to the floor drain is also an option.
9. Filter Mesh: Regularly clean the filter mesh, washing it every 2-3 days in dusty conditions (the front panel can be lifted to remove the filter mesh).
