Product Specifications
Brand: YingTeng

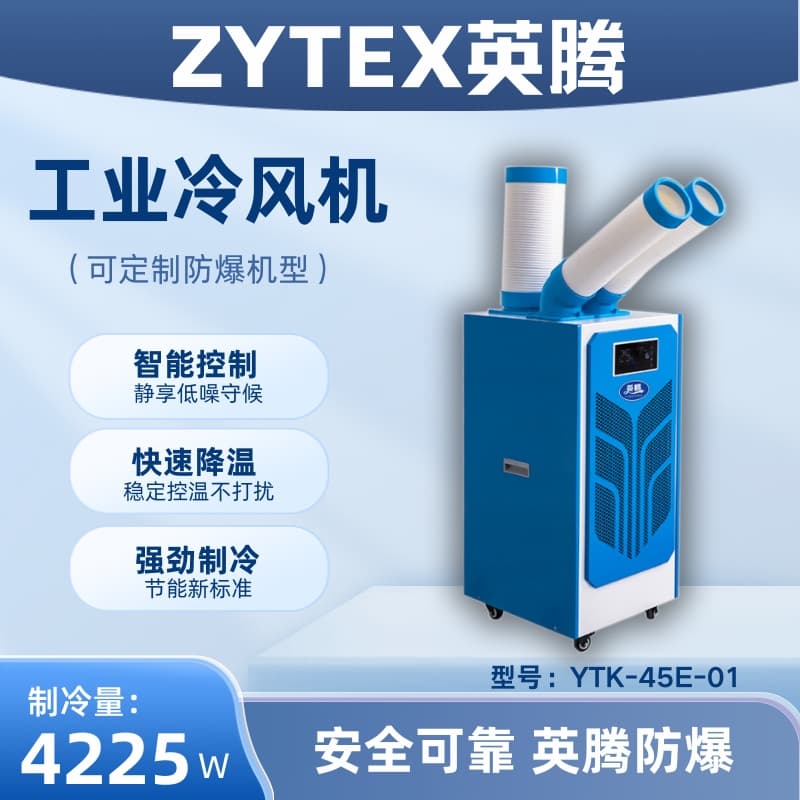

Product Model: YTK-45E-01
Cooling Capacity: 4225W
Yards: > 1.5 yards
Voltage/Frequency: 220V/50Hz
Power: 1950W
Control Type: Touchscreen Control
Airflow: 800 m³/h
Motor Brand: Zhongshan Hengda
Temperature Range: 16-30℃
Fan: Cold 70W x 1 / Hot 70W x 1
Timer function: 24-hour on/off
Wind Speed Settings: High and Low Speeds
OD: Cold 120mm / Hot 180mm
Quantity: Twin-barrel (blue and white)
Wind Distance: 6 meters
Water Tank Capacity: 6L
Applicable Temperature: 5-45℃
Body Dimensions: 440×500×945mm
Customizable Features: Purification, Antivirus, Tracking, Stainless Steel, Corrosion Resistance between Components
Portable Air Conditioner Usage Precautions
Packaging Instructions: After unpacking, please lift the machine out as a whole. Both the air duct and accessories are located on the upper and lower trays; please note this.
2. 3-minute delay: There's a 3-minute delay upon startup, as well as after switching to ventilation/refrigeration mode, or moving the water tank.
3. Plug-in Notice: It is recommended to use a 16A outlet and plug it directly into the wall. *Avoid using extension cords (some extension cords have too small current capacity, which can overheat during use and is unsafe).
4. Power Voltage: For unstable or insufficient voltage below 220V, a voltage stabilizer must be added, or select a 1P, 1.5P, 2P, or higher capacity compressor that cannot be powered (the machine displays cooling, but no cold air is produced, or the cooling stops after a few minutes of vibration, which is also a power voltage issue; the power cable must be 2.5 square mm).
5. Normal Operation Judgment: Blue and white lines moving on the screen indicate that the compressor has started and the refrigeration process has begun, which is normal operation. If the lines do not move, please check if the ventilation mode is turned on or if the water level indicator shows full.
6. Personalized Selection: Press "+" to switch between cooling/ventilation modes, press "-" to adjust between high and low fan speeds.
7. Water Full: Indicates water is full, please check the water tank and pour out the excess; if there is no water or it's not full, the position is incorrect, just adjust it (sometimes it doesn't show water full, but the blue and white line doesn't move and the cooling doesn't start, which also indicates the water tank is not properly placed).
8. Watering: It's necessary to refill the water every day or so, suggest doing it before leaving work or before starting the machine in the morning; direct draining into the floor drain with an external water pipe is also acceptable.
9. Filter Mesh: Regularly clean the filter mesh; for dusty environments, wash it every 2-3 days (the filter mesh can be removed by lifting the front panel).
