Product Specifications
Brand: YingTeng

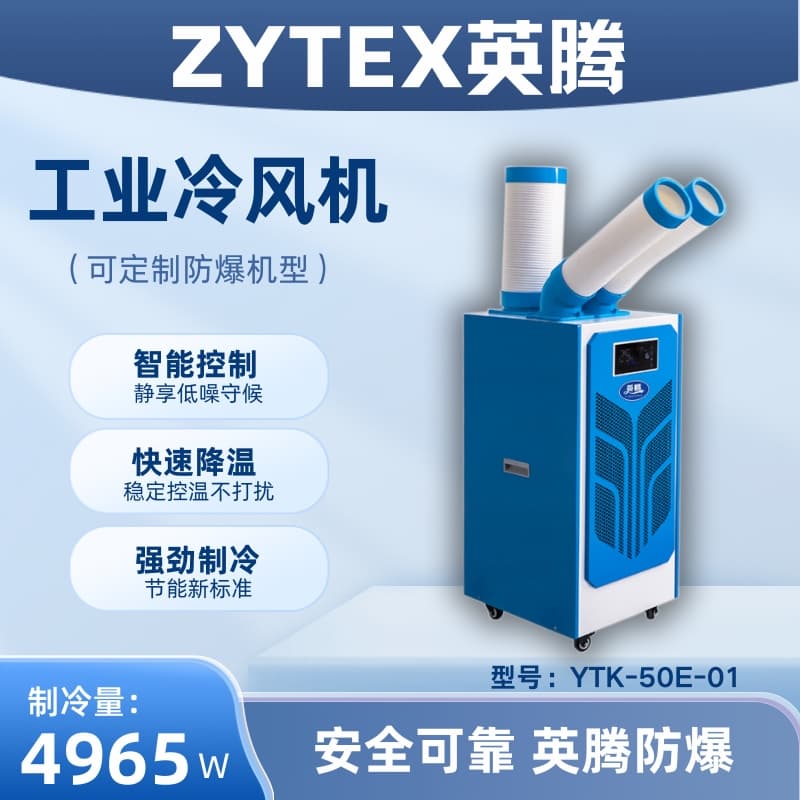

Product Model: YTK-50E-01
Cooling Capacity: 4965W
Yards: 2 yards
Voltage/Frequency: 220V/50Hz
Power: 2200W
Control Type: Touchscreen Control
Airflow: 1000 m³/h
Motor Brand: Zhongshan Hengda
Temperature Range: 16-30℃
Fan: Cold 70W x 1 / Hot 70W x 1
Timer Function: 24-hour On/Off
Wind Speed Settings: High/Low Speed
Pipe Diameter: Cold - 120mm / Hot - 180mm
Quantity: Twin-barrel (blue and white)
Wind Distance: 6 meters
Tank Capacity: 6L
Applicable Temperature: 5-45℃
Body Dimensions: 440×500×945mm
Customizable Features: Purification, Antivirus, Tracking, Stainless Steel, Corrosion Resistance between Two Devices
Portable Air Conditioner Usage Precautions
1. Packaging Instructions: After unpacking, remove the machine entirely. Air ducts and accessories are located on both the top and bottom trays; please note.
2. Three-minute Delay: There is a 3-minute delay upon startup, and also after switching to ventilation/cooling mode or after moving the water tank.
3. Plug-in Notice: It is recommended to use a 16A outlet and plug directly into the wall. *Avoid using extension cords (some extension cord wires have too small current, which can overheat during use and is unsafe).
4. Power Voltage: For unstable or insufficient voltage below 220V, a voltage stabilizer must be added, or select a 1P, 1.5P, 2P, or higher model that cannot drive the compressor (the machine shows cooling, but no cold air is produced, or the cooling stops after a few minutes of vibration, which is also a power voltage issue; the power cable must be 2.5 square mm).
5. Normal Operation Check: If blue and white lines are moving on the screen, it indicates the compressor is on and the cooling process has started, which is normal operation. If they are not moving, please check if the ventilation mode is activated or if the water level indicator is showing full.
6. Personalized Selection: Press "+" to switch between cooling/ventilation modes, press "-" to switch between high and low fan speeds.
7. Water Full: Indicates water is full, please check the water tank and pour out the excess; if there is no water or it's not full, the position is incorrect, just adjust it (sometimes, even without the water full indication, if the blue and white line doesn't move and the cooling doesn't start, it's also due to the water tank not being properly placed).
8. Watering: Refill water approximately once a day, preferably before leaving work or before starting the machine in the morning; connecting a water pipe directly to the drain is also acceptable.
9. Filter Mesh: Regularly clean the filter mesh, washing it every 2-3 days in dusty conditions (the filter mesh can be removed by lifting the front panel).
