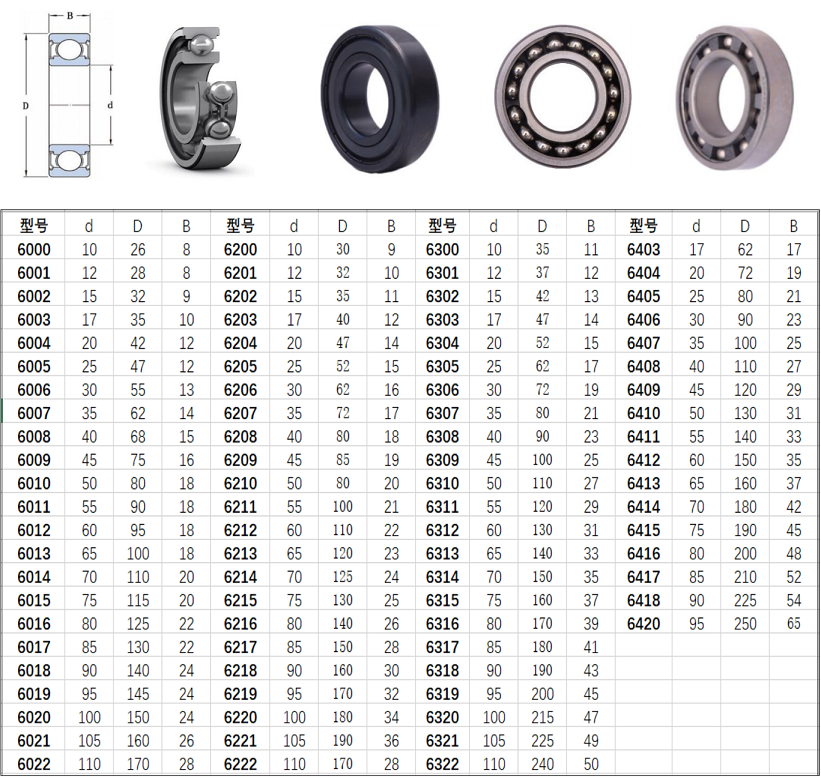

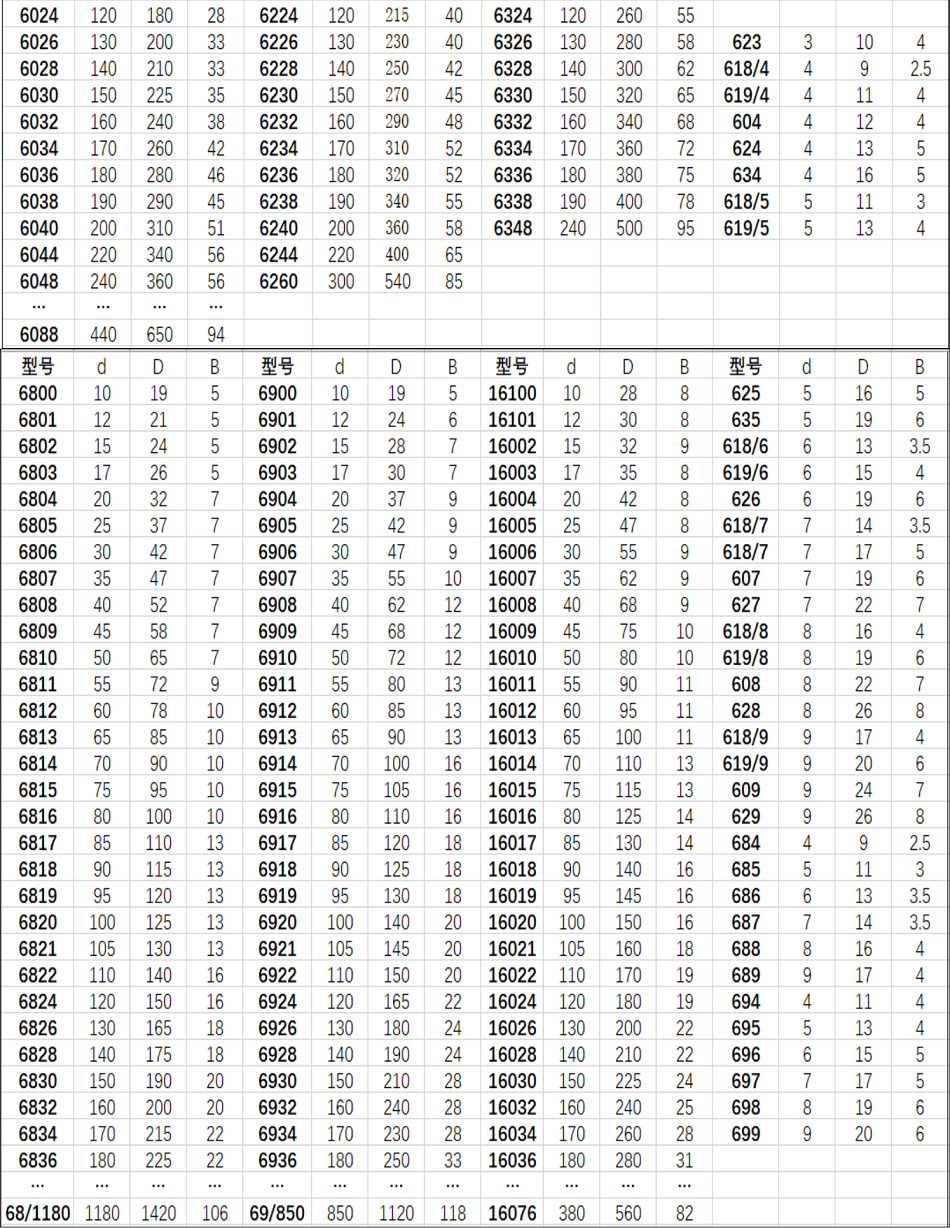

High-temperature deep groove ball bearings with GB standard sizes, any GB bearing of the same type can be replaced. They are the most widely used type for high-temperature operating conditions, supporting radial loads. Divided into high-speed and low-speed based on operating temperature, corresponding to retainers and full ball structures. For dusty environments, sealed dustproof structures can be chosen. They can operate normally within a temperature range of 150° to 1500°, and support customized sizes!
Primary Materials：

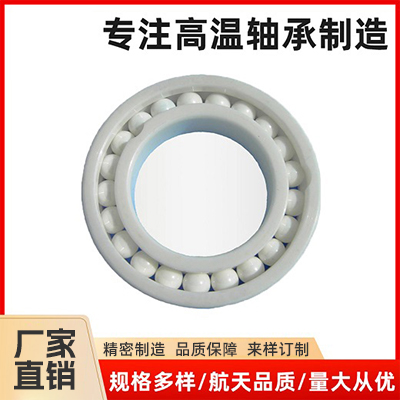

Common high-temperature bearing steels include: Molybdenum series: Cr4M04V, Cr15M04, 9Cr18Mo, Cr14M04; Tungsten series: W9Cr4V2Mo, W18Cr4V; Tungsten-molybdenum series: W6MoSCr4V2. High-temperature bearing steels such as W, Cr, V, Mo can form refractory carbides at high temperatures and can precipitate dispersed carbides during tempering, producing a secondary hardening effect, which maintains high hardness, wear resistance, strong oxidation resistance, high fatigue resistance, and dimensional stability at certain temperatures. Among high-temperature bearing steels, Cr4M04V and W18Cr4V are most commonly used. High-temperature bearing steels should not only possess the general properties of bearing steels but also exhibit high-temperature hardness, high-temperature wear resistance, high-temperature contact fatigue strength, oxidation resistance, high-temperature impact resistance, and stability of high-temperature performance. Bearings are produced from different materials based on operational requirements. Ceramic Material: Zirconia ceramic, silicon nitride ceramic, silicon carbide ceramic, usually combined with steel bearings; ceramic materials maintain hardness unchanged at 1500°C, and when used in combination, they can address the fragility of all-ceramic bearings during installation, while also withstanding high temperatures, allowing for oil-free use above 500°C. Graphite: A common high-temperature lubricant material used in low-speed conditions up to 500°C, featuring graphite retainer bearings and graphite block lubricated bearings with excellent and stable lubricating properties at high temperatures. Zinc Alloy: A type of alloy, also known as zinc-based alloy, primarily composed of zinc and other elements, enhancing casting properties, corrosion resistance, high-temperature resistance, and high plasticity, mainly used for bearing housing materials. Bearing Steel: Achieved through heat treatment for high-temperature resistance, generally used in conditions up to 300°C. These materials exhibit significant advantages in high-temperature conditions, with higher loads, no seizing, severe deformation, or retainer breakage!
High-temperature working conditions temperature classification：300°，500°，800°，1200°
High-temperature lubrication methodLubricating oil, solid lubrication, self-lubricating (usually based on operating conditions)
Structure ClassificationWith retainers (for high-speed conditions use), without retainers, full ball (usually for low-speed conditions, fewer friction points, reduces jamming, better performance, longer lifespan)

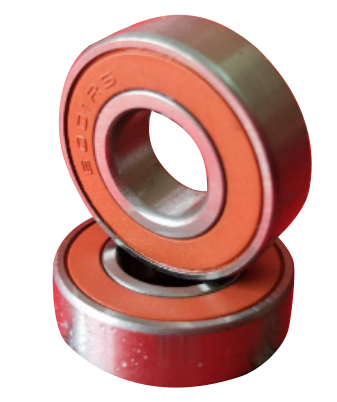

Postfix MeaningZZ - Metal seal on both sides, Z - Metal seal on one side, 2RS - High-temperature rubber seal on both sides, DT - Withstands temperature up to 300°, WT - Withstands temperature up to 500°, BT - Withstands temperature up to 800°, OT - Withstands temperature up to 1200°, Y - High-temperature grease, H1 - Graphite retainer, H2 - Graphite block, H3 - Graphite grease S: Retainer (over 100 rpm per division) C: Ceramic ball P: Precision
DescriptionThe bearing's temperature resistance varies, with internal design structures changing (100R/PM as the dividing line), different materials used, lubrication methods differing, and the resulting clearance, load, and rotational speed varying. High-temperature conditions are complex. Please contact our sales team by phone during the design phase to carefully verify the operating parameters. Confirm the details are correct before making a purchase. 1. Warranty: If the user finds quality defects or incorrect types in the batch of bearings within the specified time after receiving the goods, and after our company confirms the issue, we will promptly and fully refund or exchange the products as ordered. 2. Installation and Use: If there are quality issues during the normal installation and use of the bearings after the user receives them, and after our company confirms the authenticity of the issue, we will refund or exchange the products. 3. Usage Requirements: The shaft size must not be oversized. If there are feasibility concerns due to different usage conditions, it is recommended to try the product first. Our company will actively provide samples and consultation on the trial methods, analyze any issues that arise during the trial, and will not be responsible for the quality or economic aspects of the trial. At the same time, we decline inquiries involving confidential matters related to intellectual property rights. 4. We implement a three-package quality guarantee system, and do not deduct any quality deposit.
