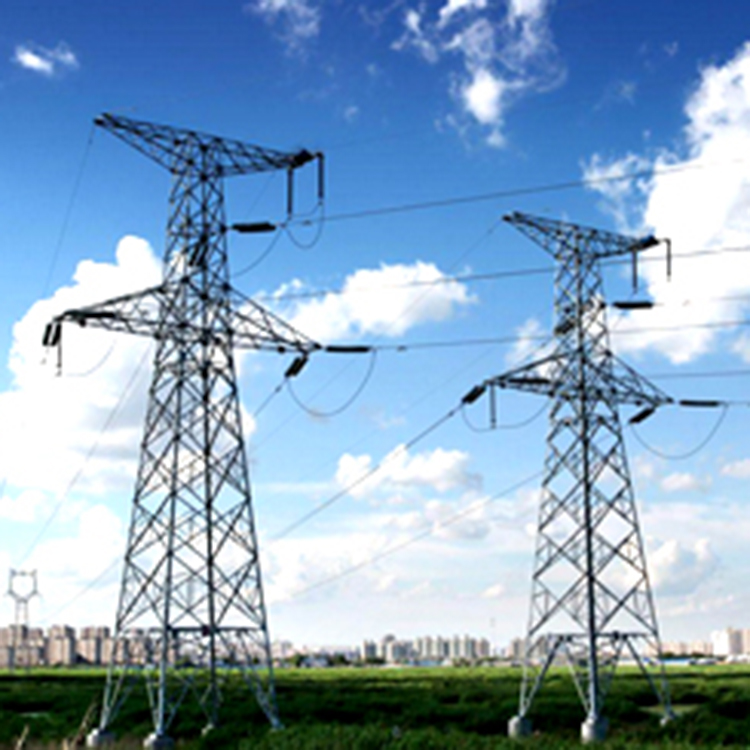

Power towers, also known as transmission line towers, are generally categorized by shape into five types: cup-shaped, cat-head-shaped, upper-letter-shaped, cross-shaped, and barrel-shaped. By application, they are divided into...
We offer a variety of towers, including tension towers, straight towers, corner towers, phase-change towers (used to replace wire phase positions), terminal towers, and span towers, among others. Their structural characteristics are as follows:

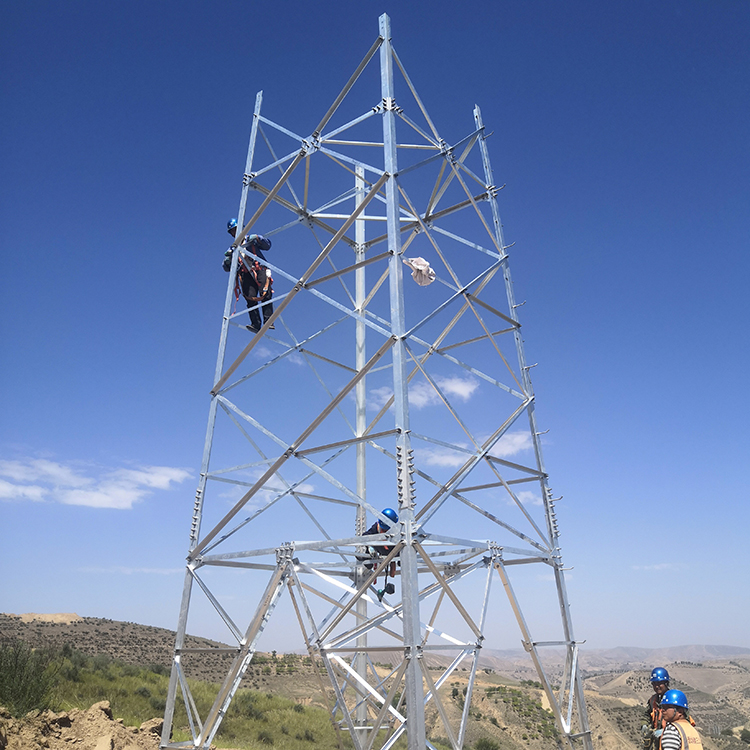

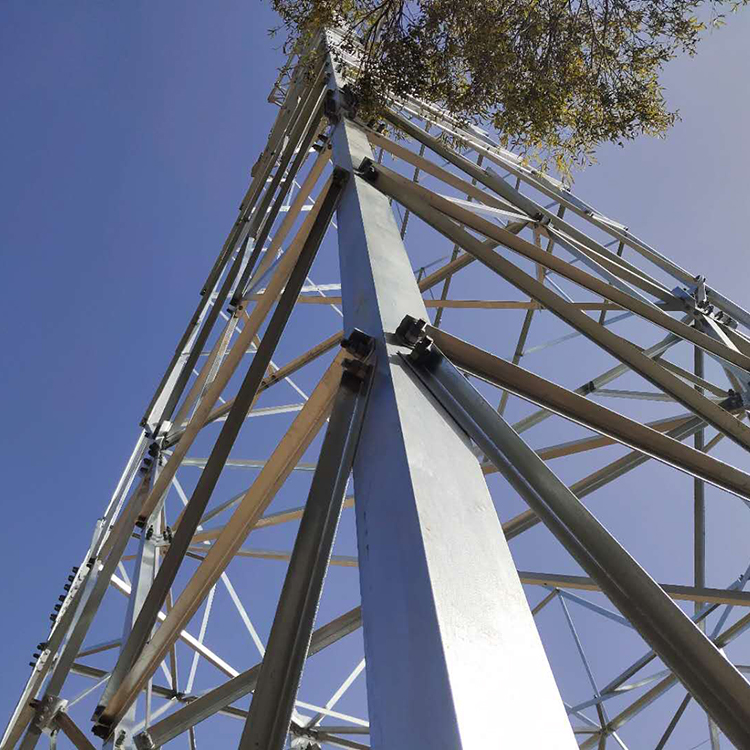

All tower types are of space truss structures, with members mainly composed of single equal-leg angle steel or combined angle steel. Materials generally used are Q235 (A3F) and
Q345 (16Mn) in two types, the connection between rod members is made with coarse bolts, which are connected by shear force from the bolts, the entire tower consists of angle steel, connecting steel plates, and bolt sets
Individual components such as the tower base are welded from several steel plates to form a composite part, making hot-dip galvanized corrosion protection, transportation, and installation extremely convenient.
