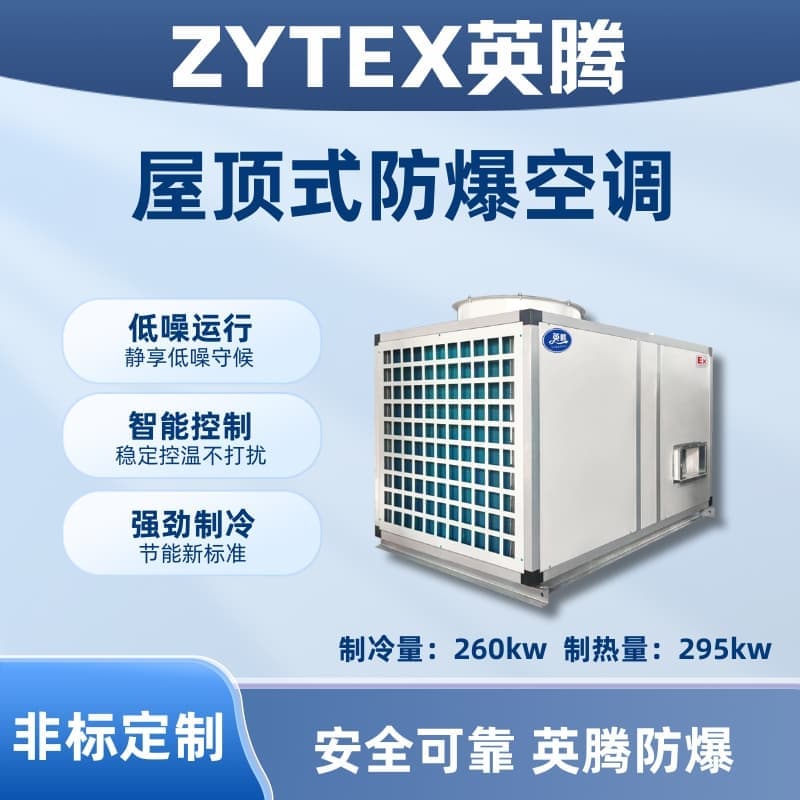

YingTeng Rooftop Explosion-Proof Air Conditioning Unit
Product Specifications
Model: BZKT-260Ex
Brand: YingTeng
Cooling Capacity: 260 kW
Heating Output: 295 kW
Energy Regulation: 0, 50, 75, 100%
Airflow: 43,500 m³/h
Static Pressure Outside the Machine: ≥600 Pa
Temperature Range and Accuracy: 18 - 32℃ ±2℃
Power: 380V 50Hz, three-phase four-wire system
Rated Power: Cooling 93.8kW, Heating 91.7kW
Compressor: Type semi-hermetic screw, Quantity 1
Evaporators, Condensers: Copper tube with aluminum fin
Fan Blower: Type double-inlet centrifugal (belt-driven), Power 18.5kW
Cooling Fan: Type - Low-noise Axial Flow; Quantity - 6; Power - 6.6 kW
Filter: Plate-type Preliminary Efficiency
Auxiliary Electric Heating (Optional): Power 72kW, Energy Regulation 0, 50, 100%
Dimensions: Length 5620mm, Width 2200mm, Height 2600mm
Weight: 4,600 kg
Ex db eb ib mb lIB T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
YingTeng explosion-proof air conditioners are marked with Ex db eb ib mb lIB T4 Gb.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
1. Cooling nominal operating conditions: Indoor return air dry bulb temperature 27°C, wet bulb temperature 19°C; outdoor ambient air dry bulb temperature 35°C.
2. Heating nominal operating conditions: indoor return air dry bulb temperature 20°C, hot water inlet temperature 19°C; steam pressure 0.2 MPa;
3. The beauty method can be chosen from electric heating, hot water heating, or steam heating; electric regulating valves are required for hot water and steam heating.
4. The ambient temperature during the unit's refrigeration operation must not be below 18°C; if a specific requirement is needed for ordering, it must be clearly stated.
5. Specifications may be changed or updated without prior notice due to product improvement.
This product series complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 "d""
GB/T 3836.3-2021 "Explosive Atmospheres - Part 3: Equipment protected by increased safety "e""
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
Explosion-proof air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
"YingTeng" explosion-proof air conditioning series models have been specially processed with explosion-proof technology, making them suitable for 1 and 2 risk zones prone to flammable and explosive substances. They are widely used in scientific research, petrochemical, pharmaceutical, power plant, and other facilities where IIA, IIB class T1-T4 combustible gases, steam, and air mixtures may form explosive hazards. These explosion-proof air conditioners are ideal for environments requiring specific temperature control. YingTeng explosion-proof air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Product Quality, receiving both explosion-proof and explosion-proof CCC certificates. They feature an attractive appearance, reasonable design, and easy installation and maintenance. The full series uses branded compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and reliable safety. These units are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
Roof-mounted explosion-proof air conditioning units are a full-air system designed for indoor air treatment, integrating functions such as cooling, heating, dehumidification, humidification, ventilation, and air purification into medium to large-sized air conditioning equipment. This product combines modular air handling units with direct expansion air conditioning technology, enabling centralized and integrated control of cooling and air conditioning, featuring high efficiency and energy saving, simple system, stable performance, compact structure, high control accuracy, safety and reliability, low noise, high static pressure, minimal vibration, high corrosion resistance, good sealing, excellent rain and dust protection, easy installation, and attractive appearance. The microcomputer control ensures the product's performance and quality are fully realized and showcased.
The unit is divided into two sections: the compression and condensation section, and the air handling section. The compression and condensation section is assembled in a modular manner, while the air handling section features a modular design divided by function. The casing is constructed with a cold bridge-free aluminum alloy frame and a polyurethane sandwich panel made of double-sided steel plates. The unit's combination methods are versatile and flexible, allowing for easy installation on rooftops or outdoor open spaces without the need for a dedicated machine room. The product is suitable for large industrial sites such as factories and workshops in areas with不便 access to water or limited water resources, as well as for full-air conditioning systems in comfort-oriented spaces like hospitals, shopping malls, supermarkets, restaurants, and office buildings.
Roof-mounted Explosion-Proof Air Conditioning Unit Product Features
1. Comprehensive Variety & Specifications: Rooftop air conditioning units are divided into three series based on function: Cold Air Type (L), Heat Pump Type (R), and Constant Temperature and Humidity Type (H). The Constant Temperature and Humidity Type is suitable for process air conditioning environments with high requirements for temperature and humidity, while the Cold Air Type and Heat Pump Type are ideal for comfort air conditioning spaces.
Products are available for customization in cooling capacities ranging from 12kW to 490kW, catering to requirements for different high air volume and space-specific air conditioning applications.
Products are categorized into series such as standard, purification, and 100% fresh air types, which are available with a range of optional function modules for easy realization of cooling, heating, dehumidification, humidification, air purification, noise reduction, and energy-saving fresh air functions.
2. No dedicated machine room required, save on investment: The series of units are treated with anti-corrosion and waterproofing, allowing the entire unit to be placed on the roof or outdoor space without a machine room, saving on building space and construction investment costs: The units are a full-air system with no cooling water or chilled water systems, which saves on accessories such as chilled water pumps, cooling water pumps, cooling towers, fan coils, and piping.
Investment readiness has reduced the construction cost. 3. Convenient transportation and easy installation: The unit design features two structural types: Standard and Purification. Standard units with cooling capacities below 140kW are designed as an integrated structure, while those above 140kW are split structures, facilitating transportation and installation. Purification units are modularly designed, with configurable functional sections as needed, offering simple configuration and flexibility. The volume of each functional section
Compact, lightweight, and customizable according to on-site conditions; easy to transport and install. 4. Cold bridge-free frame, low air leakage rate: The air treatment sections use a cold bridge-free aluminum alloy frame, with panels made of polyurethane high-pressure foam insulated boards (outer panel: electrostatically coated steel plate, inner panel: galvanized steel plate). The frame and panels are equipped with special sealing insulating strips and a unique outdoor rainproof structure design, ensuring the unit's outdoor operation is secure and efficient.
With required corrosion and rust resistance, vibrant colors, and a stylish appearance. 5. The unit employs a renowned fully enclosed scroll compressor, ensuring smooth operation, reliable performance, and high refrigeration efficiency: Customized units with heat recovery for energy-saving and environmental protection can also be provided upon customer request.
6. Equipped with a direct-drive low-noise axial fan and a rear-tilted centrifugal blower, effective vibration isolation measures are in place to ensure smooth and reliable operation of the unit with low noise and minimal vibration.
7. A variety of refrigeration components and control elements are from internationally renowned brands, featuring high system reliability and stable performance.
8. Both the evaporator and condenser are copper-tube-aluminum-fin heat exchangers, designed and optimized by computer and manufactured on a dedicated heat exchanger production line, ensuring high efficiency and energy savings.
9. Standard units are equipped with intelligent instrument control, and industrial-grade programmable logic controllers (PLC) can be optionally selected according to customer requirements. Standard configurations of purification units include industrial-grade PLC control, operating on optimized programs. They also feature self-diagnosis and fault alarm functions. The controller is equipped with a standard RS485 communication interface, enabling convenient remote control from a distance or connection with intelligent control systems, ensuring optimal equipment operation efficiency and reduced operating costs.
10. The return air of the unit can be in various types, such as horizontal air supply, side air supply on both sides of the unit, updraft, and downdraft. It is particularly suitable for改造old building's air conditioning systems (simply reroute the existing return air ducts to connect with the main unit on the roof): Additionally, replacing the main unit that has reached its service life is also convenient, eliminating any concerns for the customer.
11. The units can be treated for explosion-proof and corrosion resistance according to specific requirements of the application. They are widely used in industries such as oil, chemical, metallurgy, and pharmaceuticals. The explosion-proof marking for the units is Ex db eb ib mb ll BT 4 Gb; there are also products with the explosion-proof marking Ex db eb ib mb ll cT 4 Gb. Please consult and confirm with our technical department before placing an order.
Roof-Type Explosion-Proof Air Conditioning Unit Ordering Instructions
Customers may select and combine various functional sections based on their needs. It is recommended to provide a diagram illustrating the combination of functional sections when placing an order, and the following data: (No need to provide for standard units) 1. Cooling and heating requirements and heating method. Please note that the cooling capacity in the performance parameter table does not take into account the change in heat dissipation caused by the power change of the fan due to the change in external pressure of the unit.
2. Function section names, quantities; refer to Section 6, examples of function section combinations.
3. Provide excess pressure outside the machine
4. If there is a fresh air section, the user must provide the fresh air volume and conditions. Standard fresh air conditions are dry bulb temperature 35°C and wet bulb temperature 28°C.
5. Standard configuration includes a pleated non-woven fabric pre-filter and a bagged non-woven fabric medium-efficiency filter:
6. Aircraft Operating Surface Agreement: The operating surface facing the airflow direction, on the right side, is referred to as right-hand, denoted by "Y"; on the left side, it is referred to as left-hand, denoted by "Z." The definition of the operating surface includes the inspection door side, system in and out pipes, heat medium in and out pipes, condensate discharge side, and the operating side.
7. Are you requiring a damper and its type (manual or electric)? If not specified, the product will not include a damper.
8. Do you need a remote control box, and what is the desired length of the remote control cable?
9. Electric regulating valves must be selected for hot water and steam heating units.
10. The ambient temperature should not be below 18°C during the cooling operation of a single-cooling unit; this must be specified clearly when placing an order.
Roof-mounted Explosion-proof Air Conditioning Unit Functional Segment Combination Description
The functional sections of the air treatment part offer various combinations, allowing users to flexibly select according to their actual needs.
b. The air handling section of the aforementioned unit has additional functional module combinations that can be added or removed as needed.
c, The air handling section of the unit also offers more functional modules for user selection, such as sound-absorbing sections, heat recovery sections, and ozone purification sections, etc.
d. Explosion-proof rooftop air conditioning units are a specialty product of our company, suitable for use in flammable, explosive, and other specific locations. Please consult our technical department for more details.
e. General type and basic function section unit performance parameters and appearance drawings are available in this sample. Performance parameters and outdoor static pressure can be adjusted according to the actual needs of the user. For details, please consult our technical department.
f. There are various return air delivery methods, such as top return, side return, and bottom return, and the same applies to supply air, with options like top supply, side supply, end supply, and bottom supply. Choose flexibly based on your needs; just specify the delivery method when placing your order.
