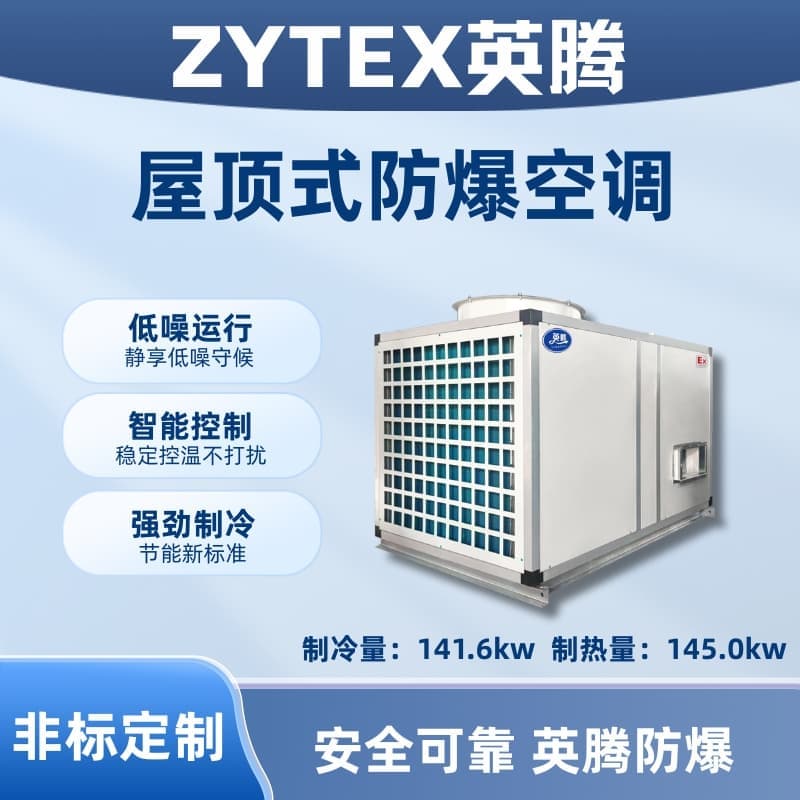

Yinteng Rooftop Explosion-Proof Air Conditioner
Product Specifications
Model: BZKT-140Ex
Brand: YingTeng
Cooling Capacity (KW): 141.6
Heating Output (KW): 145.0
Energy Adjustment (%): 0/25/50/100
Airflow (m³/h): 24,000
Static Pressure Outside the Machine (Pa): 500
Temperature Range and Accuracy: 18-32℃ ±2℃
Power: 380V/50Hz, three-phase four-wire system
Rated Cooling/Heating Power (kw): 54.5/52.9
Compressor Type/Quantity: Enclosed Scroll Type/4
Evaporator and condenser type: Copper tube with aluminum fin arrangement
Blower Type/Power (KW): Double-inlet centrifugal (belt-driven) / 11
Condenser Fan Type/Power (KW): Low-noise Axial/4x4.4
Air Filter: Plate-type Pre-Effective/G4
Electric heating power (KW): 42
Dimensions: Length 3800mm, Width and Height TBAx2200x1920
Weight (kg): 2710
Ex db eb ib mb lIB T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
YingTeng explosion-proof air conditioner features the explosion-proof mark Ex db eb ib mb lIB T4 Gb.
Note: The above technical specifications are for reference only; the physical unit shall prevail.
1. Refrigeration nominal operating conditions: Indoor return air dry bulb temperature 27°C, wet bulb temperature 19°C; outdoor ambient air dry bulb temperature 35°C.
2. Heating Nominal Operating Conditions: Indoor return air dry bulb temperature 20°C, hot water inlet temperature 19°C; steam pressure 0.2 MPa.
3. The beauty method can be chosen from electric heating, hot water heating, or steam heating. Electric regulating valves are required for hot water and steam heating.
4. The ambient temperature should not be below 18°C during the unit's refrigeration operation; if there is a specific requirement for ordering, please clarify.
5. Specifications may be modified or updated without prior notice.
This series of products complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by explosion-proof enclosures 'd'"
GB/T 3836.3-2021 "Explosive Atmospheres - Part 3: Equipment protected by increased safety "e""
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"
Explosion-proof air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7°C to 43°C, free from corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof air conditioners are suitable for areas with temperature requirements. The YingTeng explosion-proof air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Roof-mounted explosion-proof air conditioning units are all-air systems designed for indoor air treatment, integrating cooling, heating, dehumidification, humidification, ventilation, and air purification functions into medium to large-sized air conditioning equipment. This product combines modular air handling units with direct expansion air conditioning technology, enabling centralized comprehensive control of cooling and air conditioning. It features high efficiency and energy saving, simple system, stable performance, compact structure, high control accuracy, safety and reliability, low noise, high static pressure, minimal vibration, high corrosion resistance, good sealing, excellent rain and dust resistance, easy installation, and attractive appearance. The microcomputer control highlights and maximizes the product's performance and quality.
The unit is divided into two sections: the compression condensation section and the air handling section. The compression condensation section is assembled in a modular manner, while the air handling section features a modular design by function. The housing is constructed with a cold-bridge-free aluminum alloy frame and a polyurethane sandwich panel with double-sided steel plates. The unit's assembly methods are versatile and easy to install, suitable for placement on rooftops or outdoor open areas without the need for a dedicated machine room. The product is ideal for large industrial sites such as factories and workshops in areas with limited water access or water scarcity, and can also be used for full-air conditioning systems in comfort-oriented places like hospitals, malls, supermarkets, restaurants, and office buildings.
Roof-mounted Explosion-proof Air Conditioning Unit Product Features
1. Comprehensive Variety and Specifications: Roof-mounted air conditioning units are divided into three series based on function: Cold Air Type (L), Heat Pump Type (R), and Constant Temperature and Humidity Type (H). The Constant Temperature and Humidity Type is suitable for process air conditioning environments with high requirements for temperature and humidity, while the Cold Air Type and Heat Pump Type are suitable for comfort air conditioning environments.
Products are available for custom production with cooling capacities ranging from 12kW to 490kW, catering to the needs of different high airflow and space air conditioning applications.
Products are categorized into series such as standard, purification, and 100% outdoor air types, with optional functional modules for easy implementation of various functions, including cooling, heating, dehumidification, humidification, air purification, noise reduction, and energy-saving fresh air.
2. No dedicated machine room required, saving investment: The frame of this series of units is treated with anti-corrosion and waterproofing, allowing the entire unit to be placed on the roof or outdoor space, eliminating the need for a machine room and saving on building space and construction investment costs: The unit is a full-air system, without a cooling water or chilled water system, thus saving on auxiliary equipment such as chilled water pumps, cooling water pumps, cooling towers, fan coils, and piping.
Investment-ready, reducing the construction cost. 3. Convenient transportation and easy installation: The unit design features two structural types: Standard and Purification. The Standard unit, with a cooling capacity below 140kW, is designed as an integrated structure, while above 140kW, it is a split structure, facilitating transportation and installation. The Purification unit is modular, with customizable functional sections, simple configuration, and versatile options. The volume of each functional section
Small, lightweight, and customizable to fit on-site conditions, easy to transport and install. 4. Cold bridge-free frame, low air leakage rate: The air treatment sections use cold bridge-free aluminum alloy frames, with panels made of polyurethane high-pressure foam insulated boards (outer panel: electrostatically coated steel plate, inner panel: galvanized steel plate). The frame and panels are equipped with special sealing insulating strips and a unique outdoor rainproof structure design, ensuring the unit's outdoor operation is secure.
With required corrosion and rust resistance, vibrant colors, and aesthetic appeal. 5. The unit is equipped with a renowned fully enclosed screw compressor, ensuring smooth operation, reliable performance, and high refrigeration efficiency: According to customer requirements, non-standard heat recovery units can also be provided for energy-saving and environmental protection.
6. Equipped with a direct-drive low-noise axial fan and a rear-tilted centrifugal blower, effective vibration isolation measures are in place to ensure smooth and reliable operation of the unit, with low noise and minimal vibration.
7. A variety of refrigeration components and control devices are from international renowned brands, with high system operation reliability and stable performance.
8. Both evaporators and condensers are copper tube-aluminum fin heat exchangers, designed and optimized by computer and manufactured on a dedicated heat exchanger production line, offering high efficiency and energy savings.
9. Standard units are equipped with intelligent instrument control and can be optionally fitted with industrial-grade programmable logic controllers (PLCs) according to customer requirements. Standard purification units are configured with industrial-grade PLC control, operating on optimized programs. They also feature self-diagnosis and fault alarm functions. The controllers are equipped with standard RS485 communication interfaces, allowing for convenient remote control from a distance or connection to intelligent control systems, ensuring optimal equipment efficiency and reduced operating costs.
10. The unit's return air can be in various forms such as horizontal air supply, side air supply on both sides of the unit, upward air supply, and downward air supply, making it particularly suitable for改造old building air conditioning systems (simply reroute the existing return air ducts to the roof to connect to the main unit): Additionally, replacing the main unit that has reached the end of its service life is also very convenient, alleviating any concerns for the users.
11. According to specific requirements of the application, the unit can be treated for explosion-proof and corrosion resistance. It can be widely used in industries such as petroleum, chemical, metallurgy, and pharmaceuticals. The explosion-proof marking for the unit is ExdbebibmbllBT4Gb. There are also products with the explosion-proof marking ExdbebibmbllcT4Gb. Please contact our technical department for confirmation before placing an order.
Roof-type Explosion-Proof Air Conditioning Unit Order Instructions
Users may select and combine various function segments according to their needs. When placing an order, it is recommended to provide a diagram illustrating the combination of function segments and the following data: (Standard units do not require this information) 1. Cooling and heating requirements and heating method; note that the cooling capacity in the performance parameters table does not account for the change in air handler power due to the change in external pressure, which may affect the heat dissipation. Please select the model accordingly.
2. Section names, quantities; refer to Section 6, examples of section combinations.
3. Provide excess pressure outside the machine.
4. If there is a fresh air section, the user must provide the fresh air volume and conditions. Standard fresh air conditions are dry bulb temperature 35°C, wet bulb temperature 28°C.
5. Standard configuration includes a panel-type non-woven fabric pre-filter, and a bag-type non-woven fabric medium-efficiency filter:
6. Aircraft Operating Surface Agreement: The operating surface facing the airflow direction is considered right-hand, denoted as Y; the operating surface facing the left is left-hand, denoted as Z. The definition of the operating surface includes the inspection door side, system inlet and outlet pipes, heat medium inlet and outlet pipes, condensate discharge side, and the operating side.
7. Do you require a damper and what type (manual or electric)? If not specified, the product will not include a damper.
8. Do you need a remote control box, and what is the desired length of the remote control cable?
9. Electric regulating valves must be selected for hot water and steam-heated units.
10. The ambient temperature during the refrigeration of a single-cooling unit must not be below 18°C; please specify if required when placing an order.
Roof-mounted Explosion-proof Air Conditioning Unit Functional Segment Combination Description
a. The functional sections of the air treatment unit offer various combinations, allowing users to flexibly select according to their actual needs.
b. The air handling section of the aforementioned unit also features additional functional module combinations that can be added or removed as needed.
c, The air handling section of the unit offers additional functional modules for user selection, such as noise reduction sections, heat recovery sections, ozone purification sections, etc.
d. Our explosion-proof rooftop air conditioning units are a specialty product, suitable for use in flammable and explosive environments. Please consult our technical department for more details.
e. General models and basic function section unit performance parameters and appearance drawings are available in this sample. Performance parameters and outdoor static pressure can be adjusted according to the actual needs of the user. For details, please consult our technical department.
f. There are various return air delivery methods, such as top return, side return, and bottom return. The supply air methods include top supply, side supply, end supply, and bottom supply. Choose flexibly according to your needs; just specify the delivery method when placing your order.
