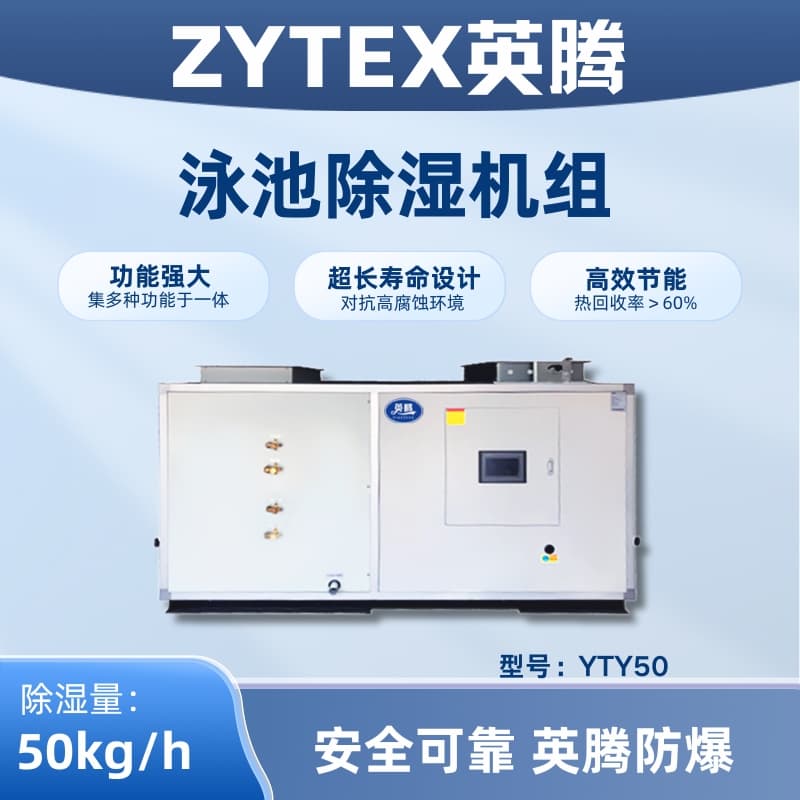

YingTeng Swimming Pool Dehumidification Air Conditioning Unit Specifications
Brand: YingTeng
Model: YTY50
Dehumidification Rate (30℃ - 80%): 50 kg/h
Cooling capacity: 70 kW
*Large excess heat return: 76KW
Recirculating Airflow: 12,000 m³/h
New Airflow: 5000 m³/h
Static Pressure Outside the Machine: 100 - 600 Pa adjustable
Aircraft Noise Level: 68 dB(A)
Temperature and humidity range: 28℃ ±3℃; 55-70% ±5%
Power Supply: 380V/3 - 50Hz
Total installed power: 28.5 KW
Evaporator / Compressor Type: Copper tube sleeve anti-corrosion fin -- Fully enclosed scroll type
Single Refrigeration Power/Quantity: 9.0/2KW
Compensation Heating Type: Electric Heating / Hot Water Heating
Electric Heating Power (KW) / Hot Water Flow (m³/h): 42/7.2
Residual hot water heating capacity (KW) / hot water flow rate (m³/h): 30/5.2
Fan Drive Type: Low Noise Double Inlet Centrifugal / Internal Rotor / Belt Drive
Fan Motor Power: 7.5 kW
Blower Power: 4.0KW
Air Filters: Plate Type G5, Plate Type G5 + Bag Type F6
Dimensions: 4500*1500*1800mm
Weight: 1380 Kg
Liquid Tube / Gas Tube (mm): 15.88, 19.052
External Machine Quantity: B/2
(Outdoor Unit Types: Type A: 850*850*960mm - 120KG - 0.55KW, Type B: 1500*850*1160mm - 260KG - 1.1KW, Type C: 2400*1200*1600mm - 420KG - 2.2KW)
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Inten Swimming Pool Dehumidification Air Handling UnitAn indoor swimming pool air quality control device that integrates refrigeration temperature control, dehumidification, pool water heating, fresh air, and purification; it achieves temperature and humidity control requirements through refrigeration dehumidification cooling, waste heat recovery, and centralized air purification control.
Yinteng Swimming Pool Dehumidification Air Conditioning UnitProduct Features
Energy-saving and environmentally friendly: The unit utilizes heat pump technology to achieve energy recycling, saving operation costs; ensures environmental safety.
Safety and Reliability: Equipped with internationally branded refrigeration system components and patented system design, featuring flame-retardant, moisture-proof, and corrosion-resistant materials for safety and reliability.
Powerful Functionality: Combines dehumidification, temperature control, swimming pool heating, fresh air purification, and more into one unit; avoids the mixing installation of multiple units to prevent interference with each other.
Operation Simple: Equipped with PLC intelligent control, one-touch start/stop via a touch screen: full Chinese prompts for easy operation, no training required.
Quiet Operation: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; also, the compressor is externally mounted or equipped with a dual-stage vibration reduction device, isolating it from the air handling system, ensuring noise does not interfere or overlap; further, the interior panels are lined with insulation and sound-absorbing cotton, resulting in extremely low noise levels.
YingTeng Swimming Pool Dehumidification Air Conditioning Unit Working Principle
This series offers a variety of dehumidifier unit models. Please select the appropriate type based on the specific conditions of the dehumidification project space and the site engineering system for easy installation, commissioning, maintenance, and normal operation of the equipment later on.
The dehumidification capacity marked on this unit is the nominal dehumidification capacity at rated conditions, i.e., the dehumidification capacity measured under the intake conditions with a dry bulb temperature of 30°C and a relative humidity of 80%. To ensure consistency in the calculation conditions, please provide a detailed description of the specific situation at the current construction site, so that our technical staff can make an accurate selection.
