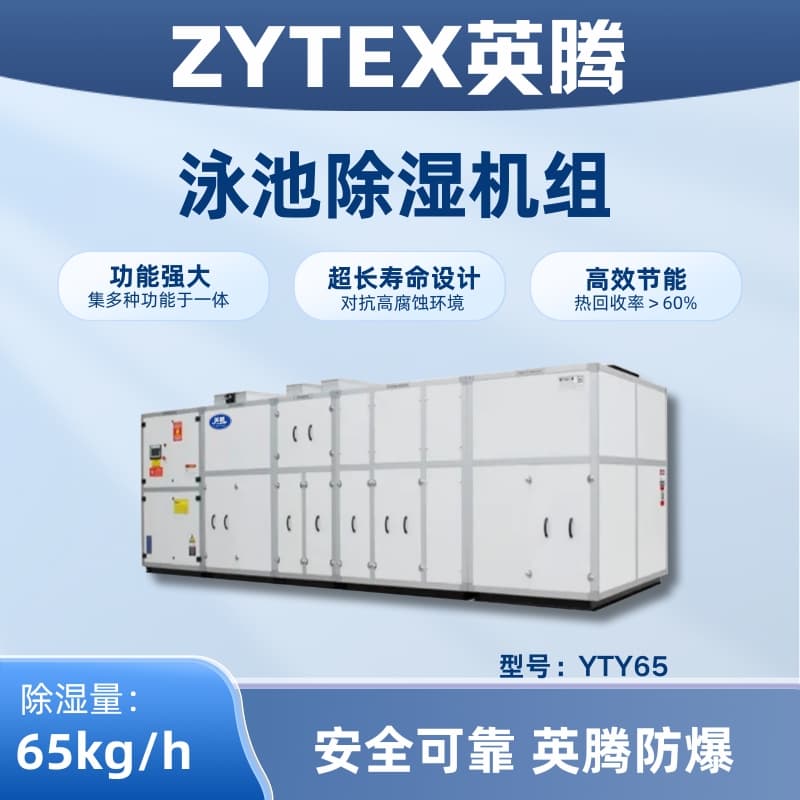

YingTeng Swimming Pool Dehumidification Unit Specifications
Brand: YingTeng
Model: YTY65
Dehumidification Rate (30℃ - 80%): 65kg/h
Cooling Capacity: 85 kW
*Large excess heat return: 93 kW
Recirculating Airflow: 15,000 m³/h
New Airflow: 6000 m³/h
Static Pressure Outside the Machine: 100 - 600 Pa adjustable
Aircraft noise: 70 dB(A)
Temperature and humidity range: 28℃ ±3℃; 55 - 70% ±5%
Power Supply: 380V/3 - 50Hz
Total installed power: 33KW
Evaporator / Compressor Type: Copper tube sheathed anti-corrosion fin -- Full enclosed scroll
Single Refrigeration Power/Quantity: 9.5/2 kW
Compensation Heating Type: Electric Heating / Hot Water Heating
Electric heating power (KW) / Hot water flow (m³/h): 50/8.6
Residual hot water heating capacity (KW) / hot water flow rate (m³/h): 40/6.8
Fan Drive Type: Low Noise Double Inlet Centrifugal / Internal Rotor / Belt Drive
Fan Motor Power: 7.5 kW
Blower Power: 4.0KW
Air Filter: Plate Type G5, Plate Type G5 + Bag Type F6
Volume: 4500*1500*1800mm
Weight: 1520 Kg
Pipe / Gas Pipe (mm): 15.88, 19.052
Outboard Quantity: B/2
(Outdoor Unit Types: A Type: 850*850*960mm - 120KG - 0.55KW, B Type: 1500*850*1160mm - 260KG - 1.1KW, C Type: 2400*1200*1600mm - 420KG - 2.2KW)
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical parameters are for reference only, and the actual machine shall prevail.
YingTeng Swimming Pool Dehumidification Air Conditioning UnitAn indoor swimming pool air quality control device that integrates refrigeration temperature control, dehumidification, pool water heating, fresh air supply, and purification; it achieves constant temperature and humidity control through chilled dehumidification cooling, waste heat recovery, and centralized air purification control.
YingTeng Swimming Pool Dehumidification Air Conditioning UnitProduct Features
Energy-saving and environmental protection: The unit utilizes heat pump technology for energy recycling, reducing operation costs; ensures environmental safety.
Safety and Reliability: Equipped with internationally branded refrigeration system components and patented system design, the product features flame-retardant, moisture-proof, and corrosion-resistant materials for enhanced safety and reliability.
Powerful Functionality: Combines humidification control, pool water heating, fresh air purification, and more into one unit; avoids mixed installation of multiple units to prevent interference.
Operation simple: Equipped with PLC intelligent control, touch screen one-touch start/stop: full Chinese prompts for easy operation, no training required.
Quiet Operation: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; also utilizes external or dual-stage vibration damping devices for the compressor to isolate it from the air handling system, ensuring noise does not interfere or overlap; in addition, the inner side of the panels is lined with insulating and sound-absorbing cotton, resulting in extremely low noise levels.
Principle of operation for Yingteng Swimming Pool Dehumidification Air Conditioning Unit
This series offers a variety of dehumidifier unit models. Please select the appropriate one based on the specific on-site space and engineering system of the dehumidification project, for ease of subsequent installation, tuning, maintenance, and normal operation.
The dehumidification capacity marked on this unit is the nominal dehumidification capacity under rated conditions, i.e., the dehumidification capacity measured under the intake conditions with a dry bulb temperature of 30°C and a relative humidity of 80%. To ensure consistency in the calculation conditions, please provide a detailed description of the specific situation at the current construction site, so that our technical staff can accurately select the model.
