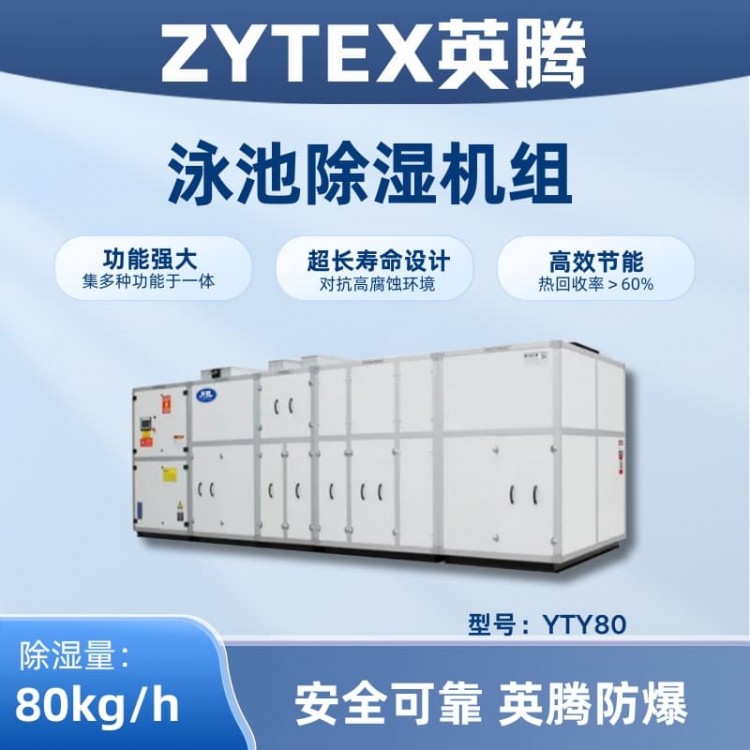

YingTeng Swimming Pool Dehumidification Unit Specifications
Brand: Yingten
Model: YTY80
Dehumidification Capacity (30℃ - 80%): 80kg/h
Cooling Capacity: 105 kW
*Large excess heat return: 115 kW
Airflow Rate: 18,000 m³/h
New air volume: 7200 m³/h
Static Pressure (out of the engine): adjustable from 300 - 800 Pa
Aircraft Noise: 71 dB(A)
Temperature and Humidity Range: 28℃ ±3℃; 55-70% ±5%
Power: 380V/3 - 50Hz
Total installed power: 41 kW
Evaporator / Compressor Type: Copper tube sheathed anti-corrosion fin -- Fully enclosed scroll type
Single Refrigeration Power/Quantity: 9.5/3 kW
Compensation Heating Type: Electric Heating / Hot Water Heating
Electric Heating Power (KW) / Hot Water Flow (m³/h): 60/10.5
Residual hot water heating capacity (KW) / hot water flow rate (m³/h): 50/8.6
Fan Drive Type: Low Noise Double-Inlet Centrifugal / Internal Rotor / Belt Drive
Fan Power: 9.0 kW
Blower Power: 5.5KW
Air Filter: Plate Type G5, Plate Type G5 + Bag Type F6
Dimensions: 5000*2200*2100mm
Weight: 1860 Kg
Liquid Tube / Gas Tube (mm): 19.05 * 3, 28.6 * 3
Outboard Quantity: B/3
(Outdoor Unit Type: A Type: 850*850*960mm - 120KG - 0.55KW B Type: 1500*850*1160mm - 260KG - 1.1KW C Type: 2400*1200*1600mm - 420KG - 2.2KW)
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
Yingteng Swimming Pool Dehumidification Air Conditioning UnitAn indoor swimming pool air quality control device that integrates refrigeration temperature control, dehumidification, pool water heating, fresh air supply, and purification; it achieves constant temperature and humidity control through refrigeration dehumidification cooling, waste heat recovery, and centralized air purification control.
YingTeng Swimming Pool Dehumidification Air Conditioning UnitProduct Features
Energy-saving and Environmental Protection: The unit utilizes heat pump technology for energy recycling, reducing operating costs; ensures environmental safety.
Safety & Reliability: Equipped with internationally branded refrigeration system components, patented system design, and flame-retardant, moisture-proof, and corrosion-resistant materials for safety and reliability.
Powerful Features: Combines dehumidification, temperature control, pool water heating, fresh air purification, and more into one unit; avoids mixed installation of multiple units; prevents mutual interference.
Operation Simple: Equipped with PLC intelligent control, one-touch start/stop via a touch screen: full Chinese prompts for easy operation, no training required.
Quiet Operation: Equipped with the *latest fully enclosed low-noise compressor, featuring minimal vibration and low noise levels; the compressor is externally mounted or equipped with a dual-stage vibration reduction device, isolating it from the air handling system, ensuring noise does not interfere or overlap; additionally, the inner walls are lined with insulating sound-absorbing cotton, resulting in extremely low noise levels.
YingTeng Swimming Pool Dehumidification Air Conditioning Unit Working Principle
This series of dehumidification units comes in various models. Please select the appropriate type based on the specific space and engineering system of the dehumidification project site to facilitate the later installation, adjustment, maintenance, and normal operation of the equipment.
The dehumidification capacity marked for this unit is the nominal dehumidification capacity under rated operating conditions, i.e., the dehumidification capacity measured under the intake conditions with a dry bulb temperature of 30°C and relative humidity of 80%; to ensure consistency in calculation conditions, please provide a detailed description of the specific situation at the current project site so that our technical staff can accurately select the appropriate model.
