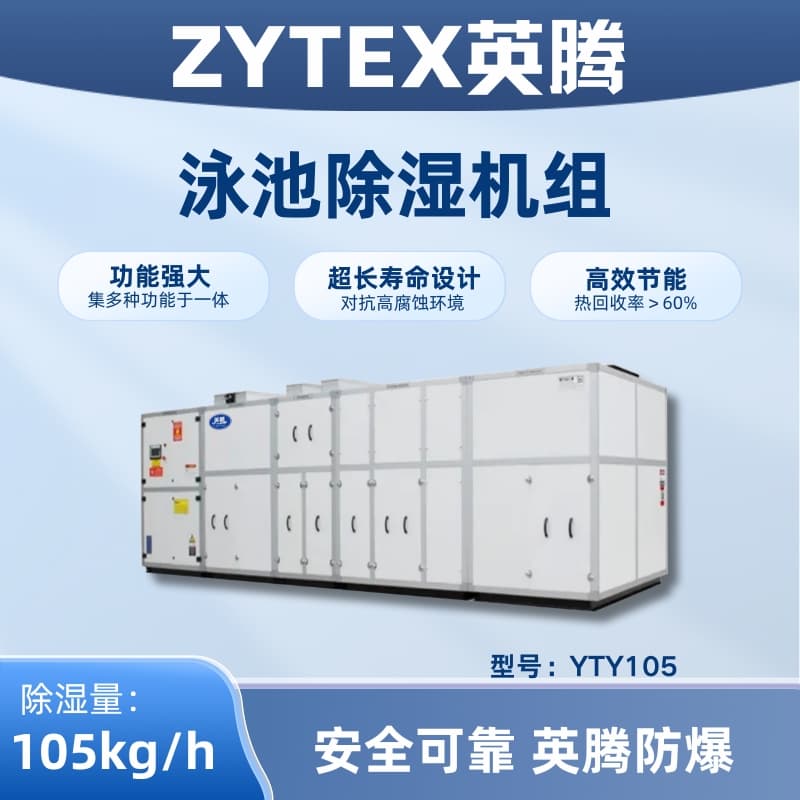

YingTeng Swimming Pool Dehumidification Air Conditioning Unit Specifications
Brand: YingTeng
Model: YTY105
Dehumidification Capacity (30℃ - 80%): 105 kg/h
Cooling Capacity: 140 kW
Excess Heat Recovery Quantity: 155 kW
Airflow Rate: 24,000 m³/h
New air volume: 9500 m³/h
Static Pressure Outside the Machine: adjustable from 300 to 800 Pa
Aircraft noise level: 73 dB(A)
Humidity and Temperature Range: 28℃ ± 3℃; 55 - 70% ± 5%
Power: 380V/3 - 50Hz
Total installed power: 65 kW
Evaporator / Compressor Type: Copper tube sheathed anti-corrosion fin -- Fully enclosed scroll type
Single Cooling Power/Quantity: 9.5/4KW
Compensation Heating Type: Electric Heating / Hot Water Heating
Electric heating power (KW) / Hot water flow (m³/h): 85/15
Residual hot water heating capacity (KW) / hot water flow rate (m³/h): 60/10.5
Fan Drive Type: Low Noise Double Inlet Centrifugal / Internal Rotor / Belt Drive
Fan Motor Power: 15 kW
Blower Power: 5.5 KW
Air Filter: Plate Type G5, Plate Type G5 + Bag Type F6
Dimensions: 5000*2200*2100mm
Weight: 1980 Kg
Pipe (mm): 19.05 * 2, 28.6 * 2
Unit Quantity: C/2
(Outdoor Unit Types: A-Type: 850*850*960mm - 120KG - 0.55KW, B-Type: 1500*850*1160mm - 260KG - 1.1KW, C-Type: 2400*1200*1600mm - 420KG - 2.2KW)
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual physical unit should be taken as the standard.
YingTeng Swimming Pool Dehumidification Air Conditioning UnitAn indoor swimming pool air quality control equipment that integrates refrigeration and temperature control, dehumidification, pool water heating, fresh air, and purification; it achieves this through frozen dehumidification cooling, waste heat recovery, and centralized air purification control; meeting the requirements for constant temperature and humidity control.
Inten Swimming Pool Dehumidification Air Conditioning UnitProduct Features
Energy-saving and environmental protection: The unit utilizes heat pump technology for energy recycling, reducing operational costs; ensures environmental safety.
Safety & Reliability: Equipped with internationally branded refrigeration system components, featuring a patented system design, flame-retardant, moisture-proof, and corrosion-resistant materials for safety and reliability.
Powerful Functionality: Combines dehumidification, temperature control, swimming pool heating, fresh air purification, and more into one unit; avoids mixed installation of multiple units and interference between them.
Operation Simple: Equipped with PLC intelligent control, touch screen one-touch start/stop: full Chinese prompts make operation easy, no training required.
Quiet Operation: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; the compressor is isolated from the air handling system with an external compressor or dual-stage vibration reduction device, ensuring noise interference does not overlap; additionally, the interior wall panels are lined with insulating and sound-absorbing cotton, resulting in extremely low noise levels.
Principle of operation for Yingteng Swimming Pool Dehumidification Air Conditioning Unit
This series offers a variety of dehumidifier unit models. Please select the appropriate type based on the specific space and engineering system of the dehumidification project site to ensure smooth installation, commissioning, maintenance, and normal operation of the equipment later on.
The dehumidification capacity marked on this unit is the nominal dehumidification capacity under rated operating conditions, i.e., the dehumidification capacity measured under the intake conditions with a dry bulb temperature of 30°C and a relative humidity of 80%. To ensure consistency in the calculation conditions, please provide a detailed description of the specific situation at the current project site so that our technical staff can accurately select the appropriate model.
