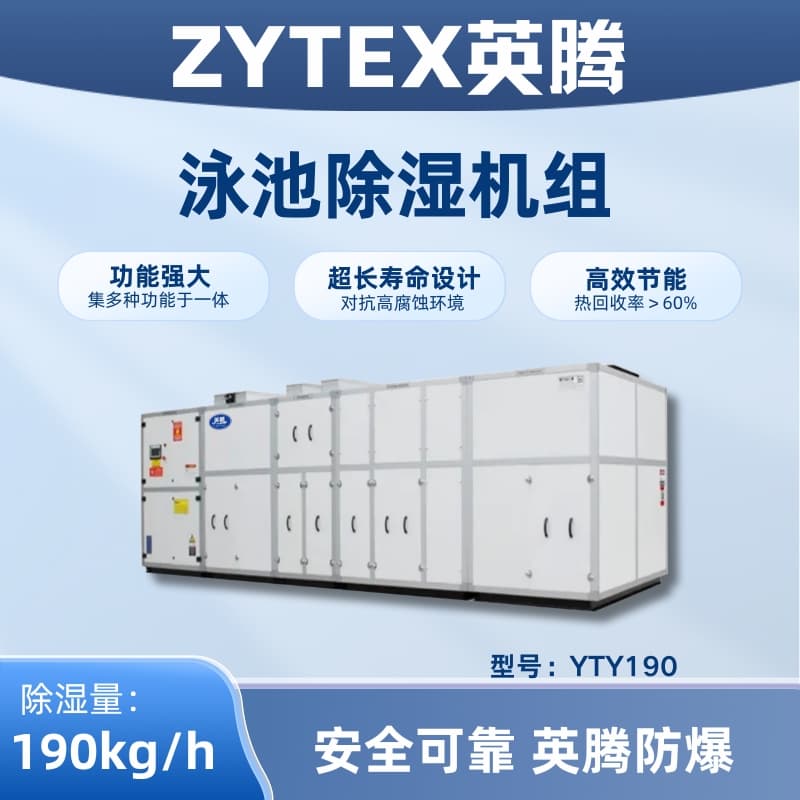

Yiting Swimming Pool Dehumidification Air Conditioning Unit Specifications
Brand: YingTeng
Model: YTY190
Dehumidification Rate (30℃ - 80%): 190 kg/h
Cooling Capacity: 250 kW
*Large excess heat return: 275 kW
Airflow: 45,000 m³/h
New air volume: 18,000 m³/h
Static Pressure outside the unit: adjustable from 300 to 800 Pa
Aircraft Noise Level: 86 dB(A)
Humidity and Temperature Range: 28℃ ±3℃; 55 - 70% ±5%
Power: 380V/3 - 50Hz
Total installed power: 110 kW
Evaporator / Compressor Type: Copper tube jacket with anti-corrosion fin -- Fully enclosed scroll type
Single Cooling Power/Quantity: 9.5/7 kW
Compensation Heating Type: Electric Heating / Hot Water Heating
Electric heating power (KW) / Hot water flow (m³/h): 150/26
Residual hot water heating capacity (KW) / hot water flow rate (m³/h): 110/19
Fan Drive Type: Low Noise Double Inlet Centrifugal / Internal Rotor / Belt Drive
Fan Power: 22KW
Fan Motor Power: 11KW
Air Filters: Plate Type G5, Plate Type G5 + Bag Type F6
Volume: 7,500*2,800*2,500 mm
Weight: 2,450 Kg
Liquid Tube / Gas Tube (mm): 19.05 * 4, 28.6 * 4
Unit Quantity: 3C + 1B
(Outdoor Unit Type: A Type: 850*850*960mm - 120KG - 0.55KW, B Type: 1500*850*1160mm - 260KG - 1.1KW, C Type: 2400*1200*1600mm - 420KG - 2.2KW)
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual product should be used as the standard.
YingTeng Swimming Pool Dehumidification Air Conditioning UnitAn indoor swimming pool air quality control device that integrates refrigeration temperature control, dehumidification, pool water heating, fresh air, and purification; it achieves temperature and humidity control requirements through refrigeration dehumidification cooling, waste heat recovery, and centralized air purification control.
Yiting Swimming Pool Dehumidification Air Conditioning UnitProduct Features
Energy-saving and environmental protection: The unit utilizes heat pump technology to achieve energy recycling, saving operation costs; ensures environmental safety.
Safety and Reliability: Equipped with internationally renowned brand refrigeration system components, patented system design, flame-retardant, moisture-proof, and corrosion-resistant materials for safety and reliability.
Powerful Features: Combines dehumidification, temperature control, swimming pool heating, fresh air purification, and more into one unit; avoids mixed installation of multiple units to prevent interference.
Operation Simple: Equipped with PLC intelligent control and a touch screen for one-touch start/stop; full Chinese prompts make operation straightforward, no training required.
Quiet Operation: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; the compressor is isolated from the air handling system with an external compressor or dual-stage vibration reduction device, ensuring noise does not interfere or overlap; in addition, the interior wall panels are lined with insulating and sound-absorbing cotton, resulting in extremely low noise levels.
The principle of operation for Yingteng Swimming Pool Dehumidification Air Conditioning Unit
This series of dehumidification units comes in various models. Please select the appropriate one based on the specific conditions of the dehumidification project's space and the on-site engineering system, for ease of later installation, commissioning, maintenance, and normal operation.
The dehumidification capacity indicated for this unit is the nominal dehumidification capacity under rated operating conditions, i.e., the dehumidification capacity measured under the intake conditions of a dry bulb temperature of 30°C and a relative humidity of 80%; for the consistency of calculation conditions, please provide a detailed description of the specific on-site situation of the current project, so that our technical staff can accurately select the appropriate model.
