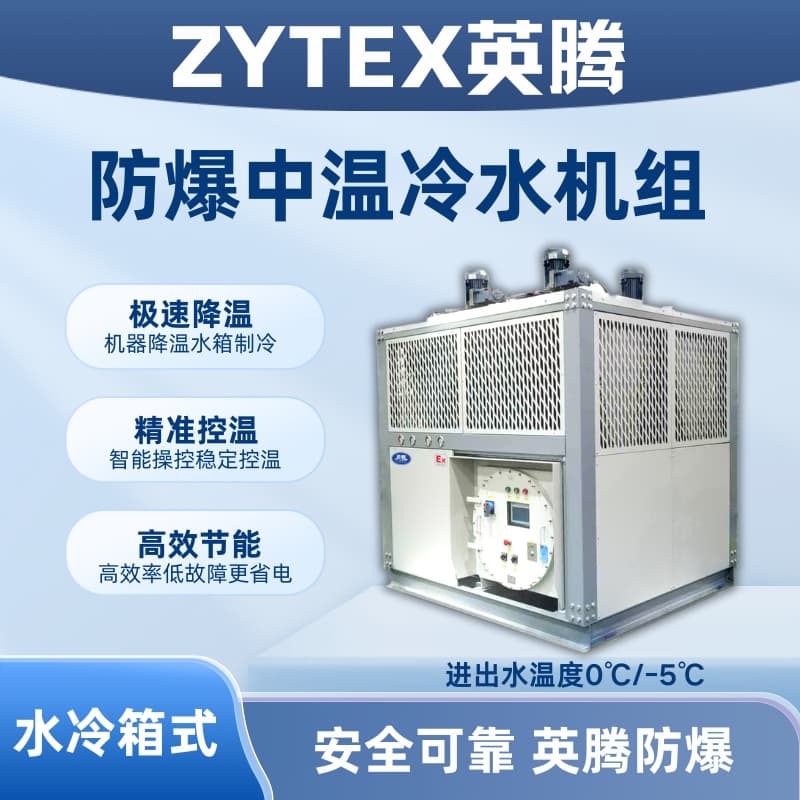

Inten Explosion-Proof Chilled (Hot) Water Unit Explosion-Proof Mark: ExdbibmbIIBT4Gb/ExdbibmbIICT4Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
The YingTeng explosion-proof cold (hot) water unit product series conforms to the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9-2021 "Explosive Atmospheres - Part 9: Equipment protected by encased "m""
GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng explosion-proof chilled (hot) water unit can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7°C to 43°C, free of corrosive gases.
c) There are explosion hazard areas formed by mixtures of flammable gases, vapors, and air, from groups II A, II B, T1 to T4.
The "YingTeng" explosion-proof cold (hot) water unit series has been specially processed with explosion-proof technology, making it widely applicable in Class 1 and 2 flammable and explosive environments. It is suitable for scientific research, oil, chemical, pharmaceutical, power plants, and other locations where IIA, IIB Group T1~T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof cold (hot) water units are ideal for areas with temperature requirements. These units have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, and hold both explosion-proof and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series employs brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
YingTeng Explosion-proof Cold (Hot) Water Chiller Unit Product Features
International brand compressor, optimized rotor structure, stable quality, reliable operation.
External expansion valve, precise control, excellent refrigeration effect.
High-efficiency heat exchangers with superior heat exchange energy ratio, featuring a unique design of cold and hot circulation partition plates.
High-quality liquid storage device, optimizes system operation, stable working condition.
High airflow, low noise, external rotor series axial fans, powerful airflow.
High-head, low-noise stainless steel water pumps from international brands, stable quality.
High-efficiency internal thread tube finned heat exchanger with unique turbulent flow window design, enhancing heat exchange efficiency.
Microcomputer controller with analog input/output, for precise control of the unit's temperature.
Inten Explosion-proof Cold (Hot) Water Chiller Series, with years of industry experience and continuous optimization and improvement on this basis, produces a series of high-quality chillers. The full series uses internationally renowned brands such as Copeland, Danfoss, Panasonic, Daikin compressors, including screw, piston, screw, semi-hermetic, and hermetic types. The complete machine is equipped with high-efficiency copper tube fins, condensers and evaporators made of industrial stainless steel, with materials up to industrial food grade quality. Electrical components are from world-renowned brands like Siemens, Schneider, and ABB. Reliable quality and excellent performance. The Inten explosion-proof chiller features compact size, low noise, high energy efficiency, long service life, and easy operation. Multiple refrigerants are available for selection, meeting the requirements for low temperatures and special environmental conditions.
The cold water machine control section utilizes a high-precision main control panel developed by Yingten, a PLC programmable controller, a human-machine interface, and full Chinese display. It enables full-process, fully automatic computerized adjustment and control, making the unit control more precise and reliable.
The Yinteng explosion-proof cold (hot) water unit is compact in structure, occupies little space, is lightweight, and easy to transport. It operates with balanced safety, low vibration, requires no complex foundation, and is easy to install. The unit features automatic protection functions: high and low-pressure protection, compressor protection, motor overload and overheating protection, anti-freezing protection, water cut-off protection for cold and cooling water, temperature-sensitive fusible plug, and safety valve.
