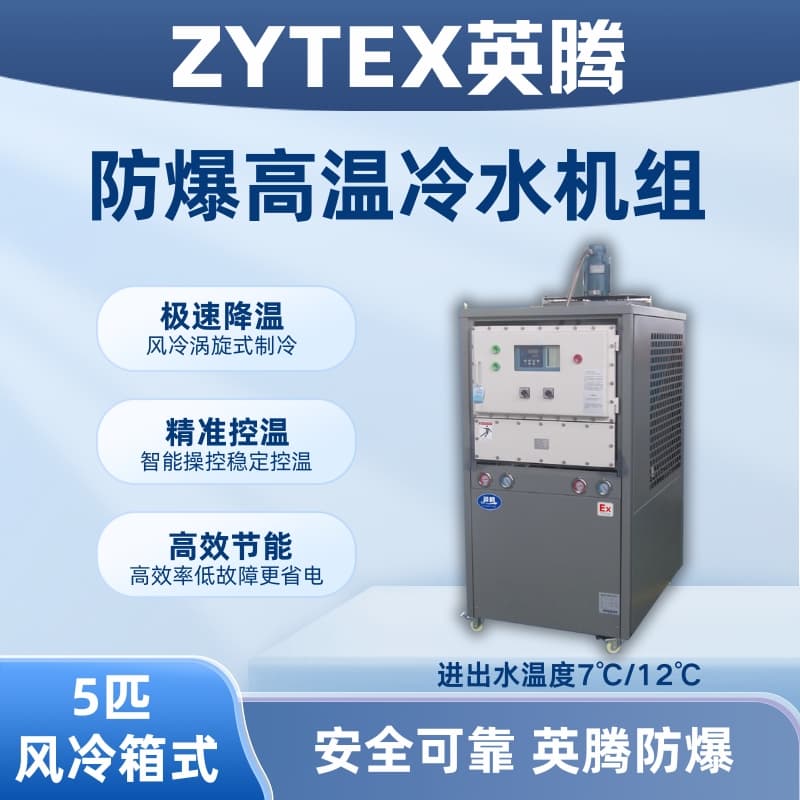

Inten Explosion-proof Chilled (Hot) Water UnitProduct Specifications
Specification: 5 HP
Brand: YingTeng
Cooling Capacity: 15.0 kW (12.9 × 10^3 kcal/h)
Power: 380V/3ph/50Hz
Total Power: 5.3 kW
Rated Current: 11.7A
Compressor Type: Scroll
Power: 4.2 kW
Pump Power: 0.55 kW
Flow Range: 28m
Flow Rate: 2.6 m³/h (43.3 L/min)
Water Tank Capacity: 70L
Assume Size DN25
Noise: 61 dB(A)
Engineered Weight: 185kg
Dimensions: Length: 750mm, Width: 750mm, Height: 1480mm
Ex db ib mb IIB T4 Gb / Ex db ib mb II CT4 Gb
Note: The above technical specifications are for reference only; the physical unit is the definitive standard.
The above cooling capacity is based on an ambient temperature of 35°C, an inlet water temperature of 12°C, and an outlet water temperature of 7°C.
Customizable Industrial Low-Temperature Chilled Water Units: -5°C Air-Cooled, -15°C Air-Cooled, -35°C Air-Cooled
Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.
Inten Explosion-Proof Cold (Hot) Water Chiller UnitThe series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by a "m" type of enclosure"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
Inten Explosion-Proof Cold (Hot) Water Chiller UnitOperates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
YingtengExplosion-proof Cold (Hot) Water Chiller UnitSeries models are processed with special explosion-proof technology, suitable for widespread use in Class 1 and Class 2 flammable and explosive environments. They are broadly applicable in research, oil, chemical, pharmaceutical, power plants, and other locations where there may be or could be explosive hazards formed by mixtures of II A, II B groups of combustible gases, steam, and air, ranging from T1 to T4.Explosion-proof Cold (Hot) Water Chiller UnitSuited for locations with temperature requirements.Explosion-proof Cold (Hot) Water Chiller UnitInspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certificates and explosion-proof CCC certificates; featuring an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance, the full range of productsExplosion-proof Cold (Hot) Water Chiller UnitInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and reliable safety, it is highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
Yinteng Explosion-proof Chilled (Hot) Water UnitProduct Features
International brand compressor, optimized rotor design, stable quality, reliable operation.
External expansion valve, precise control, excellent refrigeration effect.
High-end stainless steel plate heat exchangers offer excellent heat exchange efficiency ratio, featuring a unique design of cold and hot circulation partition plates.
High-quality liquid storage equipment, optimizes system operation, stable operational status.
High airflow, low noise, external rotor series axial fans, powerful airflow.
High-head, low-noise stainless steel pumps from international brands, stable quality.
High-efficiency internal threaded tube finned heat exchanger with a unique turbulent flow window design to enhance heat exchange efficiency.
Microcomputer controller with analog input/output, for precise control of the unit's temperature.
YitingExplosion-proof Cold (Hot) Water Chiller UnitComprehensive product line, meticulously crafted with years of industry experience and continuous optimization. We offer a range of high-quality chillers featuring international renowned brands like Copeland, Danfoss, Panasonic, Daikin compressors, including screw, reciprocating, and scroll types, as well as semi-hermetic and hermetic configurations. The units are equipped with high-efficiency copper fin tubes, industrial stainless steel condensers, and evaporators, with materials that meet industrial food-grade standards. Electrical components are from global brands such as Siemens, Schneider, and ABB. Reliable quality and superior performance. Yingteng explosion-proof chillers boast compact size, low noise, high energy efficiency, long lifespan, and easy operation. A variety of refrigerants are available for selection, catering to low-temperature and special environment requirements.
The cooling machine control section utilizes a high-precision main control panel developed by Yinteng, a PLC programmable controller, a human-machine interface, and full Chinese display. It enables full-process, fully automatic computerized adjustment and control, making the unit control more precise and reliable.
YingTengExplosion-proof Cold (Hot) Water Chiller UnitCompact structure, small footprint, lightweight, easy to transport. Balanced operation for safety, low vibration, no need for complex foundations, easy installation. Automatic protection features: high/low pressure protection, compressor protection, motor overload/overheat protection, anti-freezing protection, water cutoff protection for cold water/cooling water, temperature-sensitive fusible plug, safety valve.
