Product Description

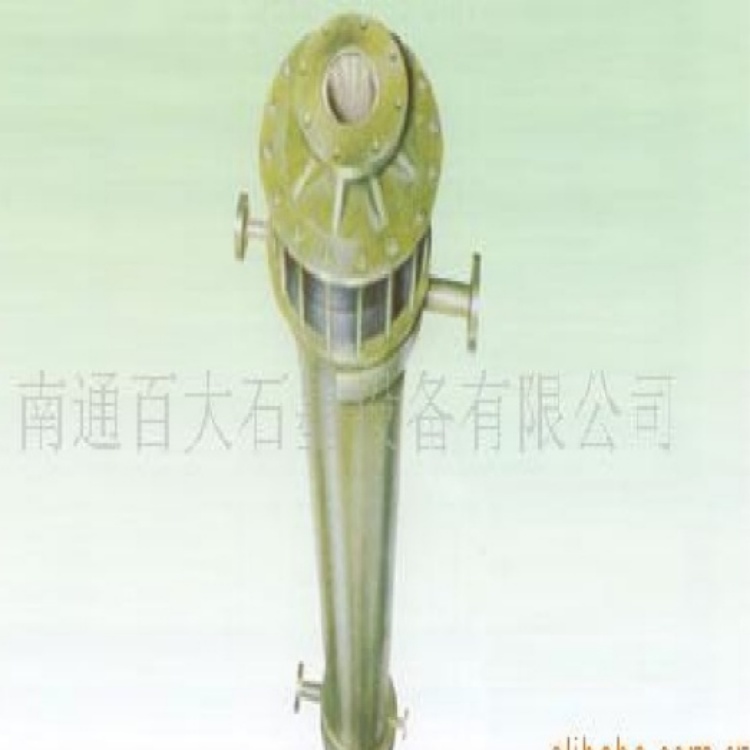

Nantong BaDa Graphite Equipment Co., Ltd. manufacturesGHType floating head tube-in-tube graphite condensers are composed of bundles made from impermeable graphite tubes and tube plates bonded with adhesive, housed within a steel cylindrical shell. Both ends are fitted with impermeable graphite caps or steel-lined corrosion-resistant caps, which are securely fastened with bolts. The structural features include simplicity, compactness, low fluid resistance, and high operational flexibility. The floating head tube-in-tube graphite condensers can be customized into oversized non-standard products, with the maximum heat exchange area exceeding 1,000 square meters.

The floating head tube bundle graphite condenser allows corrosive materials to flow through the tube side and heating or cooling mediums through the shell side. When used for heat exchange between two corrosive mediums, anti-corrosion measures can be implemented within the steel shell, making the equipment capable of bidirectional corrosion resistance.

Graphite's high thermal conductivity and excellent corrosion resistance make it the preferred heat exchange equipment for corrosive mediums in industries such as chemicals, pharmaceuticals, agricultural chemicals, and metallurgy.。
