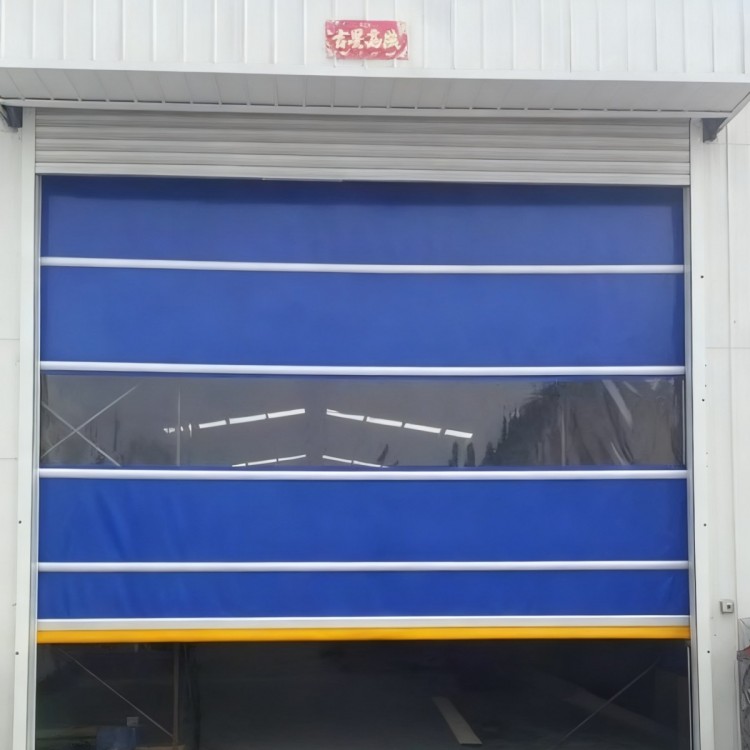

Rapid Roll Shutters - 34
Product Features
• Utilizes a high-frequency start-up motor system, achieving switching speeds of up to 0.8-1.5 m/s, significantly enhancing logistics efficiency.
• The canvas is made of high-strength polyester fiber/PVC composite material, featuring wear and tear resistance on the surface. Colors and transparency window ratios can be customized as required.
• Equipped with a safety airbag or photoelectric protection device at the bottom, it bounces back immediately upon encountering resistance, ensuring the safety of personnel and the vehicle.
Excellent sealing performance, effectively blocking dust, mosquitoes, and odors, while reducing energy consumption
• Optional with various control methods: radar sensing, geomagnetic loop, remote control, button, interlocking联动, etc.
Technical Specifications
• Door width: ≤ 6000mm (actual design specifications apply)
• Door height: ≤ 6000mm (actual design specifications apply)
• Switching Speed: 0.8-1.5 m/s
• Power: AC380V/50Hz, 3-phase 5-wire
Motor Power: 0.75-2.2 kW (configured according to door size)
• Protection Level: IP54 (Motor)
• Operating Noise: ≤65 dB
Applicable scenarios
Ideal for environments with high requirements for cleanliness, temperature control, and throughput efficiency, such as food, pharmaceutical, electronic, cold chain, and logistics warehousing. Also suitable for environments that require rapid isolation, like car wash facilities.
Installation and Maintenance
Installation must be performed by a professional, ensuring the stability and reliability of the track, motor, and control system.
• Maintain track cleanliness during regular use and periodically inspect the fabric and accessories for wear and tear.
• Recommend quarterly maintenance, including motor lubrication and electrical system inspection.
