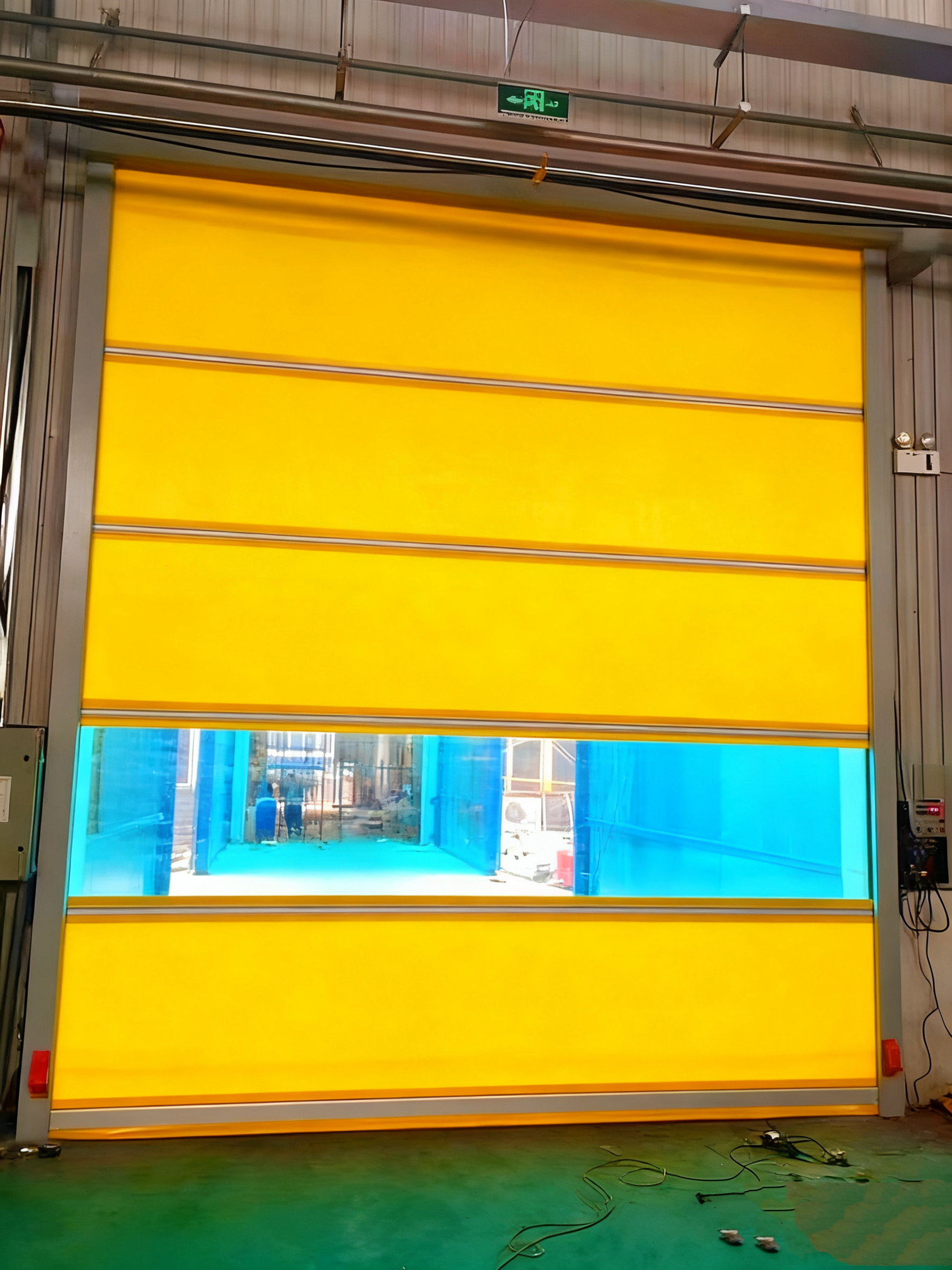

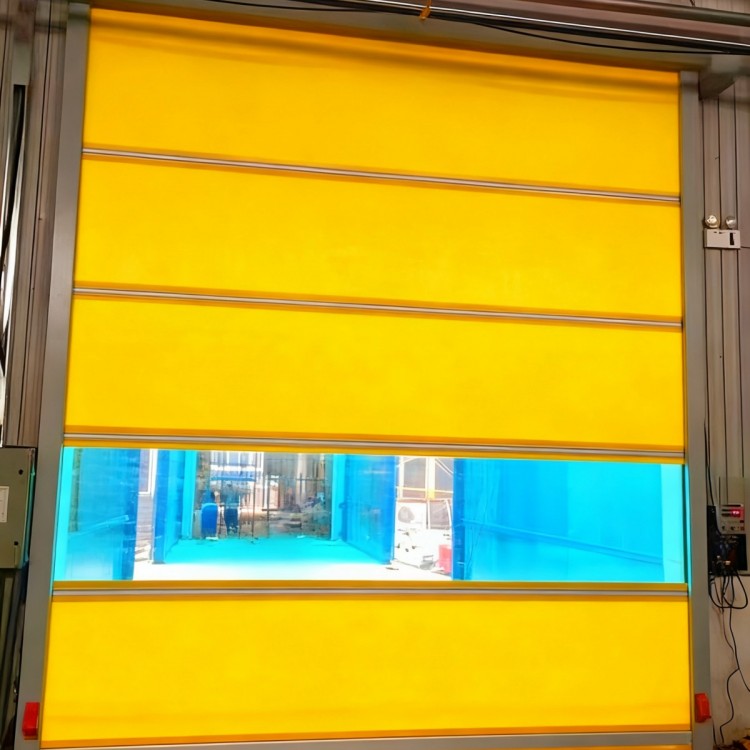

Quick Roll-Up Door - 23
Product Features
• Equipped with a high-frequency start motor system, the switching speed can reach 0.8-1.5 m/s, significantly enhancing logistics efficiency.
• The canvas is made of high-strength polyester fiber/PVC composite material, featuring wear and tear resistance on the surface. Colors and the ratio of transparent viewing windows can be customized according to requirements.
• Equipped with safety airbags or photoelectric protection devices at the bottom, it bounces back immediately upon encountering resistance, ensuring the safety of personnel and the vehicle.
Excellent sealing performance, effectively blocking dust, mosquitoes, and odors, while reducing energy consumption.
• Optional control methods available: radar sensing, geomagnetic loop, remote control, button, interlock联动, etc.
Technical Specifications
• Door Width: ≤6000mm (specifically as per actual design)
• Door height: ≤ 6000mm (specifically as per actual design)
• Switching Speed: 0.8-1.5 m/s
• Power: AC380V/50Hz, 3-phase, 5-wire
• Motor Power: 0.75-2.2 kW (configurable according to door size)
• Protection Level: IP54 (Motor)
• Operating Noise: ≤65dB
Applicable Scenarios
Ideal for environments with high requirements for cleanliness, temperature control, and throughput efficiency, such as food, pharmaceutical, electronics, cold chain, and logistics storage facilities. Also suitable for car washes and other environments that necessitate rapid isolation.
Installation and Maintenance
Installation must be performed by a professional to ensure the stability and reliability of the track, motor, and control system.
• Keep the track clean during regular use and check the wear and tear of the curtain fabric and accessories periodically.
• Recommend quarterly maintenance, including motor lubrication and electrical system inspection.
