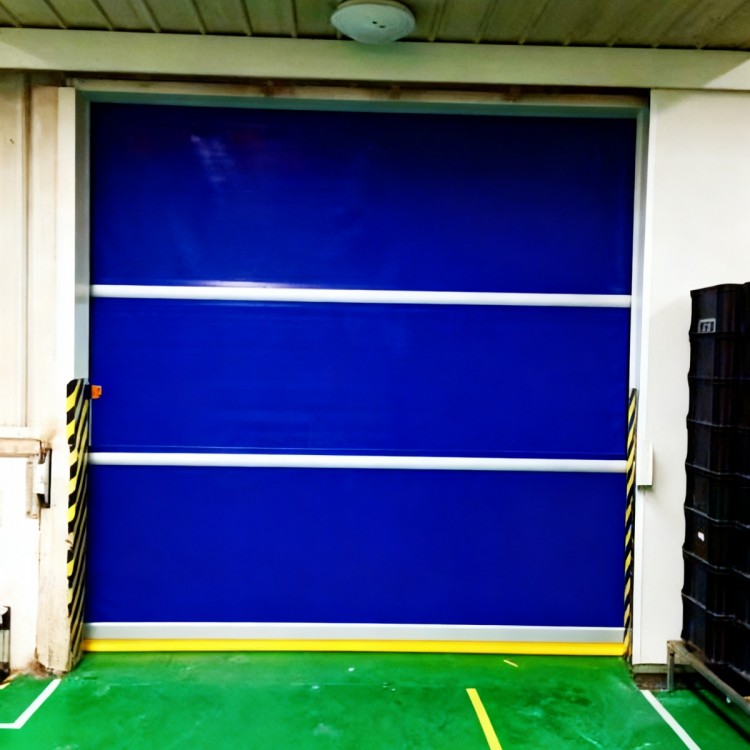

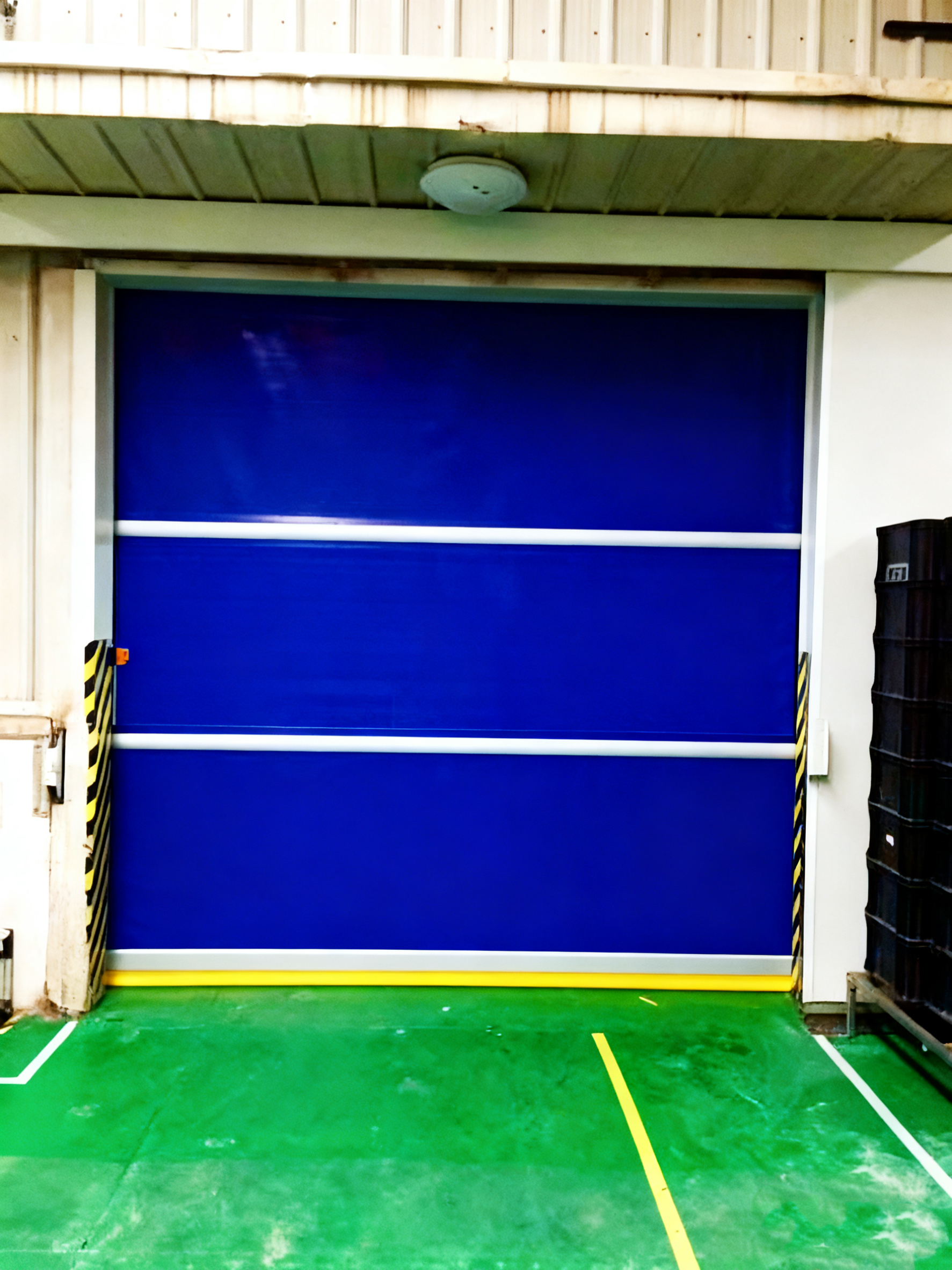

Rapid Roll-Up Door - 19
Product Features
• Utilizes a high-frequency start motor system, achieving a switching speed of up to 0.8-1.5 m/s, significantly enhancing logistics efficiency.
• The canvas is made of high-strength polyester fiber/PVC composite material, featuring wear and tear resistance on the surface. Custom colors and transparency window ratios are available upon request.
• Equipped with a safety airbag or photoelectric protective device at the bottom, it bounces back immediately upon encountering an obstacle, ensuring safety for both personnel and the vehicle.
• Excellent sealing performance, effectively blocking dust, mosquitoes, and odors, while reducing energy consumption
• Optional with various control methods: radar sensing, geomagnetic rings, remote control, buttons, interlocking联动, etc.
Technical Specifications
• Door Width: ≤ 6000mm (actual design specifications apply)
• Door Height: ≤6000mm (actual design specifications apply)
• Switching Speed: 0.8-1.5 m/s
• Power: AC380V/50Hz, 3-phase 5-wire
• Motor Power: 0.75-2.2 kW (configuration based on door size)
• Protection Class: IP54 (Motor)
• Operating Noise: ≤65 dB
Applicable Scenarios
Ideal for environments with high requirements for cleanliness, temperature control, and throughput efficiency, such as food, pharmaceutical, electronic, cold chain, and logistics storage facilities. Also suitable for car wash bays and other areas requiring rapid isolation.
Installation and Maintenance
• Installation must be performed by a professional to ensure the stability and reliability of the track, motor, and control system.
• Keep the track clean during regular use and check the wear of the curtain fabric and accessories periodically.
• Recommend a quarterly maintenance, including motor lubrication and electrical system inspection
