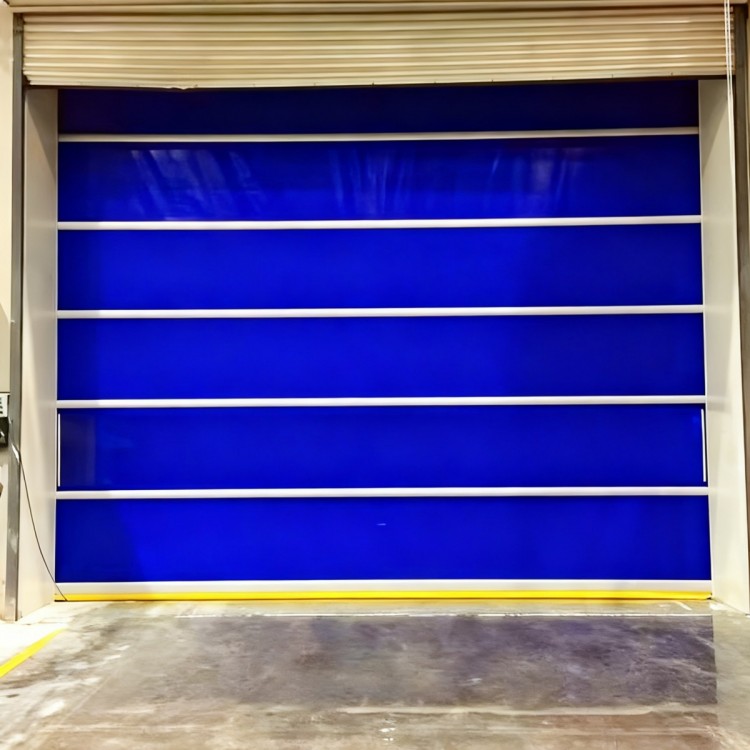

Rapid Roll-Up Door - 17
Product Features
• Utilizes a high-frequency start motor system, achieving switching speeds of up to 0.8-1.5 m/s, significantly enhancing logistics efficiency.
• The curtain fabric is made of high-strength polyester fiber/PVC composite material, with wear and tear resistance on the surface. Custom colors and transparency window ratios are available upon request.
• Equipped with a safety airbag or photoelectric protection device at the bottom, it bounces back immediately upon encountering resistance, ensuring the safety of personnel and the vehicle.
• Excellent sealing performance effectively blocks dust, mosquitoes, and odors, while reducing energy consumption
• Optional with various control methods: radar sensing, geomagnetic ring, remote control, button, interlocked联动, etc.
Technical Specifications
• Door Width: ≤ 6000mm (actual design specifications apply)
• Door Height: ≤6000mm (actual design specifications apply)
• Switching Speed: 0.8-1.5 m/s
• Power: AC380V/50Hz, 3-phase 5-wire
Motor Power: 0.75-2.2 kW (Configuration based on door size)
• Protection Level: IP54 (Motor)
• Operating Noise: ≤65dB
Applicable Scenarios
Suitable for environments with high requirements for cleanliness, temperature control, and throughput efficiency, such as food, pharmaceutical, electronic, cold chain, and logistics storage facilities. Also applicable for car wash facilities requiring rapid isolation.
Installation and Maintenance
• Installation must be performed by a professional to ensure the stability and reliability of the track, motor, and control system.
• Keep the track clean during daily use and regularly inspect the wear of the curtains and accessories.
• Suggest a maintenance every quarter, including motor lubrication and electrical system inspection.
