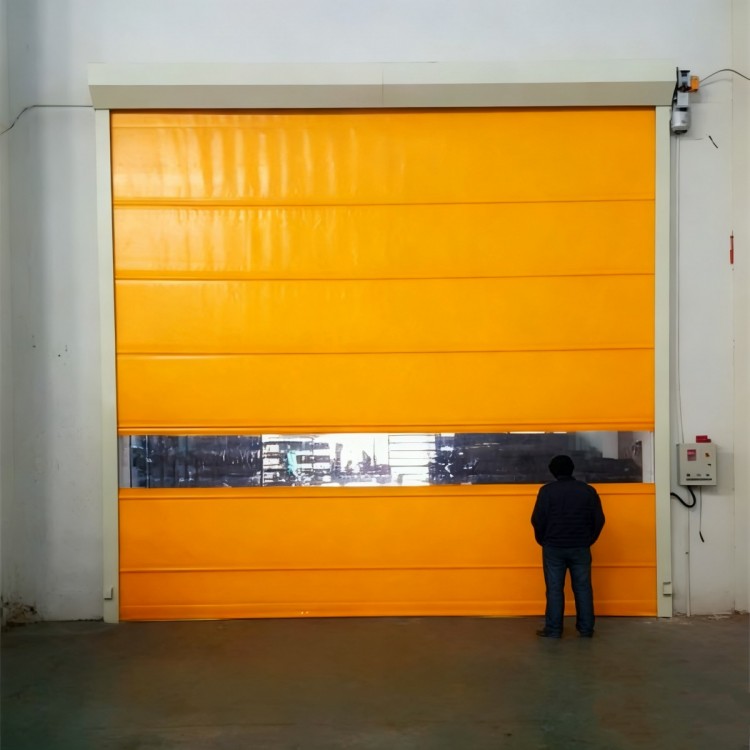

Rapid Roll-Up Door - 16
Product Features
• Utilizes a high-frequency start motor system, achieving switching speeds of up to 0.8-1.5 m/s, significantly enhancing logistics efficiency.
• The curtain fabric is made of high-strength polyester fiber/PVC composite material, featuring wear and tear resistance on the surface. Colors and proportions of transparent viewing windows can be customized as required.
• Equipped with a safety airbag or photoelectric protection device at the bottom, it bounces back immediately upon encountering obstacles, ensuring the safety of personnel and the vehicle.
• Excellent sealing performance, effectively blocking dust, mosquitoes, and odors, while reducing energy consumption
• Optional with various control methods: radar sensing, geomagnetic ring, remote control, button, interlock联动, etc.
Technical Specifications
• Door Width: ≤6000mm (actual design size applies)
• Door Height: ≤ 6000mm (specifically as per actual design)
• Switching Speed: 0.8-1.5 m/s
• Power: AC380V/50Hz, 3-phase, 5-wire
Motor Power: 0.75-2.2 kW (configured according to door size)
• Protection Level: IP54 (Motor)
• Operating Noise: ≤65 dB
Applicable scenarios
Suited for environments with high requirements for cleanliness, temperature control, and throughput efficiency, such as food, pharmaceutical, electronics, cold chain, logistics, and warehousing. Also applicable for car wash facilities that require rapid isolation.
Installation and Maintenance
• Installation must be performed by a professional to ensure the stability and reliability of the track, motor, and control system.
• Keep the track clean during daily use and regularly inspect the wear and tear of the curtain and accessories.
• Recommend a quarterly maintenance, including motor lubrication and electrical system inspection
