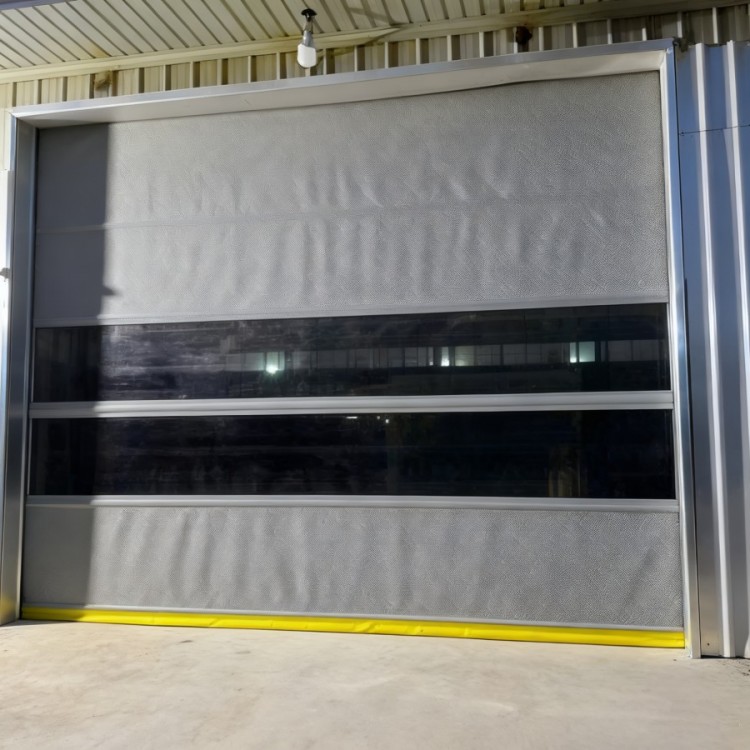

Rapid Roll-Up Door - 13
Product Features
• Features a high-frequency start motor system with switching speeds up to 0.8-1.5m/s, significantly enhancing logistics efficiency
• The canvas is made of high-strength polyester fiber/PVC composite material, with wear and tear resistance on the surface. Colors and the ratio of transparent viewing windows can be customized as required.
• Equipped with safety airbags or photoelectric protection devices at the bottom, it immediately bounces back upon encountering resistance, ensuring safety for personnel and the vehicle.
• Excellent sealing performance, effectively blocking dust, mosquitoes, and odors, while reducing energy consumption
• Optional with various control methods: radar sensing, geomagnetic ring, remote control, button, interlocked联动, etc.
Technical Specifications
• Door width: ≤6000mm (actual design size applies)
• Door height: ≤6000mm (actual design may vary)
• Switching Speed: 0.8-1.5 m/s
• Power Supply: AC 380V/50Hz, Three-phase Five-wire
Motor Power: 0.75-2.2 kW (depending on door size)
• Protection Level: IP54 (Motor)
• Operating Noise: ≤65 dB
Applicable Scenarios
Suited for environments with high requirements for cleanliness, temperature control, and throughput efficiency, such as food, pharmaceutical, electronics, cold chain, logistics and warehousing. Also applicable for car wash facilities that require rapid isolation.
Installation and Maintenance
• Installation must be performed by a professional to ensure stability and reliability of the track, motor, and control system.
• Keep the track clean during regular use and check the wear of the curtains and accessories periodically.
• Suggest a maintenance schedule every quarter, including motor lubrication and electrical system inspections.
