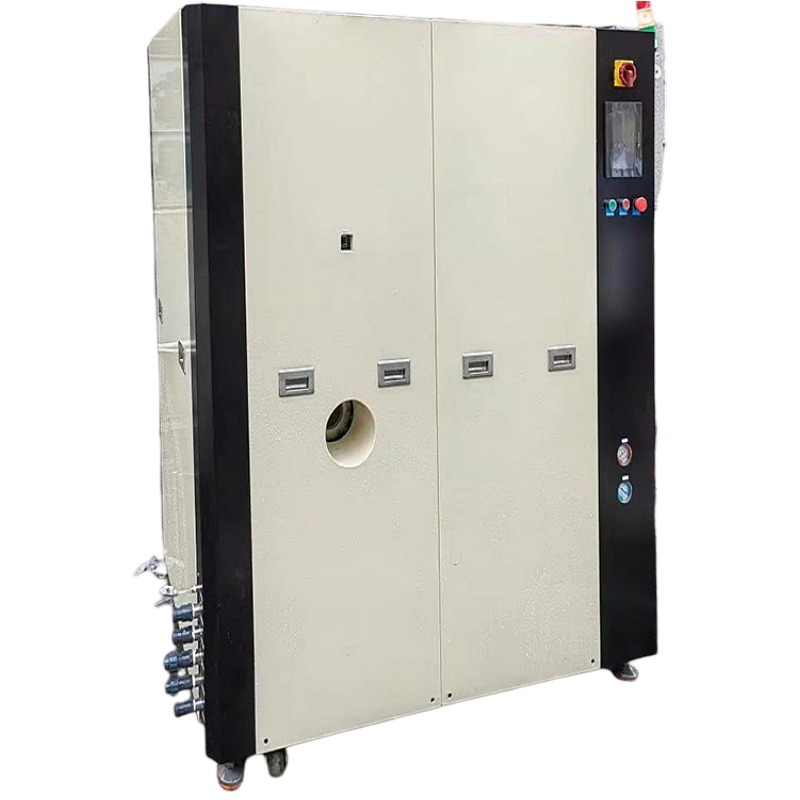

Semiconductor wastewater treatment equipment - Low-temperature heat pump crystallizer - No consumables - Quankun Factory Customized

The low-temperature distillation waste liquid treatment equipment operates under an evaporation state of around 33℃ to concentrate and evaporate cutting fluid waste liquid. After a series of purification processes including pretreatment, low-temperature evaporation, ceramic membrane filtration, etc., the treated water meets the standard for discharge after testing. The concentrated cutting fluid waste liquid residues are outsourced for processing, reducing treatment costs.

Product Parameters: Name: Waste Liquid Processor (Low Temperature Evaporation Equipment) Outflow Water Quality (COD): Approximately 300 Power Consumption: 90~180 kWh/m³ Treatment Capacity: 200-2000 L/D Daily Output: 200-2000 L/D Hourly Output: 10-100 L/H Applicable Objects: Water-soluble liquids Property: A waste/liquid evaporation and concentration treatment equipment.

Applicable wastewater types include:

Reverse Osmosis Concentrate

Cutting fluid emulsion wastewater / used metalworking fluid wastewater

De-fatting, alkali washing, ultrasonic cleaning wastewater

Grinding, polishing, lapping, wire cutting, and heat treatment wastewater

Rolling, release agent wastewater

Electroplating wastewater

Developer waste water

Wastewater containing heavy metals

Pickling, phosphating, passivation, etc., surface treatment wastewater

High-salt wastewater, MVR, multi-effect evaporation mother liquor

Semiconductor wastewater, pharmaceutical wastewater, landfill leachate

During the treatment of industrial saline wastewater, the wastewater is fed into a low-temperature multi-effect concentration crystallization unit. It undergoes a concentration and crystallization process through 3-6 stages of evaporation and condensation, separating into desalinated water (which may contain trace low-boiling-point organic substances) and concentrated slurry waste; inorganic salts and some organic substances can be crystallized and separated, then incinerated to become inorganic salt waste; non-crystallizable organic substances in the concentrated waste liquid can be processed in a drum evaporator to form solid waste, then incinerated; the desalinated water can be returned to the production system for reuse instead of softened water.

Semiconductor wastewater treatment equipment - Low-temperature heat pump crystallizer - No consumables - Quankun Factory Customized

The Low-Temperature Multi-Efficiency Evaporation and Crystallization System can not only be applied in the concentration and crystallization processes of chemical production, but also in the evaporation, concentration, and crystallization treatment of industrial saline wastewater.

The multi-effect evaporation process only utilizes steam in the first effect, thereby saving the required steam quantity. It effectively utilizes the heat in the secondary steam, reducing production costs and improving economic benefits.
