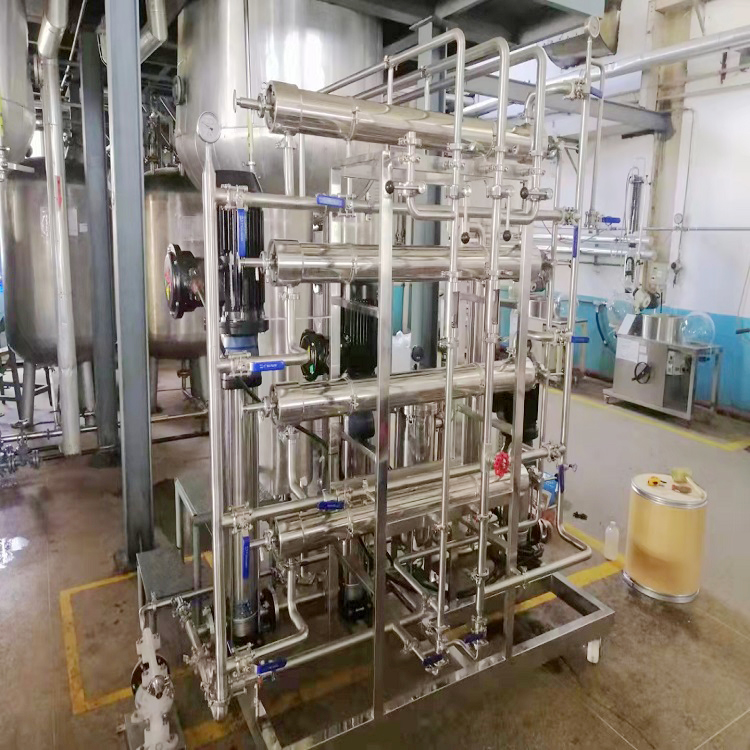

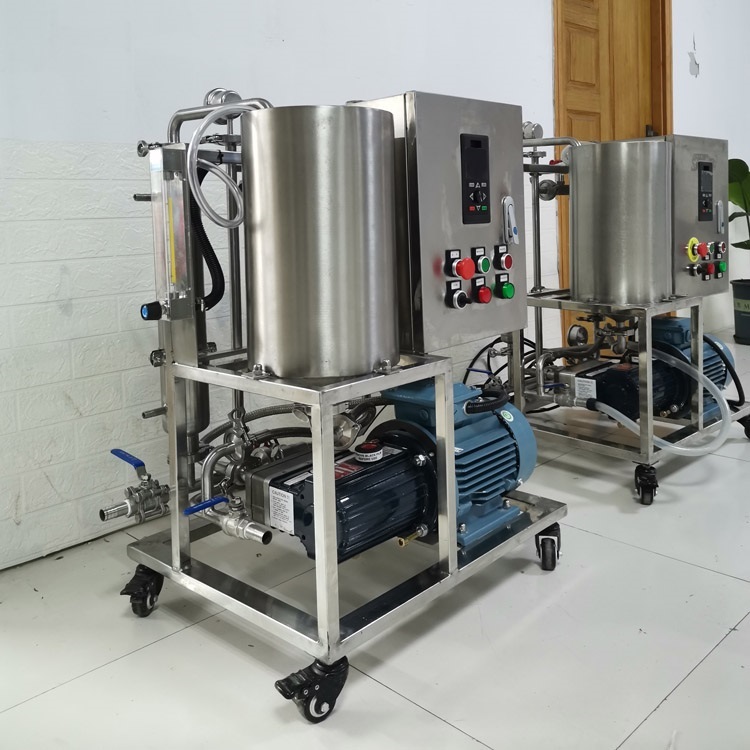

Membrane Separation Pilot Plant - High-Efficiency Industrial Membrane Filtration Equipment - Ceramic Membrane Equipment
Product Introduction:
Inorganic ceramic membranes are precision ceramic filter materials with a porous structure, made by high-temperature sintering of materials like alumina, titanium oxide, and zirconia. The porous support layer, transition layer, and microporous membrane layer are asymmetrically distributed, covering filtration precision from microfiltration to ultrafiltration and nanofiltration. Ceramic membrane filtration is a "crossflow filtration" process for fluid separation: raw liquid flows at high speed within the membrane tubes, driven by pressure, the clarified permeate containing small molecular components passes through the membrane in a direction perpendicular to it, while the turbid concentrate containing large molecular components is retained by the membrane, achieving the purpose of separation, concentration, and purification of the fluid.
Basic technical parameters of ceramic membrane module:
Packaging Film Element Count: 1 core, 3 cores, 7 cores, 12 cores, 19 cores, 37 cores, 61 cores, 76 cores, 91 cores, 138 cores, 241 cores, etc.
Matching membrane element length and diameter: 100~1800mm / Outer diameter: 25, 30, 40mm
Main Material: SUS304(L), SUS316(L), Ti, Carbon Steel/Rubber Lined, PVC, FRPP
Sealing Material: EPDM (Ethylene Propylene Diene Monomer), Fluoro Rubber, Silicon Rubber, PTFE (Polytetrafluoroethylene)
Interface Types: Flange, Clamp, Swivel Coupling
Pressure Ranges: 0-1.0 MPa, 0-1.6 MPa, 0-2.5 MPa, 0-4.0 MPa
Standard: ISO, DIN/Chemical Grade, Sanitary Grade
Product Categories:
Based on the differences in membrane tubes, they are mainly divided into two series: ceramic membrane tubes and ceramic composite membrane tubes.
According to different pore sizes, they are mainly divided into two series: ceramic microfiltration membrane tubes and ceramic ultrafiltration membrane tubes.
The main categories are single-channel and multi-channel, depending on the number of channels.
We can select the appropriate ceramic membrane tube or ceramic composite membrane tube for the customer based on their process requirements, different handling systems, and relevant technical specifications.
Membrane Separation Pilot Plant - High-Efficiency Industrial Membrane Filtration Equipment - Ceramic Membrane Equipment
Application Scope:
1. Fermentation Liquid Clarification Technology: Filtration of fermentation liquids containing plant and animal extracts, enzyme reactions (acrylamide, p-hydroxyphenylglycine, etc.), organic acids (lysine, L-lactic acid, citric acid, nucleotides, etc.), and antibiotics (penicillin, cephalosporins, erythromycin, colistin sulfate, gossypol, vancomycin, etc.).
2. Extraction and purification of active ingredients in traditional Chinese medicine
3. Oral Liquid Clarification and Filtration
4. Sterilization and filtration for soy sauce, vinegar, and other brewed products.
5. Clarification and filtration for juices, beverages, and wines.
6. Pasteurization and concentration of milk
7. Separation and purification of fermentation products.
8. Oil Emulsion Wastewater Treatment: Oilfield reinjection water, cold rolling emulsion wastewater, metal cleaning liquid recovery.
