Quankun RO Reverse Osmosis Equipment - Deionized Water Equipment - Ultrafiltration Equipment - Chinese Medicine Purification

Nanofiltration (NF) primarily removes solute particles with diameters around 1 nm, retaining molecules with a molecular weight of 100 to 1000. A significant characteristic of nanofiltration membranes is their charged nature, which allows them to maintain high desalination performance at low pressure and retain molecules with hundreds of molecular weights, making them effective in removing inorganic salts.

Principle of operation for the nanofiltration device:

Membrane separation is a method that utilizes the differential selectivity of the membrane to the various components in a mixture, separating, classifying, purifying, and enriching binary or multi-component gas or liquid mixtures by applying an external energy or chemical potential difference as the driving force. Membrane pores are at the nanoscale, suitable for separating solutes with molecular weights of 100 to 1000 and molecular sizes of about 1nm, which is referred to as nanofiltration (NF). The trans-membrane pressure required for NF membrane separation is generally 0.5 to 2.0 MPa, which is lower than the pressure required for reverse osmosis membranes to achieve the same osmotic energy by 0.5 to 3 MPa.MPa. Based on operating pressure and separation limits, NF can be qualitatively positioned between reverse osmosis and ultrafiltration, and is sometimes referred to as "low-pressure reverse osmosis" or "loose reverse osmosis."

Equipment Advantages:

1. Heat stability: Filter material maintains stability without cracking after 10 cycles at 250°C.

2. Excellent resistance to chemical media corrosion, withstands various acids, bases, salts, and most organic solvents below 70°C; odorless, non-toxic, and free of foreign matter leaching; suitable for filtration in various media.

3. Excellent mechanical strength and hole stability for high-pressure medium filtration.

4. High filtration accuracy (up to 0.1 micron) and speed, excellent cleaning and regeneration performance, suitable for precise filtration of various media.

5. Self-cleaning in good condition, non-toxic, odorless, with excellent resistance to microbial侵蚀.

6. High filtration efficiency: Oil removal rate reaches 80-95%, and the removal rate of suspended particles larger than 0.5μm is over 98%.

7. Filtration Precision and Flow Rate: Dependent on factors such as the average pore diameter, wall thickness, filtration pressure difference, and material parameters of the microporous medium. It requires experimentation and calculation for accurate determination and can be filtered at a flow rate of 5-10 m/s.

Quan Kun RO Reverse Osmosis Equipment - Deionized Water Equipment - Ultrafiltration Equipment - Chinese Medicine Purification

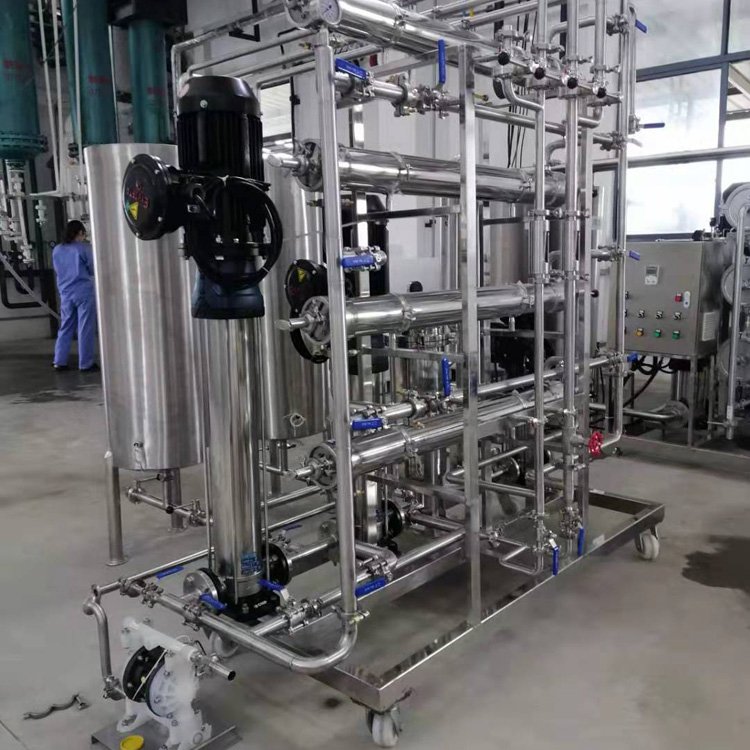

Process Features:

Simple installation and operation, easy maintenance, practical and simple technology, and aesthetically pleasing appearance.

Membrane concentration and separation equipment is easy to operate, stable in performance, made of stainless steel, and resistant to acid and alkali corrosion.

The equipment features a compact structure, small size, and occupies minimal space.

Small recirculating volume, excellent separation and purification effect.

The equipment is easy to clean, and the membrane core can be used in a cyclic manner for a long time.

Equipment operating pressure can reach up to 40 kg, with a wide range of applications.
