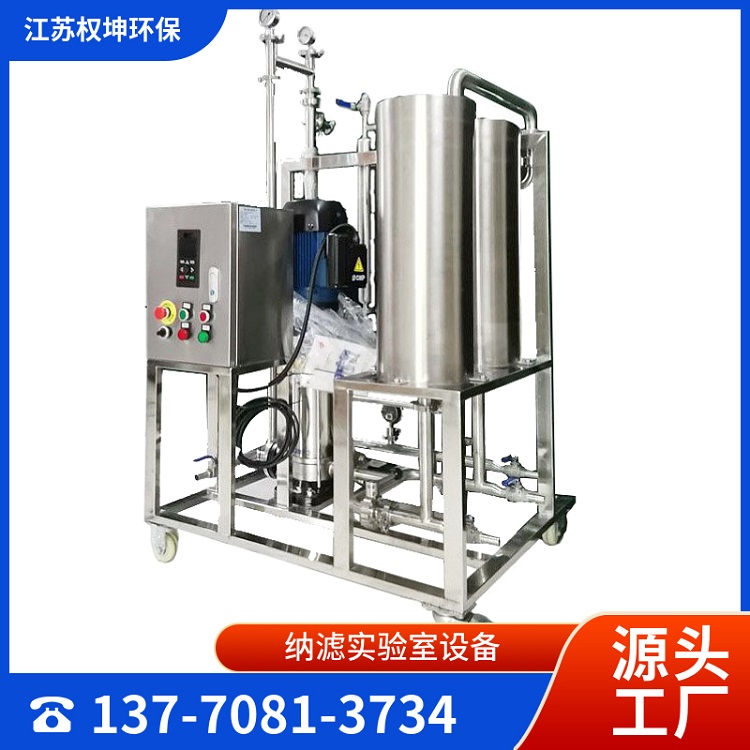

Large-scale NANO Filtration Membrane Equipment Customization by Quankun Environmental Protection, Supplier of NANO Filtration Membrane Equipment

Product Description:

Membrane concentration equipment effectively separates active components from liquid molecules through directional separation to achieve the goal of concentration and separation. It is an innovative and efficient purification and concentration device that differs from traditional processes. Compared to traditional heating concentration, it features low energy consumption, can be performed at room temperature, and has minimal impact on the product.

Nanofiltration system working principle:

Membrane separation is a method of separating, classifying, purifying, and enriching binary or multi-component gas or liquid mixtures by utilizing the differential selectivity of the membrane to the various components, driven by external energy or a chemical potential difference. Membrane pores are at the nanoscale, suitable for separating solutes with molecular weights of 100 to 1000 and molecular sizes of about 1nm, which is referred to as nanofiltration (NF). The transmembrane pressure required for NF membrane separation is generally 0.5 to 2.0 MPa, which is lower by 0.5 to 3 MPa than the pressure needed for reverse osmosis (RO) membranes to achieve the same permeation energy.MPa. Based on operating pressure and separation limits, NF can be qualitatively positioned between reverse osmosis and ultrafiltration, and is sometimes referred to as "low-pressure reverse osmosis" or "loose reverse osmosis."

Process Flow:

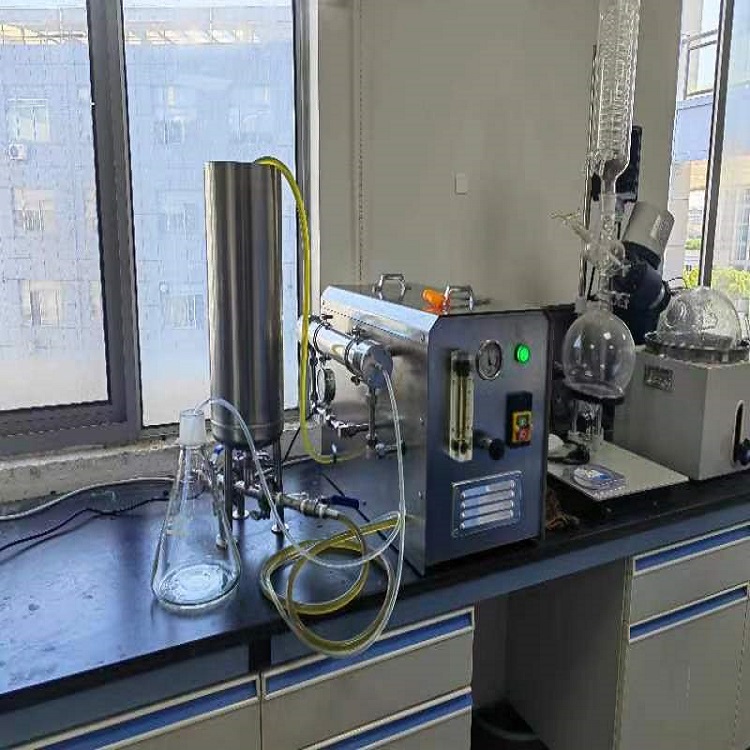

Membrane concentration equipment is typically categorized by different membrane elements, such as microfiltration, ultrafiltration, nanofiltration, and reverse osmosis lab equipment, crossflow lab equipment, tangential flow filtration lab equipment, and multi-stage membrane lab equipment. The processes all rely on the lifting force of the pump after the feed tank to achieve separation, purification, and concentration, in coordination with the pore size of the membrane elements.

Process Features:

Easy installation and maintenance, simple yet practical technology, and an aesthetically pleasing design.

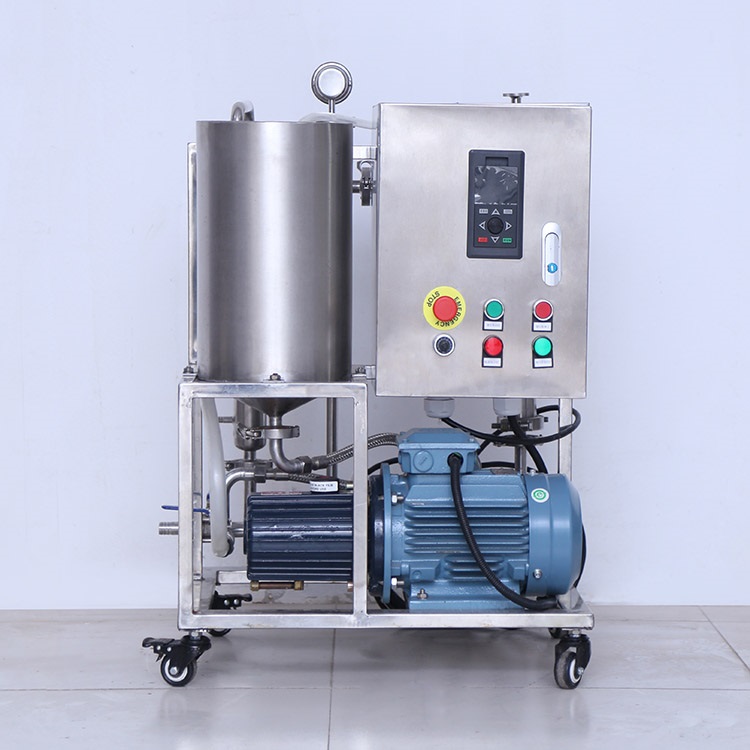

Membrane concentration and separation equipment is easy to operate, stable in performance, made of stainless steel, and resistant to acid and alkali corrosion.

The equipment has a compact structure, small size, and occupies minimal space.

Small circulation volume, excellent separation and purification effect.

Equipment is easy to clean, and the membrane core can be used in a long-term recycling cycle.

The equipment can operate at a pressure of up to 40 kg, with a wide range of applications.

Nanofiltration membrane large-scale equipment customization, Quankun Environmental Protection provides nanofiltration membrane equipment.

Nanofiltration equipment application range:

1. Soft Water:

2. Drinking Water:

3. Food, Beverage, and Health Product Industry:

4. Chemical Industry:

5. Greywater and wastewater treatment:
