Quan Kun Industrial EDI System Full-Automatic Lab GMP Purified Water Equipment Full-Automatic

The system is designed specifically for pure water engineering. The design source is determined, the poor water quality is controlled, and the production capacity is designed according to requirements. Depending on different products, the system's effluent water quality meets the water usage requirements. The design source is based on urban water supply. The system is designed according to the user's raw water quality and quality requirements. The system configuration and settings fully meet the requirements of the incoming water conditions, adhering to principles of automation, energy conservation, simple operation, environmental protection, and safety to ensure long-term stable performance.

Process Parameters Description:

1. Pre-treatment system operation, anti-money laundering procedures and control

2、Operation and control of reverse osmosis units

3. EDI Operations and Control

4. Operation and control of high-temperature sterilization systems

5. Tank liquid sensor interlinkage achieved.

Application Fields:

The Zhiyao Purified Water Equipment has a wide range of applications, primarily used in the pharmaceutical industry, biotechnology, and scientific research. It is employed for pharmaceutical water usage, the production of traditional Chinese medicine, disposable syringes, blood transfusion devices, and other medical devices, as well as snake-based health products, health supplements, and the production of traditional Chinese medicine and health supplements.

Equipment Features:

The complete unit is modularly produced, featuring a rational and compact structure with minimal land occupation; it is equipped with a comprehensive control system to ensure the operation of the water machine; it utilizes a dual-pipe pure water supply system, with an internal circulation mode for the water machine, enabling internal circulation and preventing stagnant water due to standby process equipment.

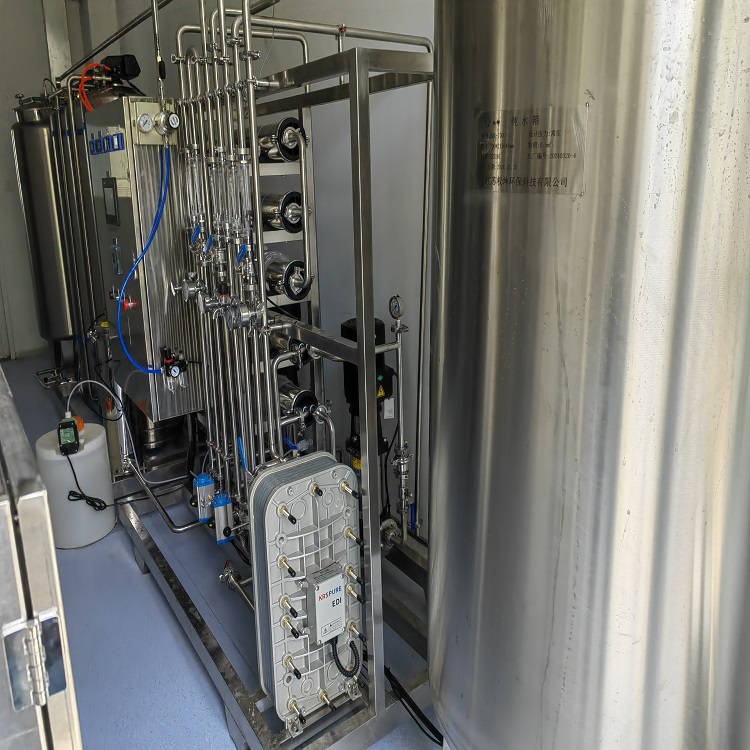

Quan Kun Industrial EDI System Full-Automatic Lab GMP Purified Water Equipment Full-Automatic

Process Steps:

1. Raw Water System: Potable water enters the raw water storage tank, then passes through the raw water pump and is directed to the multi-media filter.

2. Pretreatment System: The pretreatment system includes multimedia filters and activated carbon filters. The multimedia filters remove large particles and impurities from the water.

3. Activated carbon filters remove high molecular organic matter and residual chlorine. Normally, cleaning is required after a cumulative working time of 24 hours.

4. Softening System: The softening system removes calcium and magnesium ions, reducing the water hardness. Under normal conditions, it operates for a continuous 24 hours to perform cleaning and softening.

5. Heat Exchanger: Pasteurizes activated carbon and provides temperature; during cold weather, it can meet the RO feed water temperature of 25 degrees.

6. RO system; removes various ions, reduces conductivity and TOC.

7. EDI System: Further removes various ions, reducing conductivity and TOC. Produces qualified purified water.
