Driver Type: Two-phase Stepper Motor Driver
Control Methods: Pulse, IO, EtherCAT
Motor Type: Two-phase 1.8° Step Angle Four-Wire Mixed Stepper
Product Features

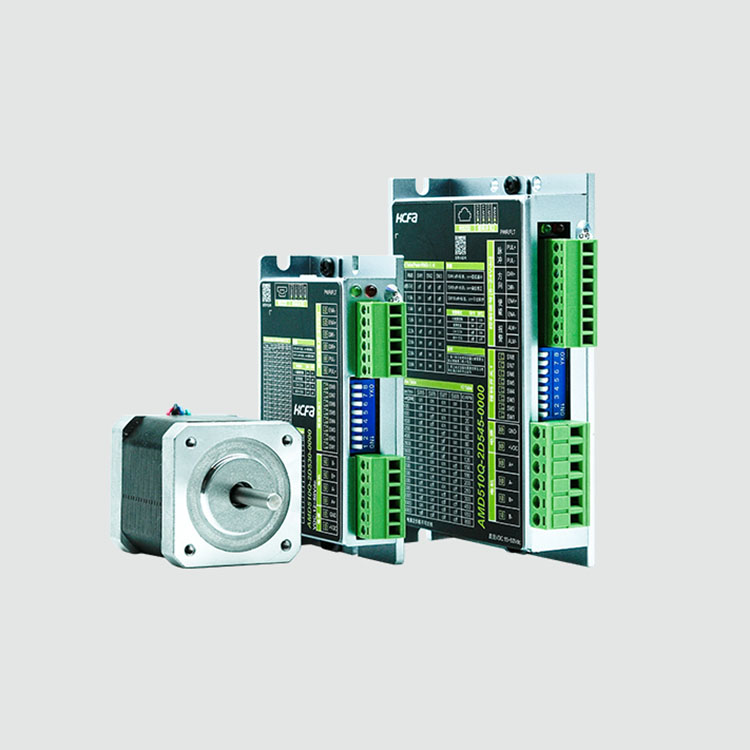

AMD-510Q Open Loop Stepper Motor Series with Pulse and IO Type------
Control Methods: Pulse + Direction, CW/CCW Forward/Reverse Pulse, IO Speed Control
Voltage Range: DC 12V-80V
Peak Current: 3.0/4.5/8.4
Motor Compatibility: Compatible with motors from 20 to 86 bases
Features:
Safety: Full aluminum shell structure design, excellent heat dissipation, sturdy and safe, supports overvoltage, overcurrent/short-circuit protection.
Simple to Use: Parameters automatically match the motor, no tuning required; set current and microstepping via dip switches, easy operation

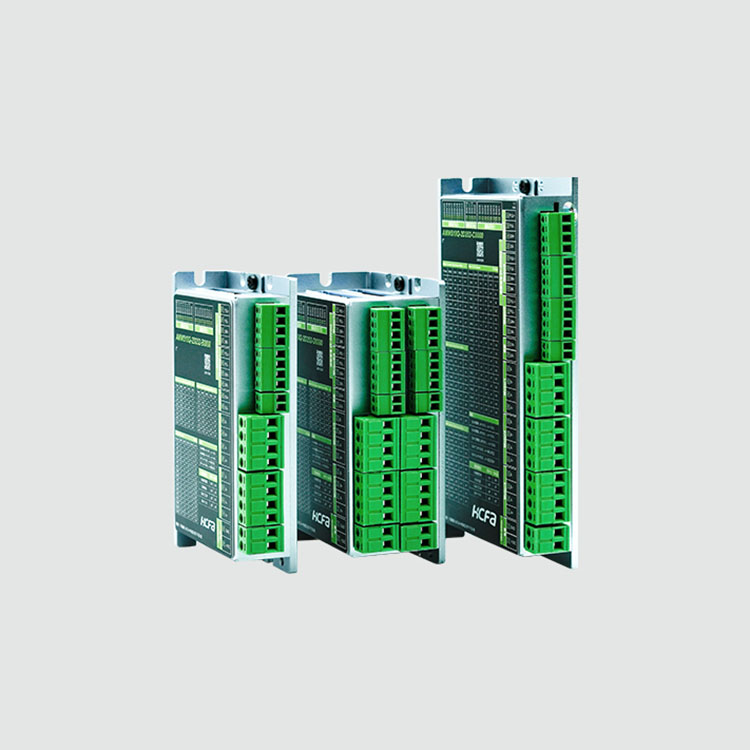

AMW-510Q Pulse+IO Type Multi-axis Open-loop Stepper Series------
Control Methods: Pulse + Direction, CW/CCW Reverse Pulse, IO Speed Control
Input Voltage: DC 24V
Peak Current: 5.2A
Motor Compatibility: Compatible with motors from 42 to 60 frames
Features:
Integrated: Whole machine supports 2/3/4-axis drive control, compact in size, effectively saving installation space.
Independent Control: Capable of independently controlling multiple motors (2~4 axes), with each axis' current independently adjustable, without affecting each other.
Safety: Full aluminum shell design, excellent heat dissipation, sturdy and secure
Simple to Use: Parameters automatically match the motor, no tuning required, simply set the current and micro-stepping via dip switches, easy operation
AMD-510B EtherCAT Open Loop Stepper Series------
Control Method: ETHERCAT Bus
Input Voltage: DC 24-140V, AC 20-100V
Peak Current: 8.4A
Motor Compatibility: Compatible with motors from 57 to 110 frames
Features:
Supports EtherCAT communication protocol, minimum synchronization cycle of 250us
The communication full isolation solution is reliable and stable, with no disconnection.
Support multiple bus zeroing modes
I/O function bus is configurable, 5IN/3OUT
Supports DIP switch to change motor direction, simple and easy to use
AMD-520B ETHER CAT Bus Loop Step Motor Series
Control Method: ETHERCAT Bus
Input Voltage: DC 24-140V, AC 20-100V
Peak Current: 8.4A
Motor Compatibility: Compatible with motors from 57 to 110 bases
Features:
New closed-loop control algorithm, more accurate motion control, no missed steps
Supports 1000-line increment A, B, Z differential encoders, optional 2500-line and 5000-line support for various bus zeroing modes
Supports multiple home position modes, supports encoder Z signal home positioning
Lower vibration and noise, for smoother operation.
Product Specifications
Naming Rules:
Basic Specifications:
Environmental Specifications:
Motor Specifications:
Product Dimensions:
