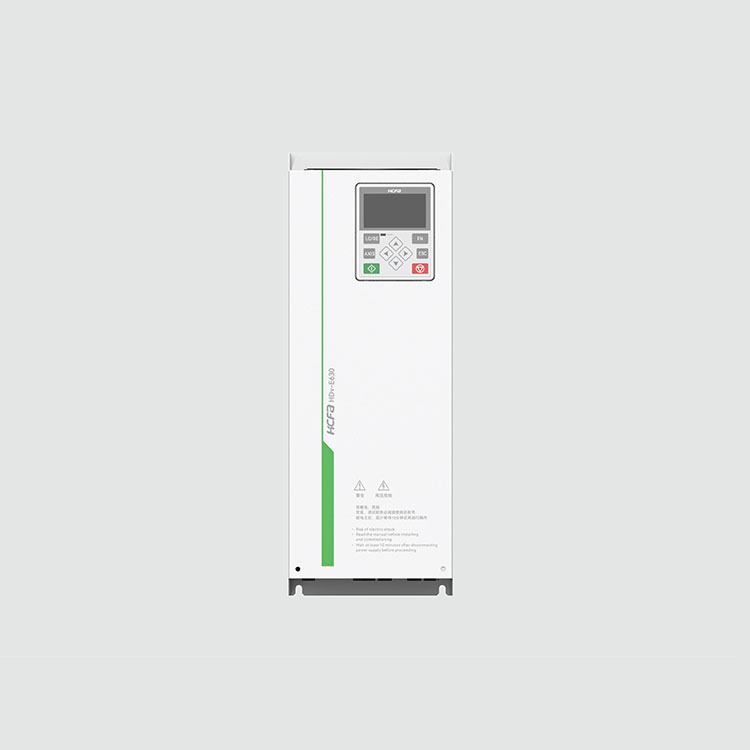

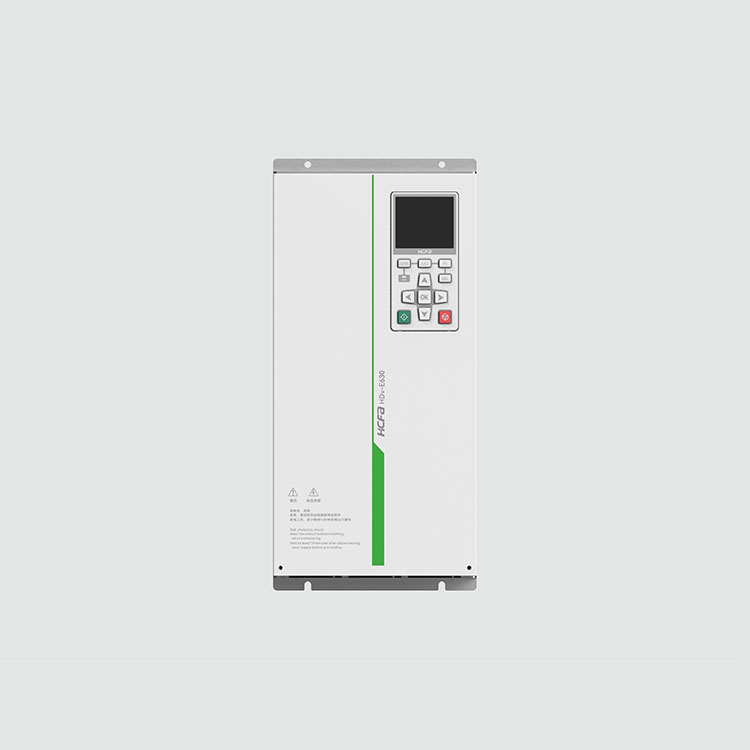

The HDv-E630 series inverters are the latest high-performance vector control products launched by Hiwin Technology. They cover power ranges from 0.4 to 160 kW and are specifically designed for industrial automation. Supporting various control modes and high-speed bus communication, these inverters can meet the high-precision drive requirements under complex working conditions.

Its innovative structural design and powerful functional integration are widely used in machine tool processing, fluid machinery, rubber machinery, food packaging, metal wire and cable, woodworking machinery, textile equipment, and other industries, providing customers with efficient and stable motion control solutions.

The HDv-E630 series inverters from HeChuan will continue to support customers in achieving equipment upgrades and energy efficiency optimization, driving high-quality development in intelligent manufacturing.

Product Features

Multiple control modes

Supports speed control, torque control, and simple position control, compatible with open-loop/closed-loop operation of asynchronous and synchronous motors.

Optional PG card for enhanced closed-loop control accuracy, catering to high dynamic response requirements.

High-speed bus communication

Supports optional communication expansion cards for mainstream industrial protocols such as Modbus-RTU, CANOpen, EtherCAT, Ethernet/IP, Modbus TCP, and Profinet, enabling seamless integration with intelligent production lines.

Enhanced Industrial Design

Independent air duct design for effective heat dissipation; triple protection coating (dustproof, moisture-proof, corrosion-proof) enhances environmental adaptability.

Excellent anti-interference and static protection capabilities, suitable for harsh industrial environments.

High-performance vector algorithms

Utilizing advanced vector control technology, offers high low-frequency torque (up to 150% of rated torque at 0.5Hz), with a dynamic response speed in the ms range, and dynamic accuracy of ±0.02%.

Intelligent Diagnosis and Protection

Built-in encoder disconnection detection, PID feedback anomaly alarm, and other functions; supports power surge resilience and speed tracking restart, ensuring continuous production stability.

Product Specifications

Naming Rules:

Technical Specifications:

Performance Specifications:

Product Dimensions:
