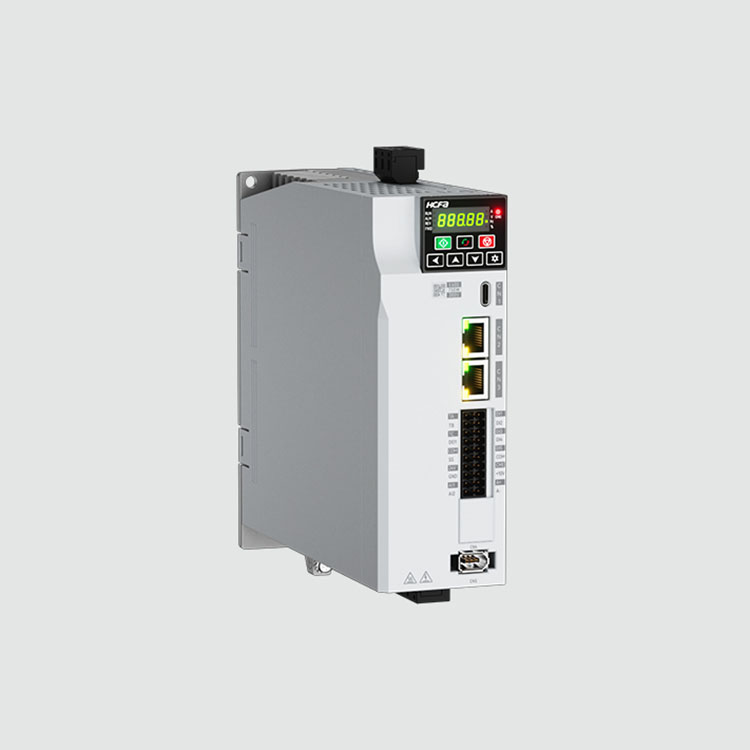

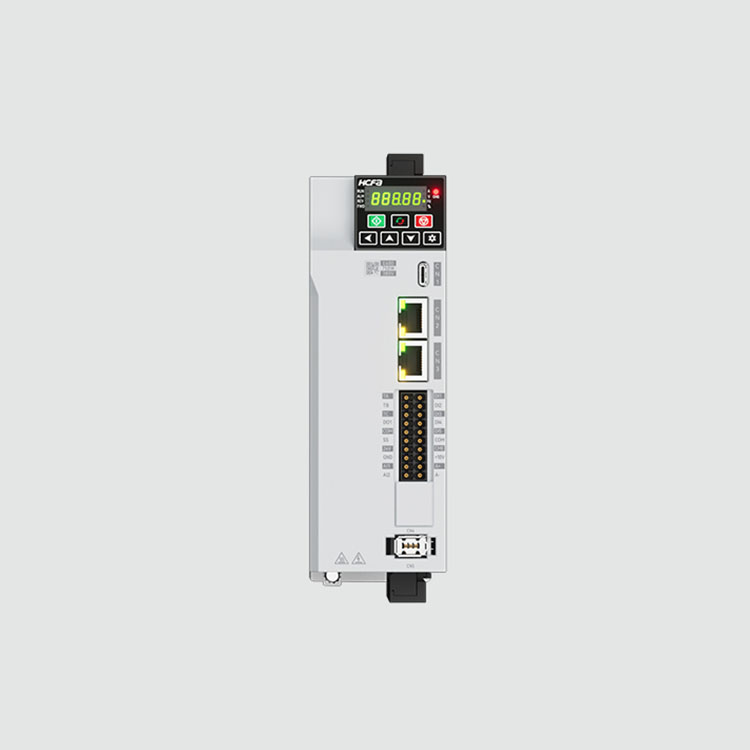

Product Type: Variable Frequency Drive
Voltage Specifications: Three-phase 220V (compatible with single-phase), three-phase 380V
Power Range: 0.4KW-2.2KW (Three Phase 220V), 0.4KW-22KW (Three Phase 380V)
Hardware Interface:
E600 - 5-channel DI (including 1 high-speed input), 1 channel DO, relay output group, 2 analog inputs, built-in Modbus
E610 - 6-channel DI (including 2 high-speed inputs), 2-channel DO, relay output group, 2-channel analog input, 2-channel analog output, built-in Modbus, CANopen, supports STO
Product Features
Narrow book design
Structure: Lightweight/High Power Density: Compared to previous series, the E600 & E610 are more streamlined and refined in structure.
Side-by-side installation, space-saving: Compared to traditional installation of variable frequency drive products, the E600 & E610 support gapless side-by-side installation, occupying less floor space, thereby effectively enhancing cabinet utilization efficiency.
Highly secure and reliable
STO Function: The E610 model is equipped with an STO (Safe Torque Off) function. In case of danger, the system activates the base blocking function of the variable frequency drive, cutting off the output in a hardware manner, stopping the equipment as quickly as possible, and providing a more reliable way to ensure the safety of both people and machinery.
Enhanced Three-Proof Coating: Reinforced PCB board coating, innovative cooling design, ensures product lifecycle health and stability, improves single board environmental resistance, and全面提升single board protection capabilities.
Independent Air Duct: The independent air duct design features short air paths, low resistance, and minimal air leakage, significantly enhancing heat dissipation. This effectively reduces the temperature rise of the inverter, ensuring more stable and reliable operation.
Operating Temperature: Normal operation within -10℃ to +60℃ (temperature derating of 10% required every +5℃ above 50~60℃).
User-friendly and convenient
Design without wire connections for plug-in terminals: Large capacity wiring, adaptable to various wiring requirements, screw-free design, saves terminal pressing, reduces work time.
Total DC Energy Savings: DC common bus mode, energy is shared among multiple units, reducing the need for braking components while conserving energy, thus saving costs.
Master Unit/External Keyboard: Pair with Huichuan变频 Master Unit to simplify inverter tuning steps, save tuning time, and make parameter upload/download more convenient for saving parameter settings; LED/LCD External Keyboard, can be installed through cabinet door cutouts, allowing observation of inverter operating status and other information without opening the cabinet door.
Smart Quick Assembly Networking
Bluetooth Function, IoT Module: Supports Bluetooth and wireless networking, making device networking within the same area more convenient and efficient. The E610 model is built with CANopen communication, enabling CANopen communication with higher-level machines such as PLCs without the need for additional communication cards.
Remote I/O Function: Allows the sensor signals of the equipment to be directly connected to the inverter, and transmitted to the PLC or higher-level computer through communication, enabling remote I/O function.
Multi-scenario Application
Wide voltage range: Supports AC380V~AC480V (-15%～10%), with a broad input voltage range to meet power supply scenarios under different operating conditions.
Multi-functional: Equipped with industry-specific features, catering to the needs of various industries and equipment.
Product Specifications
Naming Rules:
Technical Specifications:
Performance Specifications:
Product Dimensions:
