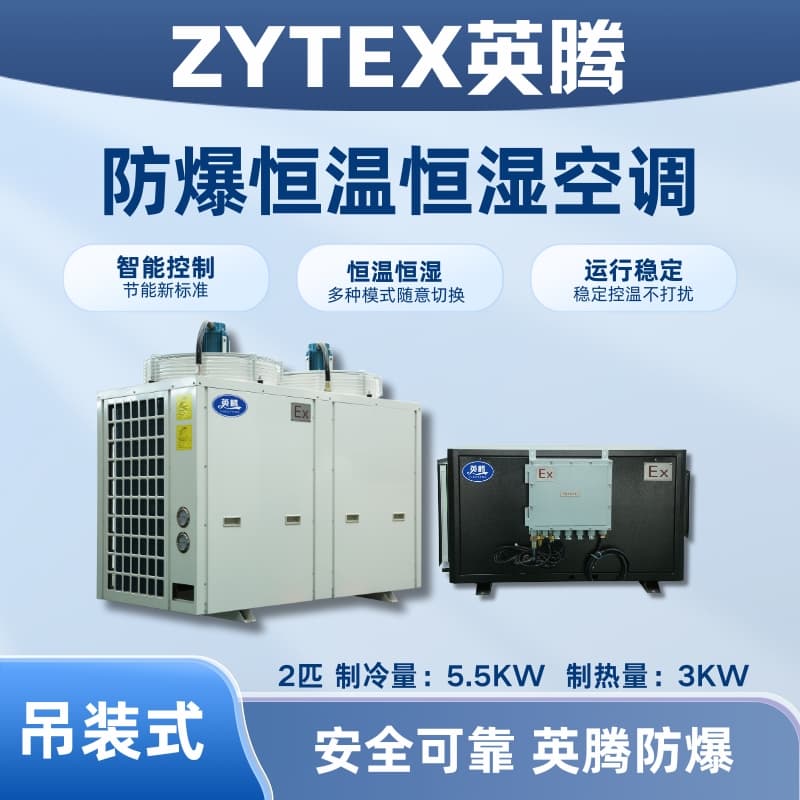

YingTeng Explosion-proof Constant Temperature and Humidity Air Conditioner for Lifting Equipment
Spec: 2 HP
Brand: YingTeng
Cooling Capacity: 5.5 kW
Heating Capacity KW: 3
Airflow: 1000 m³/h
Outdoor static pressure Pa: 50-200
Aircraft noise level dB: 50
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Voltage: AC 380V 50Hz
Total Input Power: 5 kW
Compressor Type: Panasonic Twin Rotor
Compressor Power: 1.5 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Moisture Output/Power: 2.5 Kg/Kw
Copper tube connecting pipe sizes: Liquid tube 10, steam tube 16
Dimensions (H*W*D) Ceiling Mount: 380*1060*570
Outdoor unit quantity: 1
Outdoor Unit Dimensions (H*W*D): 860*960*385
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Yinteng explosion-proof air conditioner with temperature and humidity control features the explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Yinteng explosion-proof constant temperature and humidity air conditioning series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety "i""
GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7°C to 43°C, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in Group II A, II B, and T1 to T4 categories.
The "Yingteng" explosion-proof, temperature and humidity control air conditioning series has been specially processed with explosion-proof technology, making it suitable for 1 and 2 zone flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, power plant, and other facilities where II A, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof temperature and humidity control air conditioners are suitable for spaces with temperature requirements. The Yingteng explosion-proof temperature and humidity control air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These units are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
Inten Explosion-proof Constant Temperature and Humidity Air Conditioner Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet exquisite frame structure, a dignified and generous appearance, seamlessly blending with the indoor environment; the controller's status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: Equipped with self-control components from European and American brands like DANFOSS, ALCOSPORLAN, the unit boasts stable quality and reliable performance. The control panels use electrical components from manufacturers like Schneider and OMRON. The unit is also configured with multiple protection devices including high/low pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.
Quiet Operation, Ultra-Low Noise: Equipped with the latest fully enclosed low-noise compressor, with minimal vibration and low noise; also, the compressor is externally mounted or equipped with a double-stage vibration reduction device, isolating it from the air handling system, ensuring noise does not interfere or overlap; additionally, the interior panels are lined with thermal and sound-absorbing foam; hence, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal threaded copper tubes and hydrophilic finned aluminum evaporator with open-window baffles, the heat transfer coefficient is 30% higher than that of conventional evaporators; Equipped with first-tier brand PLC control, featuring built-in PID analog quantity regulation, strong adaptability, and high control accuracy, achieving a temperature precision of ±1°C and humidity accuracy of ±3%; The PLC controller is equipped with multiple automatic control functions including fault diagnosis, energy control, and operation modes, ensuring the efficient operation of the unit.
