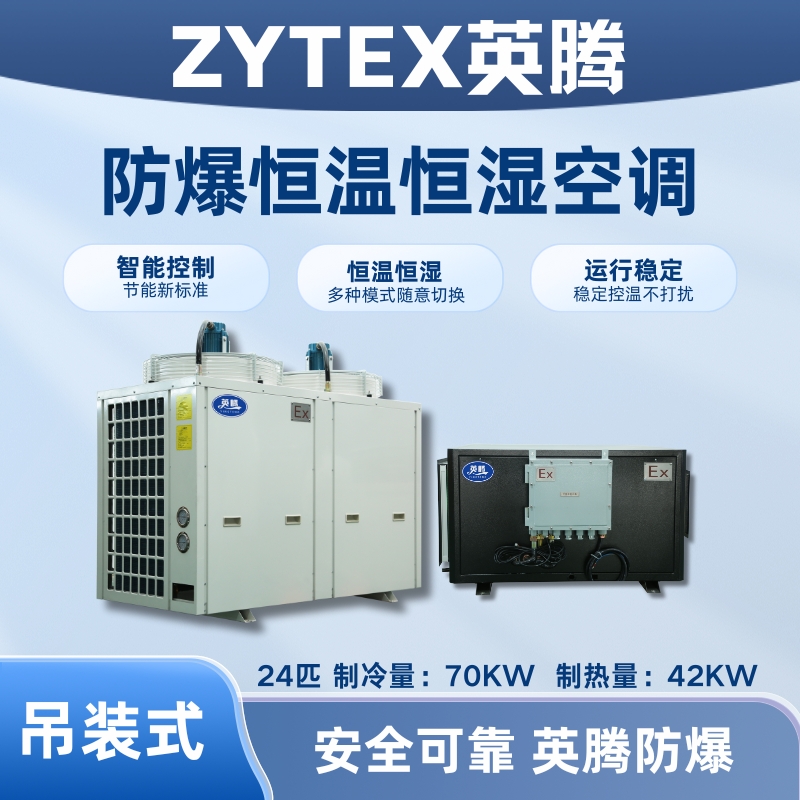

Yinteng Explosion-proof Constant Temperature and Humidity Air Conditioner for Lifting Equipment
Spec: 24 HP
Brand: YingTeng
Cooling Capacity: 70 kW
Heating Output: 42 kW
Airflow: 14,000 m³/h
Static wind pressure outside the machine: 50-200 Pa
Noise Level of Unit: 70 dB
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Total Input Power (KW): 56.5
Compressor Type: Panasonic Twin Rotor
Compressor Power: 9.5*2 KW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidifying Capacity/Power: 15/Kg, 11.2/Kw
Copper tube connecting pipe diameter: Liquid tube 15.88mm, Steam tube 19.05mm
Dimensions (H*W*D): Ceiling Mount MM: 1160*850*1500
Outdoor unit quantity: 2
Outdoor Unit Dimensions (H*W*D): 1100*1500*850 mm
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall be the standard.
Yinteng explosion-proof air conditioning with temperature and humidity control features the explosion-proof marking of Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb.
Yinteng explosion-proof temperature and humidity control air conditioner series products are in compliance with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Group II A, II B, T1 to T4.
The "YingTeng" explosion-proof, temperature, and humidity control air conditioning series has been specially processed with explosion-proof technology, making it suitable for 1 and 2 zones of flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant settings where II A, IIB, T1-T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. The explosion-proof temperature and humidity control air conditioners are ideal for areas with specific temperature requirements. The YingTeng explosion-proof temperature and humidity control air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof and CCC certificates issued. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion-proof Constant Temperature and Humidity Air Conditioner Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented cold-bridge prevention design, with a simple yet elegant frame structure, a dignified and generous appearance that seamlessly blends with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation straightforward and convenient.
Reliable performance, stable quality: The unit utilizes self-control components for refrigeration systems from European and American brands such as DANFOSS and ALCOSPORLAN, ensuring stable quality. The control units are equipped with electrical components from reputable manufacturers like Schneider and OMRON, guaranteeing reliable performance. The unit is also configured with multiple protection devices such as high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring the safe operation of the unit.
Quiet operation, ultra-low noise: Utilizes the latest fully enclosed low-noise compressor, with minimal vibration and low noise; the compressor is isolated from the air handling system with an external compressor or a dual-stage vibration reduction device, ensuring noise does not interfere or overlap; additionally, the interior wall panels are lined with insulating sound-absorbing foam; thus, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal-threaded copper tubes and hydrophilic louvered aluminum fin evaporators, the heat transfer coefficient is 30% higher than that of ordinary evaporators; equipped with top-brand PLC control, featuring built-in PID analog quantity regulation for strong adaptability and high control precision, achieving ±1°C temperature and ±3% relative humidity; the PLC controller is equipped with automatic control functions such as fault diagnosis, energy control, and operation mode, ensuring efficient operation of the unit.
