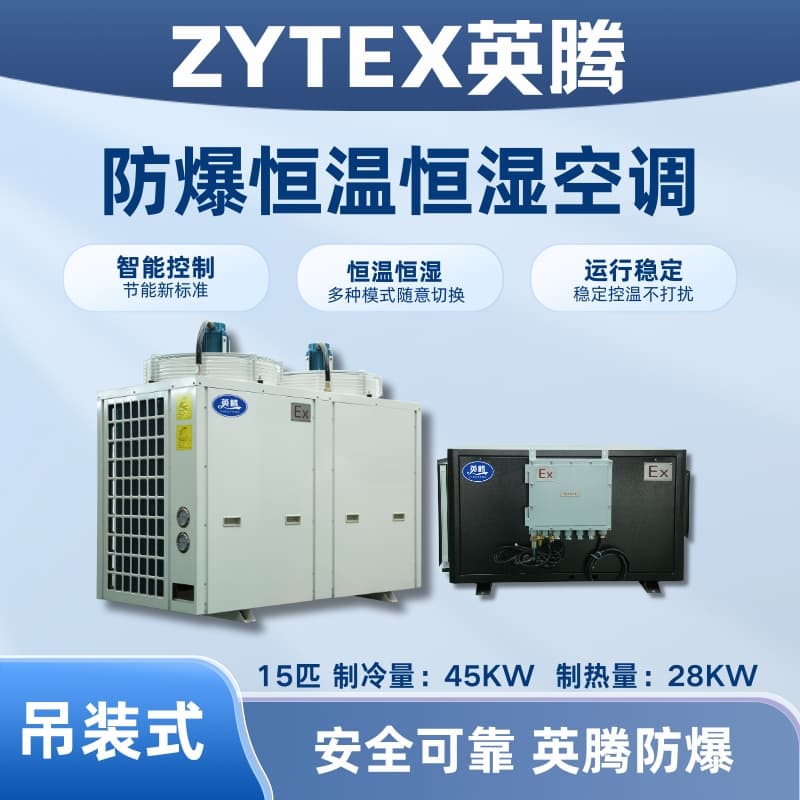

Yiting Explosion-proof Constant Temperature and Humidity Air Conditioner for Hoisting Equipment
Spec: 15 horsepower
Brand: Yingten
Cooling Capacity: 45 kW
Heating Capacity KW: 28
Airflow: 9,000 m³/h
Outdoor static pressure Pa: 50-200
Engine noise level dB: 65
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power KW: 39.5
Compressor Type: Panasonic Twin-Rotor
Compressor Power: 4.5*3 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidifying Capacity/Power: 12/Kg, 9/Kw
Copper tube union pipe diameter: Liquid tube 12, Steam tube 19
Dimensions (H*W*D) Ceiling Mount: 1160*850*1500 MM
Outdoor unit quantity: 3 units
Outdoor Unit Dimensions (H*W*D) MM: 1230*980*460
Explosion-proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
YingTeng explosion-proof constant temperature and humidity air conditioner, explosion-proof mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Yinteng explosion-proof constant temperature and humidity air conditioning series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety "i""
GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "Yingteng" explosion-proof, temperature and humidity control air conditioning series has been specially processed with explosion-proof technology and is widely applicable in flammable and explosive areas in Zones 1 and 2. It is suitable for scientific research, oil, chemical, pharmaceutical, power plant, and other places where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. The explosion-proof temperature and humidity control air conditioners are suitable for locations with temperature requirements. The Yingteng explosion-proof temperature and humidity control air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, with explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable construction, and easy installation and maintenance. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Yinteng Explosion-proof Constant Temperature and Humidity Air Conditioner Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet sophisticated frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modification, and fault inquiry all use Chinese prompt menus, making operation simple and convenient.
Reliable performance and stable quality: The unit employs self-control components from European and American brands like DANFOSS and ALCOSPORLAN, ensuring stable quality. The controllers use electrical components from manufacturers such as Schneider and OMRON, guaranteeing reliable performance. The unit is equipped with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.
Quiet Operation, Ultra-Low Noise: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; also utilizes an external compressor or dual-stage vibration damping device to isolate the compressor from the air handling system, ensuring noise does not interfere or overlap; in addition, the inner side of the panels is lined with thermal and sound-absorbing foam; thus, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic finned aluminum evaporators, the heat transfer coefficient is 30% higher than that of common evaporators; equipped with first-tier brand PLC control, featuring built-in PID analog quantity adjustment, strong adaptability, and high control accuracy, achieving a temperature accuracy of ±1°C and relative humidity accuracy of ±3%; the PLC controller is equipped with multiple automatic control functions such as fault diagnosis, energy control, and operating modes, ensuring the unit's efficient operation.
